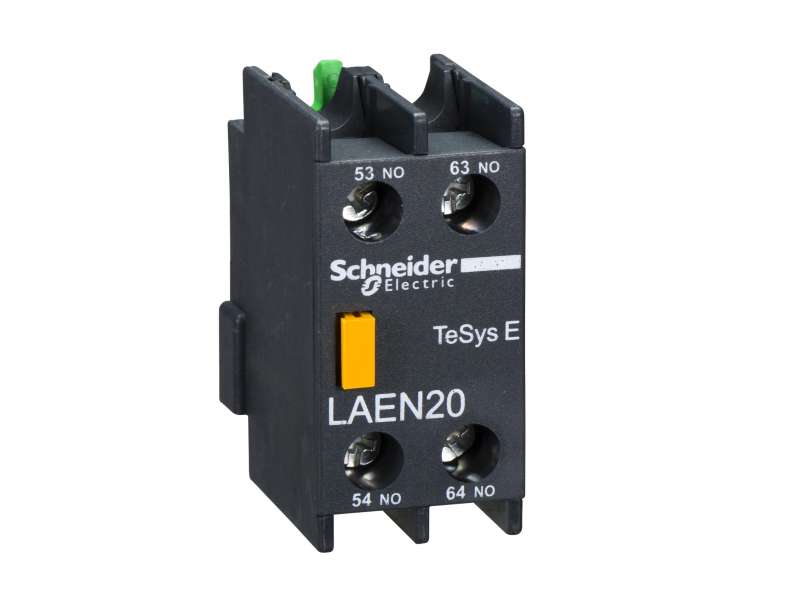

Schneider Electric EasyPact TVS - pomoćni kontaktni blok - 2 NO - vijčani priključci ; LAEN20
EasyPact TVS - auxiliary contact block - 2 NO - screw-clamps terminals...
VAT-exclusive price: 1.045,00 |
VAT-inclusive price: 1.254,00 |
EasyPact TVS - auxiliary contact block - 2 NO - screw-clamps terminals
| range | EasyPact |
|---|---|
| device short name | LAEN |
| product or component type | Auxiliary contact block |
| device application | Signalling |
| colour | Grey (RAL 7011) |
| range compatibility | EasyPact TVS LC1E |
|---|---|
| mounting location | Front |
| auxiliary contacts operation | Instantaneous |
| pole contact composition | 2 NO |
| [Ui] rated insulation voltage | 690 V - for control circuit conforming to IEC 60947-5-1 |
| [Ue] rated operational voltage | <= 690 V |
| [Ith] conventional free air thermal current | 8 A (at 60 °C) |
| Irms rated making capacity | 140 A AC conforming to IEC 60947-5-1 |
| [Icw] rated short-time withstand current |
100 A - 1 s 120 A - 500 ms 140 A - 100 ms |
| protection type | GG fuse 10 A |
| mechanical durability | 10 Mcycles |
| minimum switching current | 5 mA |
| minimum switching voltage | 17 V |
| non-overlap time |
1.5 ms on energisation no overlap between NC and NO contact 1.5 ms on de-energisation no overlap between NC and NO contact |
| insulation resistance | > 10 MOhm |
| connections - terminals |
Control circuit: screw clamp terminals 1 1 mm² - external diameter: 6 mm - cable stiffness: solid or flexible with cable end Control circuit: screw clamp terminals 1 1 mm² - external diameter: 6 mm - cable stiffness: solid or flexible without cable end Control circuit: screw clamp terminals 2 2.5 mm² - external diameter: 6 mm - cable stiffness: solid or flexible with cable end Control circuit: screw clamp terminals 2 2.5 mm² - external diameter: 6 mm - cable stiffness: solid or flexible without cable end |
| net weight | 0.035 kg |
| environmental characteristic | Standard environment |
|---|---|
| standards | IEC 60947-5-1 |
| product certifications | GOST |
| IP degree of protection | IP20 conforming to IEC 60529 |
| protective treatment | TH conforming to IEC 60068 |
| ambient air temperature for operation | -5…55 °C |
| ambient air temperature for storage | -60…80 °C |
| operating altitude | 3000 m without derating |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 34 g |
| Package 1 Height | 2.3 cm |
| Package 1 width | 3.6 cm |
| Package 1 Length | 4.8 cm |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 100 |
| Package 2 Weight | 3.855 kg |
| Package 2 Height | 15 cm |
| Package 2 width | 30 cm |
| Package 2 Length | 40 cm |
| REACh Regulation | REACh Declaration |
|---|---|
| REACh free of SVHC | Yes |
| EU RoHS Directive |
Compliant
EU RoHS Declaration |
| Toxic heavy metal free | Yes |
| Mercury free | Yes |
| RoHS exemption information | Yes |
| China RoHS Regulation |
China RoHS declaration
Pro-active China RoHS declaration (out of China RoHS legal scope)
|
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
