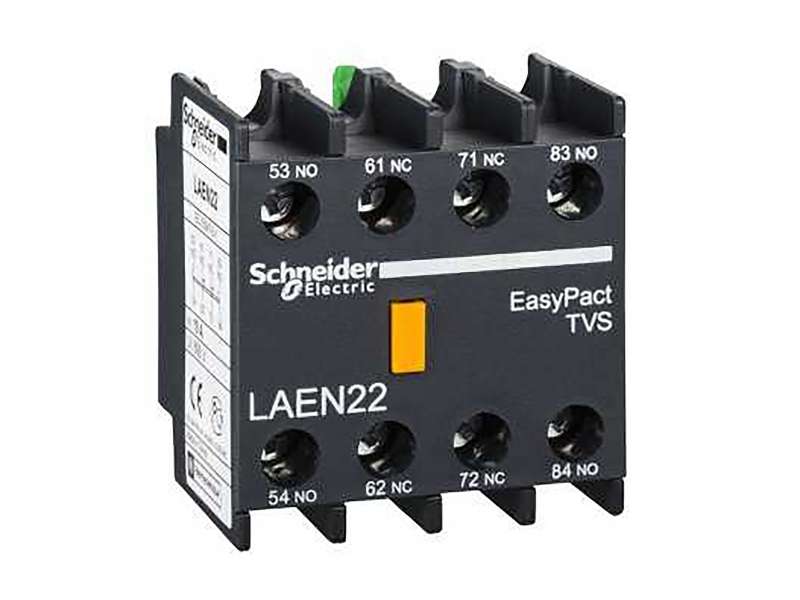

Schneider Electric EasyPact TVS - pomoćni kontaktni blok - 2 NO + 2 NC - vijčani priključci;LAEN22
EasyPact TVS - auxiliary contact block - 2 NO + 2 NC - screw-clamps terminals...
VAT-exclusive price: 1.959,00 |
VAT-inclusive price: 2.350,80 |
EasyPact TVS - auxiliary contact block - 2 NO + 2 NC - screw-clamps terminals
| range |
EasyPact
|
|
|---|---|---|
| device short name |
LAEN
|
|
| product or component type |
Auxiliary contact block
|
|
| device application |
Signalling
|
| range compatibility |
EasyPact TVS LC1E
|
|
|---|---|---|
| mounting location |
Front
|
|
| auxiliary contacts operation |
Instantaneous
|
|
| pole contact composition |
2 NO + 2 NC
|
|
| [Ui] rated insulation voltage |
690 V - for control circuit conforming to IEC 60947-5-1
|
|
| [Ue] rated operational voltage |
<= 690 V
|
|
| [Ith] conventional free air thermal current |
8 A (at 60 °C)
|
|
| Irms rated making capacity |
140 A AC conforming to IEC 60947-5-1
|
|
| [Icw] rated short-time withstand current |
100 A - 1 s
120 A - 500 ms 140 A - 100 ms |
|
| protection type |
GG fuse 10 A
|
|
| mechanical durability |
10 Mcycles
|
|
| minimum switching current |
5 mA
|
|
| minimum switching voltage |
17 V
|
|
| non-overlap time |
1.5 ms on energisation no overlap between NC and NO contact
1.5 ms on de-energisation no overlap between NC and NO contact |
|
| insulation resistance |
> 10 MOhm
|
|
| connections - terminals |
Control circuit: screw clamp terminals 1 1 mm² - external diameter: 6 mm - cable stiffness: solid or flexible with cable end
Control circuit: screw clamp terminals 1 1 mm² - external diameter: 6 mm - cable stiffness: solid or flexible without cable end Control circuit: screw clamp terminals 2 2.5 mm² - external diameter: 6 mm - cable stiffness: solid or flexible with cable end Control circuit: screw clamp terminals 2 2.5 mm² - external diameter: 6 mm - cable stiffness: solid or flexible without cable end |
|
| net weight |
0.06 kg
|
|
| colour |
Grey (RAL 7011)
|
| environmental characteristic |
Standard environment
|
|
|---|---|---|
| standards |
IEC 60947-5-1
|
|
| product certifications |
GOST
|
|
| IP degree of protection |
IP20 conforming to IEC 60529
|
|
| protective treatment |
TH conforming to IEC 60068
|
|
| ambient air temperature for operation |
-5…55 °C
|
|
| ambient air temperature for storage |
-60…80 °C
|
|
| operating altitude |
3000 m without derating
|
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
61 g
|
|
| Package 1 Height |
3.8 cm
|
|
| Package 1 width |
4.8 cm
|
|
| Package 1 Length |
4.8 cm
|
|
| Unit Type of Package 2 |
S02
|
|
| Number of Units in Package 2 |
72
|
|
| Package 2 Weight |
4.757 kg
|
|
| Package 2 Height |
15 cm
|
|
| Package 2 width |
30 cm
|
|
| Package 2 Length |
40 cm
|
| EU RoHS Directive |
|---|
-
EasyPact TVS kontaktori LAEN22
