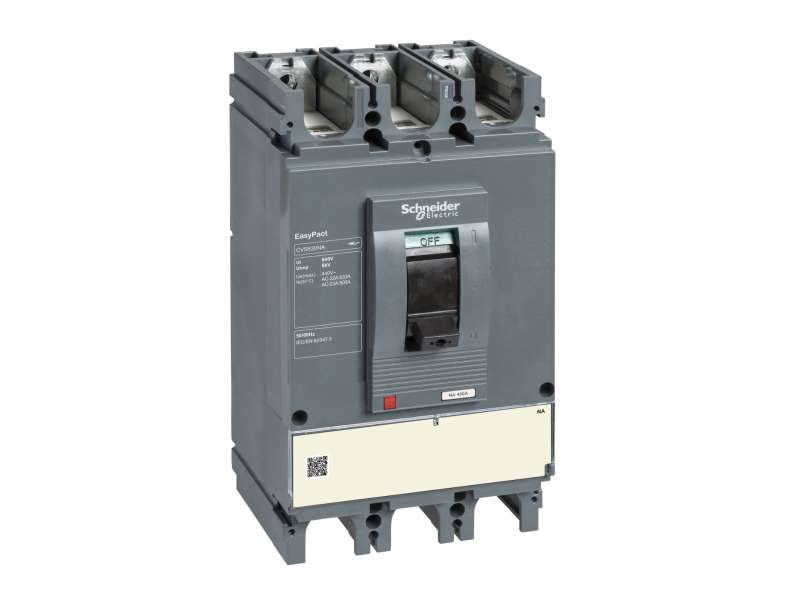

Schneider Electric Easypact CVS - CVS630NA rastavljač - 600 A - 3P;LV563400
Switch disconnector EasyPact CVS630NA, 3 poles, 630 A AC22A, 500 A AC23A...
VAT-exclusive price: 54.826,00 |
VAT-inclusive price: 65.791,20 |
Switch disconnector EasyPact CVS630NA, 3 poles, 630 A AC22A, 500 A AC23A
| range of product |
Easypact CVS400...630
|
|
|---|---|---|
| range |
EasyPact
|
|
| product name |
EasyPact CVS
|
|
| device short name |
CVS630NA
|
|
| product or component type |
Switch disconnector
|
|
| device application |
Distribution
|
|
| poles description |
3P
|
|
| network type |
AC
|
|
| [Ie] rated operational current |
AC-22A: 630 A AC 50/60 Hz 220/240 V
AC-22A: 630 A AC 50/60 Hz 380/415 V AC-22A: 630 A AC 50/60 Hz 440 V AC-23A: 500 A AC 50/60 Hz 220/240 V AC-23A: 500 A AC 50/60 Hz 380/415 V AC-23A: 500 A AC 50/60 Hz 440 V |
|
| [Ith] conventional free air thermal current |
600 A at 50 °C
|
|
| [Icm] rated short-circuit making capacity |
105 kA with upstream protection circuit breaker
8.5 kA switch-disconnector alone |
|
| breaking capacity code |
NA
|
|
| suitability for isolation |
Yes conforming to EN 60947-3
Yes conforming to IEC 60947-3 |
|
| utilisation category |
AC-22A
AC-23A |
|
| earth-leakage protection |
Without
|
| network frequency |
50/60 Hz
|
|
|---|---|---|
| control type |
Toggle
|
|
| mounting mode |
Fixed
|
|
| mounting support |
Backplate
|
|
| upside connection |
Front
|
|
| downside connection |
Front
|
|
| [Icw] rated short-time withstand current |
6 kA during 1 s conforming to IEC 60947-3
6 kA during 3 s conforming to IEC 60947-3 2.32 kA during 20 s conforming to IEC 60947-3 |
|
| contact position indicator |
Yes
|
|
| visible break |
No
|
|
| mechanical durability |
15000 cycles conforming to IEC 60947-3
|
|
| electrical durability |
AC-22A: 2500 cycles 415 V AC 50/60 Hz In conforming to IEC 60947-3
AC-23A: 2500 cycles 415 V AC 50/60 Hz In conforming to IEC 60947-3 |
|
| connection pitch |
45 mm
|
|
| height |
255 mm
|
|
| width |
140 mm
|
|
| depth |
110 mm
|
|
| net weight |
6.2 kg
|
| standards |
IEC 60947-3
EN 60947-3 |
|
|---|---|---|
| product certifications |
IEC
GOST |
|
| electrical shock protection class |
Class II
|
|
| pollution degree |
3 conforming to IEC 60664-1
|
|
| ambient air temperature for operation |
-25…70 °C
|
|
| ambient air temperature for storage |
-50…85 °C
|
| Package 1 Weight |
5.373 kg
|
|
|---|---|---|
| Package 1 Height |
1.500 dm
|
|
| Package 1 width |
1.550 dm
|
|
| Package 1 Length |
2.900 dm
|
| Sustainable offer status |
Green Premium product
|
|
|---|---|---|
| REACh Regulation |
-
EasyPact CVS LV563400
