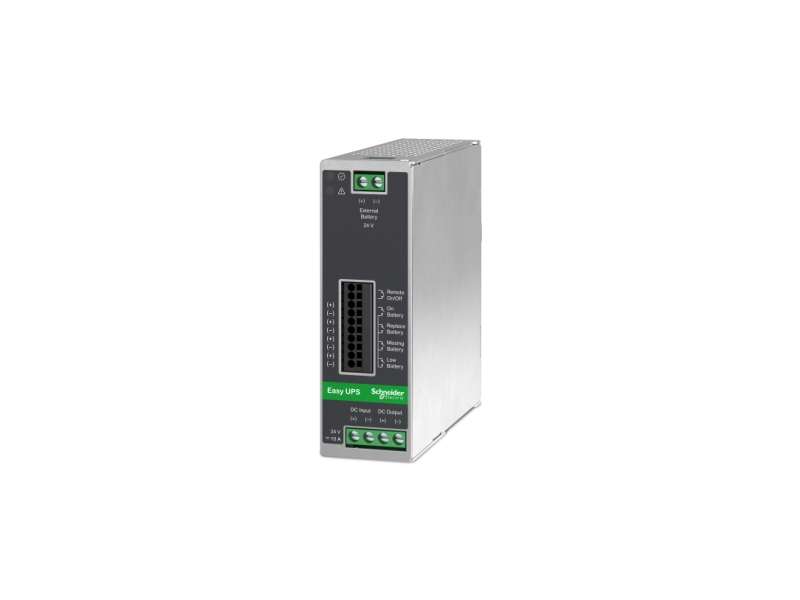

Schneider Electric Easy UPS control module, 24V DC-DC, DIN Rail, Industrial, 10A;BVS240XDPDR
Easy UPS control module, 24V DC-DC, DIN Rail, Industrial, 10A...
VAT-exclusive price: 20.573,88 |
VAT-inclusive price: 24.688,65 |
Easy UPS control module, 24V DC-DC, DIN Rail, Industrial, 10A
| Main Input Voltage | 24 V DC |
|---|---|
| product or component type | Uninterruptible power supply (UPS) |
| Main Output Voltage | 24 V DC |
| rated power in W | 240 W |
| connections - terminals | 1 2 pins |
| Number of power module | 1 |
|---|---|
| provided equipment | User manual |
| colour | Metal grey |
|---|---|
| height | 129 mm |
| width | 40 mm |
| depth | 119 mm |
| net weight | 0.5 kg |
| mounting mode | DIN rail mount |
| mounting position | Horizontal |
| number of input connectors | 1 terminal block 2-wire |
|---|---|
| input voltage limits | 21.6...28.8 V 24 V DC |
| maximum input current | 10 A |
| input protection type | Integrated fuse (not interchangeable) |
| Wave type | DC |
|---|---|
| efficiency | 95 % |
| maximum output current | 10 A |
| product certifications |
CE TÜV |
|---|---|
| standards |
UL 60950-1 IEC 62368-1 CSA-C22.2 No 62368-1-14 IEC 61010-1 |
| relative humidity | 0…95 % non-condensing |
|---|---|
| operating altitude | 0...3000 m |
| storage Relative Humidity | 0…95 % Non-condensing |
| storage altitude | 0…3000 m |
| acoustic level | 40 dB |
| IP degree of protection | IP20 |
| battery type | External battery system |
|---|---|
| battery voltage | 24 V |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 0.7 kg |
| Package 1 Height | 190 mm |
| Package 1 width | 57 mm |
| Package 1 Length | 188 mm |
| Warranty | 2 Years repair or replace |
|---|
| Main Input Voltage | 24 V DC |
|---|---|
| product or component type | Uninterruptible power supply (UPS) |
| Main Output Voltage | 24 V DC |
| rated power in W | 240 W |
| connections - terminals | 1 2 pins |
| Number of power module | 1 |
|---|---|
| provided equipment | User manual |
| colour | Metal grey |
|---|---|
| height | 129 mm |
| width | 40 mm |
| depth | 119 mm |
| net weight | 0.5 kg |
| mounting mode | DIN rail mount |
| mounting position | Horizontal |
| number of input connectors | 1 terminal block 2-wire |
|---|---|
| input voltage limits | 21.6...28.8 V 24 V DC |
| maximum input current | 10 A |
| input protection type | Integrated fuse (not interchangeable) |
| Wave type | DC |
|---|---|
| efficiency | 95 % |
| maximum output current | 10 A |
| product certifications |
CE TÜV |
|---|---|
| standards |
UL 60950-1 IEC 62368-1 CSA-C22.2 No 62368-1-14 IEC 61010-1 |
| relative humidity | 0…95 % non-condensing |
|---|---|
| operating altitude | 0...3000 m |
| storage Relative Humidity | 0…95 % Non-condensing |
| storage altitude | 0…3000 m |
| acoustic level | 40 dB |
| IP degree of protection | IP20 |
| battery type | External battery system |
|---|---|
| battery voltage | 24 V |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 0.7 kg |
| Package 1 Height | 190 mm |
| Package 1 width | 57 mm |
| Package 1 Length | 188 mm |
| Warranty | 2 Years repair or replace |
|---|
