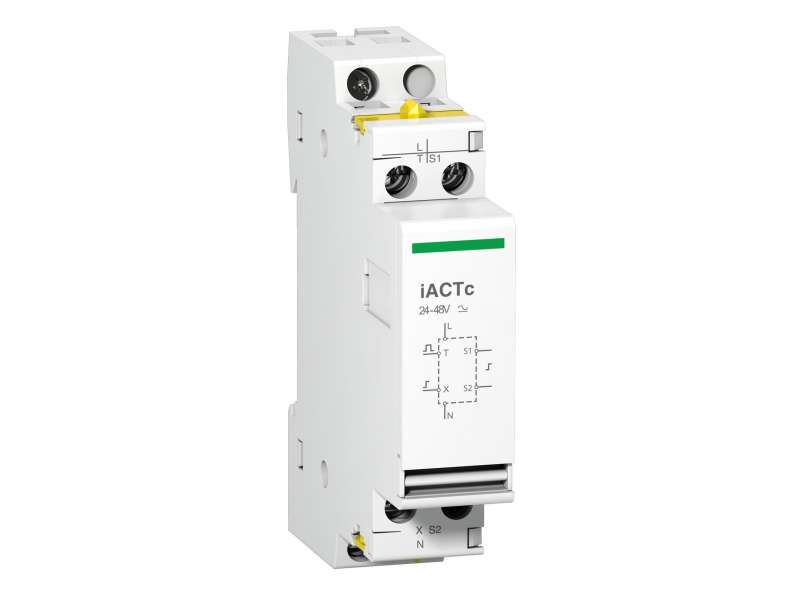

Schneider Electric Dvostruki upravljački ulaz iACTc 220...240 V AC; A9C18308
Acti9 double control input auxiliary iACTc 230...240 V AC...
VAT-exclusive price: 11.966,00 |
VAT-inclusive price: 14.359,20 |
Acti9 double control input auxiliary iACTc 230...240 V AC
| range |
Acti 9
|
|
|---|---|---|
| product or component type |
Double control input auxiliary
|
|
| device short name |
IACTc
|
|
| [Uc] control circuit voltage |
230...240 V AC 50/60 Hz impulse 250 ms
230...240 V AC 50/60 Hz maintained |
|
| [Us] rated supply voltage |
220...240 V AC at 50/60 Hz
|
| maximum output current |
0.2 A holding
2 A inrush |
|
|---|---|---|
| hold-in power consumption in VA |
3 VA
|
|
| mounting mode |
Fixed, on the left of CT
|
|
| mounting support |
DIN rail
|
|
| 9 mm pitches |
2
|
|
| height |
81 mm
|
|
| width |
18 mm
|
|
| depth |
60 mm
|
|
| colour |
White
|
|
| overvoltage category |
III
|
|
| [Uimp] rated impulse withstand voltage |
4 kV
|
|
| [Ui] rated insulation voltage |
440 V
|
|
| standards |
IEC/EN 61095
|
|
| connections - terminals |
Control circuit: tunnel type terminals 2 cable(s) 2.5 mm² flexible
Control circuit: tunnel type terminals 2 cable(s) 1.5 mm² rigid Control circuit: tunnel type terminals 1 cable(s) 1.5…2.5 mm² rigid Control circuit: tunnel type terminals 1 cable(s) 1.5…2.5 mm² flexible with ferrule Control circuit: yellow clips |
|
| wire stripping length |
9 mm
|
|
| tightening torque |
0.8 N.m
|
|
| range compatibility |
Acti9 iCT
|
|
| market segment |
Small commercial
Residential |
|
| compatibility code |
IACTc
|
| IP degree of protection |
IP20 conforming to IEC 60529
|
|
|---|---|---|
| ambient air temperature for operation |
-5…50 °C
|
|
| ambient air temperature for storage |
-40…70 °C
|
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
85.9 g
|
|
| Package 1 Height |
2.5 cm
|
|
| Package 1 width |
7.9 cm
|
|
| Package 1 Length |
9 cm
|
|
| Unit Type of Package 2 |
S01
|
|
| Number of Units in Package 2 |
24
|
|
| Package 2 Weight |
2.273 kg
|
|
| Package 2 Height |
15 cm
|
|
| Package 2 width |
15 cm
|
|
| Package 2 Length |
40 cm
|
| REACh Regulation | ||
|---|---|---|
| EU RoHS Directive |
Compliant
EU RoHS Declaration |
|
| Mercury free |
Yes
|
-
