Schneider Electric Dodatno postolje Š300 V100 mm Prisma G IP30; LVS08807

PLINTH RAISER W300 H100MM PRISMA G IP30...

Brand: Schneider Electric
Product Code: LVS08807
Availability: Check availability

VAT-exclusive price: 11.262,00

VAT-inclusive price: 13.514,40

Qnt:

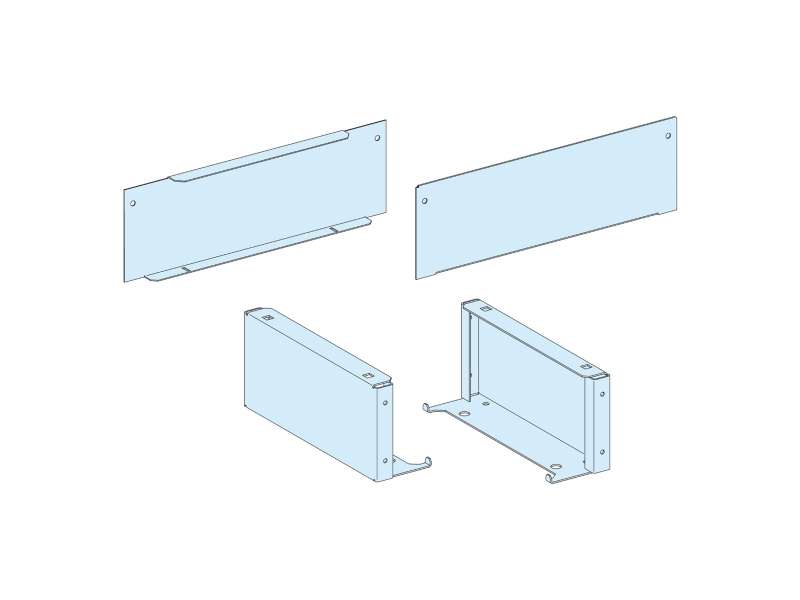

PLINTH RAISER W300 H100MM PRISMA G IP30

Main
Range	PrismaSeT
Range of product	PrismaSeT G
Product or component type	Plinth raiser
Range compatibility	PrismaSeT (PrismaSeT G) enclosure
Product compatibility	IP31 enclosure IP41 enclosure

Complementary
installation description	Floor-standing duct - width 300 mm
Quantity per set	Set of 1
Height	100 mm
Width	300 mm
Depth	260 mm
Net weight	1.44 kg
Surface finish	Matt Textured
Protective treatment	Electrophoresis treatment and hot-polymerised polyester epoxy powder
Colour	White (RAL 9003)

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	8 cm
Package 1 Width	12 cm
Package 1 Length	34 cm
Package 1 Weight	1.729 kg
Unit Type of Package 2	S04
Number of Units in Package 2	5
Package 2 Height	30 cm
Package 2 Width	40 cm
Package 2 Length	60 cm
Package 2 Weight	9.345 kg
Unit Type of Package 3	P12
Number of Units in Package 3	40
Package 3 Height	75 cm
Package 3 Width	80 cm
Package 3 Length	120 cm
Package 3 Weight	86.76 kg
