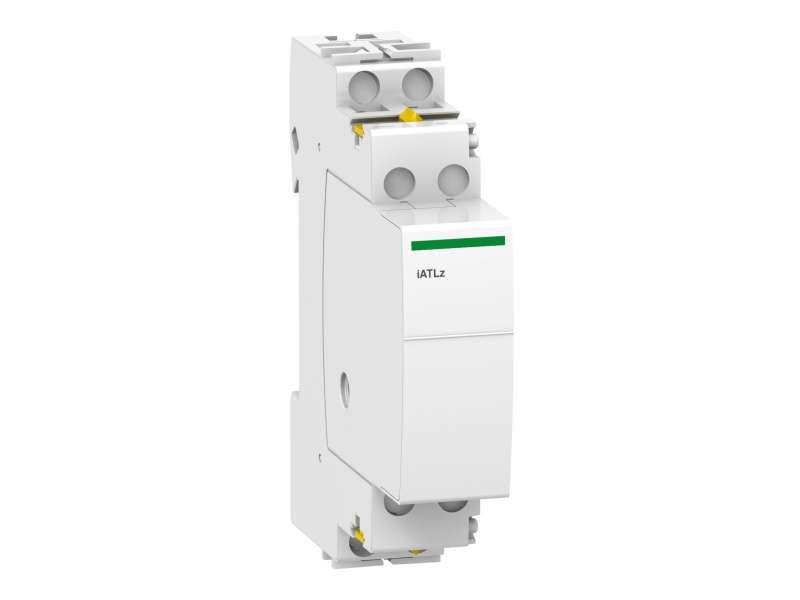

Schneider Electric Dodatni modul impulsnog releja - povezivanje sa svetlećim tasterom iATLz; A9C15413
Acti9 control by illuminated push-buttons iATLz...
VAT-exclusive price: 1.674,00 |
VAT-inclusive price: 2.008,80 |
Acti9 control by illuminated push-buttons iATLz
| range of product | Acti9 |
|---|---|
| Device short name | IATLz |
| Product or component type | Impedance adaptation auxiliary |
| [Uc] control circuit voltage | 130...240 V AC 50/60 Hz |
| [Ui] rated insulation voltage | 440 V |
|---|---|
| [Uimp] rated impulse withstand voltage | 4 kV |
| Remote control type | Illuminated push-button 3 mA |
| Mounting mode | Fixed, on left side of TL |
| Mounting support | DIN rail |
| 9 mm pitches | 2 |
| Height | 86 mm |
| Width | 18 mm |
| Depth | 71 mm |
| Colour | White |
| Connections - terminals |
Tunnel type terminals0.5…4 mm² - rigid Tunnel type terminals0.5…4 mm² - rigid - with cable end Tunnel type terminals1…4 mm² - flexible Tunnel type terminals1…4 mm² - flexible - with cable end |
| Wire stripping length | 11 mm |
| Tightening torque | 1 N.m |
| Range compatibility |
Acti 9 (Acti9 iTL) iTL Acti 9 (Acti9 iTL) iTLi Acti 9 (Acti9 iTL) iTLs Acti 9 (Acti9 iTL) iTLc |
| Product compatibility |
ITL (32 A) ITL (16 A) |
| Overvoltage category | III |
|---|---|
| IP degree of protection | IP20 conforming to IEC 60529 |
| Tropicalisation | 2 |
| Relative humidity | 95 % at 55 °C |
| Ambient air temperature for operation | -20…50 °C |
| Ambient air temperature for storage | -40…70 °C |
| Standards | EN/IEC 60669-2-2 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 8.000 cm |
| Package 1 Width | 1.800 cm |
| Package 1 Length | 9.000 cm |
| Package 1 Weight | 94.000 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 12 |
| Package 2 Height | 8.500 cm |
| Package 2 Width | 9.200 cm |
| Package 2 Length | 23.000 cm |
| Package 2 Weight | 1.173 kg |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 72 |
| Package 3 Height | 30.000 cm |
| Package 3 Width | 30.000 cm |
| Package 3 Length | 40.000 cm |
| Package 3 Weight | 7.458 kg |
| Warranty | 18 months |
|---|
-
Acti 9 iTL A9C15413
