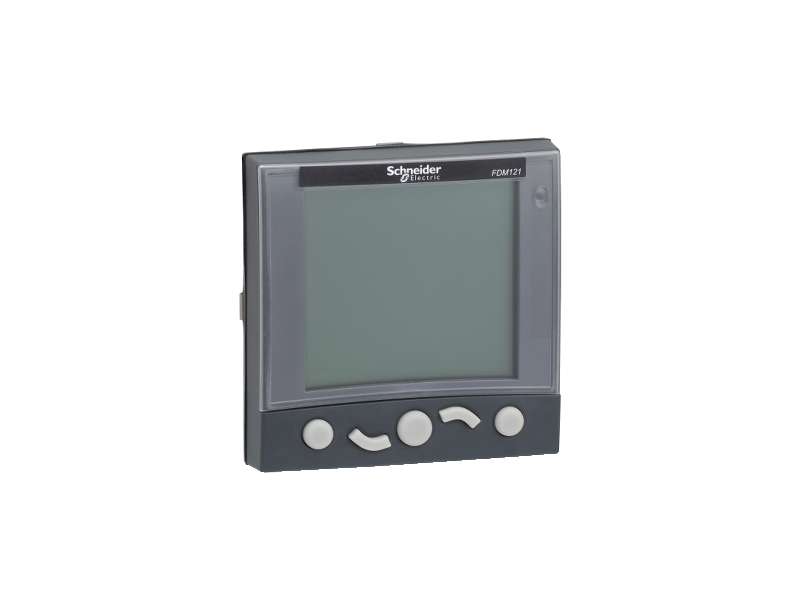

Schneider Electric Displej za vrata - FDM 121 - 96 x 96 mm - IP54;TRV00121
switchboard display module FDM 121, 1 connected device, screen 96 x 96 mm, IP54 on front face...
VAT-exclusive price: 21.358,00 |
VAT-inclusive price: 25.629,60 |
switchboard display module FDM 121, 1 connected device, screen 96 x 96 mm, IP54 on front face
| device short name | FDM121 |
|---|---|
| product or component type | Display module |
| accessory / separate part category | Display and signalling accessory |
| range compatibility |
MasterPact NW MasterPact NT ComPact NSX ComPact NS630b...1600 ComPact NS1600b...3200 PowerPact H PowerPact J PowerPact L PowerPact P PowerPact R |
| product name | Enerlin'X FDM |
| function of module |
Remote control View network Metering Display alarm |
| control type | Remote control |
|---|---|
| mounting mode | Flush mounting |
| mounting support |
Surface mount with kit Door cut-out |
| display type | LCD screen with white backlighting |
| display resolution | 128 x 128 pixels |
| view angle horizontal x vertical | 60 x 30° |
| [Us] rated supply voltage | 24 V DC - 20...10 % |
| current consumption | 21 mA |
| standards |
CE CSA UL |
| height | 96 mm |
| width | 96 mm |
| depth | 33.6 mm |
| accessory / separate part category |
Spare part for ComPact NS630b...1600 Spare part for ComPact NS1600b...3200 |
| IP degree of protection | IP53 front face: |
|---|---|
| ambient air temperature for operation | -10…55 °C |
| ambient air temperature for storage | -40…85 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 244.5 g |
| Package 1 Height | 5.803 cm |
| Package 1 width | 10.275 cm |
| Package 1 Length | 10.375 cm |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 34 |
| Package 2 Weight | 8967.0 g |
| Package 2 Height | 30 cm |
| Package 2 width | 30 cm |
| Package 2 Length | 40 cm |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 816 |
| Package 3 Weight | 224208.0 g |
| Package 3 Height | 95 cm |
| Package 3 width | 80 cm |
| Package 3 Length | 120 cm |
| Warranty | 18 months |
|---|
