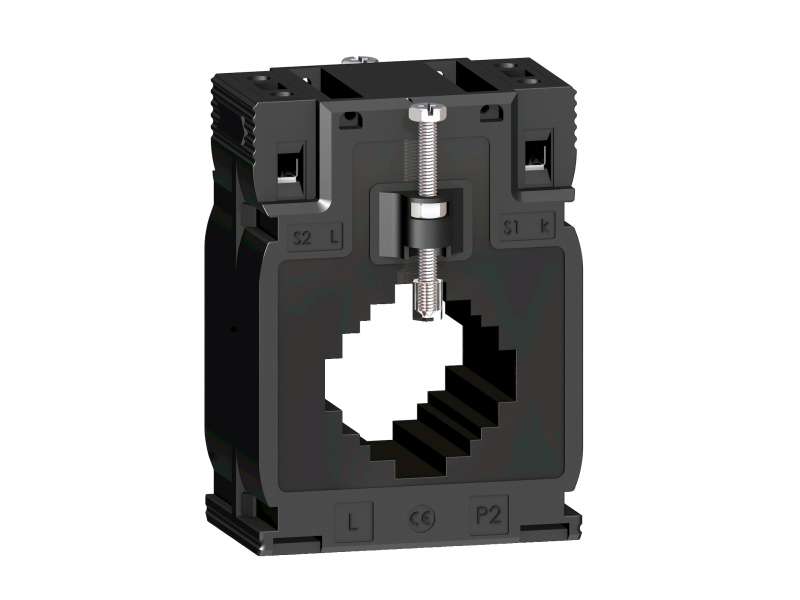

Schneider Electric Current transformer tropicalised DIN mount 600 5 for bars 10x40 20x32 25x25
current transformer tropicalised DIN mount 600 5 for bars 10x40 20x32 25x25...
VAT-exclusive price: 8.918,00 |
VAT-inclusive price: 10.701,60 |
current transformer tropicalised DIN mount 600 5 for bars 10x40 20x32 25x25
| range | PowerLogic |
|---|---|
| product name | CT |
| Product or component type | Current transformer |
| secondary current | 5 A |
| accuracy class |
Class 0.5 at 12 VA Class 1 at 15 VA |
| [In] rated current | 600 A |
| current transformer type | Tropicalised for busbar and cable |
|---|---|
| current transformer ratio | 600/5 |
| [Ith] conventional free air thermal current | 36 kA |
| dynamic withstand current | 2.5 Ith |
| maximum safety factor | 5 |
| [Ue] rated operational voltage | < 720 V AC 50/60 Hz |
| [Ui] rated insulation voltage | 3 kV |
| Mounting mode |
By screws Clip-on Insulated locking screw |
| Mounting support |
DIN rail Mounting plate Busbar |
| width |
70 mm outside: 41 mm inner: |
| height |
95 mm outside: 41 mm inner: |
| depth |
45 mm frame: 65 mm total: |
| diameter | 32 mm |
| Net weight | 0.449 kg |
| [Uimp] rated impulse withstand voltage | 3 kV |
| Electrical insulation class | Class B |
| cable outer diameter | 32 mm |
| opening of bars |
32.5 x 20.5 25.5 x 25.5 40.5 x 10.5 |
| sealing | Without |
| standards |
VDE 0414 IEC 61869-2 |
|---|---|
| Product certifications |
CE EAC |
| IP degree of protection | IP20 |
| relative humidity | 0…95 % |
| Ambient air temperature for operation | -25…60 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 435 g |
| Package 1 Height | 7 cm |
| Package 1 width | 9 cm |
| Package 1 Length | 11.5 cm |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 33 |
| Package 2 Weight | 14.842 kg |
| Package 2 Height | 30 cm |
| Package 2 width | 30 cm |
| Package 2 Length | 40 cm |
| EU RoHS Directive |
Compliant
EU RoHS Declaration |
|---|---|
| China RoHS Regulation |
China RoHS declaration
Product out of China RoHS scope. Substance declaration for your information
|
| Environmental Disclosure | Product Environmental Profile |
| Circularity Profile | End of Life Information |
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
-
