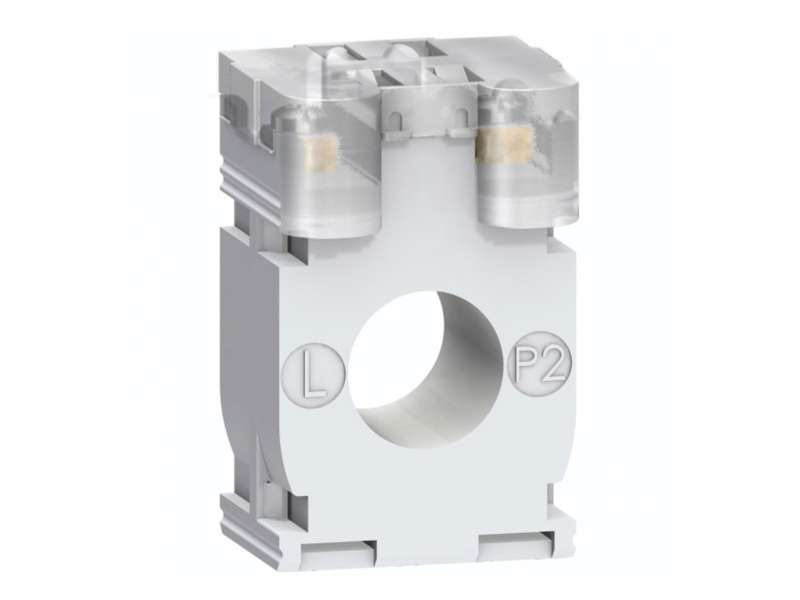

Schneider Electric Current transformer tropicalised DIN mount 40 5 for cables d. 21
current transformer tropicalised DIN mount 40 5 for cables d. 21...
VAT-exclusive price: 4.699,00 |
VAT-inclusive price: 5.638,80 |
current transformer tropicalised DIN mount 40 5 for cables d. 21
| range | PowerLogic |
|---|---|
| product name | CT |
| Product or component type | Current transformer |
| secondary current | 5 A |
| accuracy class | Class 3 at 1 VA |
| [In] rated current | 40 A |
| current transformer type | Tropicalised for cable |
|---|---|
| current transformer ratio | 40/5 |
| [Ith] conventional free air thermal current | 2.4 kA |
| dynamic withstand current | 2.5 Ith |
| maximum safety factor | 5 |
| [Ue] rated operational voltage | < 720 V AC 50/60 Hz |
| [Ui] rated insulation voltage | 3 kV |
| Mounting mode |
By screws Clip-on |
| Mounting support |
Mounting plate DIN rail |
| width | 44 mm outside: |
| height | 65 mm outside: |
| depth |
30 mm frame: 37 mm total: |
| diameter | 21 mm |
| Net weight | 0.19 kg |
| [Uimp] rated impulse withstand voltage | 3 kV |
| Electrical insulation class | Class B |
| cable outer diameter | 21 mm |
| sealing | With |
| standards |
VDE 0414 IEC 61869-2 |
|---|---|
| Product certifications | CE |
| IP degree of protection | IP20 |
| relative humidity | 0…95 % |
| Ambient air temperature for operation | -25…60 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 194 g |
| Package 1 Height | 5.5 cm |
| Package 1 width | 5.5 cm |
| Package 1 Length | 8.2 cm |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 90 |
| Package 2 Weight | 17.947 kg |
| Package 2 Height | 30 cm |
| Package 2 width | 30 cm |
| Package 2 Length | 40 cm |
| EU RoHS Directive |
Compliant
EU RoHS Declaration |
|---|---|
| China RoHS Regulation |
China RoHS declaration
Product out of China RoHS scope. Substance declaration for your information
|
| Environmental Disclosure | Product Environmental Profile |
| Circularity Profile | End of Life Information |
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
-
Acti 9 iEM3000 METSECT5CC004
