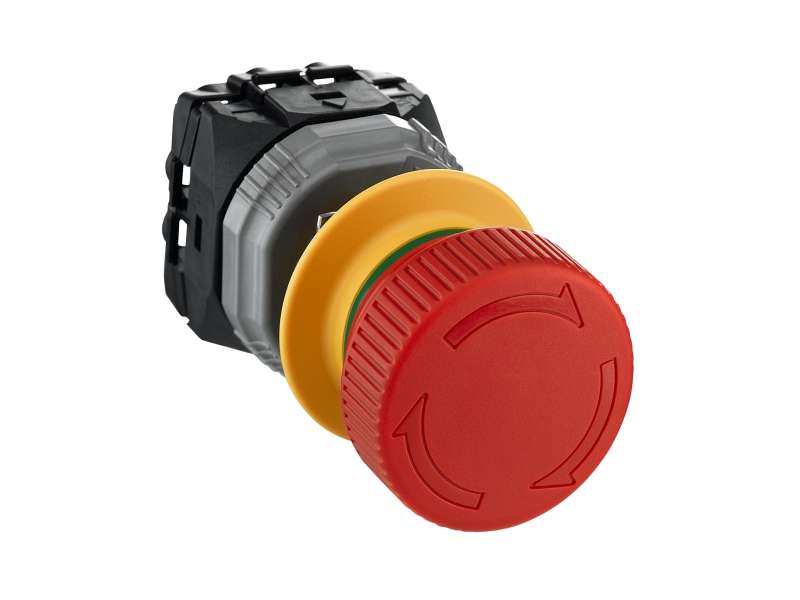

Schneider Electric Crveni Ø40 taster nužnog isključ. otpušt. zakretanjem 2NC 1NO nadzor kontakta;XB5AS84449
Emergency stop , plastic, red mushroom Ø40, Ø22, trigger latching turn to release, monitoring contact, 1 NO + 2 NC...
VAT-exclusive price: 10.567,00 |
VAT-inclusive price: 12.680,40 |
Emergency stop , plastic, red mushroom Ø40, Ø22, trigger latching turn to release, monitoring contact, 1 NO + 2 NC
| range of product |
Harmony XB5
|
|
|---|---|---|
| product or component type |
Emergency stop push-button
|
|
| device short name |
XB5
|
|
| bezel material |
Plastic
|
|
| fixing collar material |
Plastic
|
|
| head type |
Standard
|
|
| mounting diameter |
22 mm
|
|
| sale per indivisible quantity |
1
|
|
| shape of signaling unit head |
Round
|
|
| type of operator |
trigger action and mechanical latching with mechanical state indicator
|
|
| reset |
Push-pull
Turn to release |
|
| operator profile |
Red mushroom Ø 40 mm, unmarked
|
|
| contacts type and composition |
1 NO + 2 NC
|
|
| contact operation |
Slow-break
|
|
| connections - terminals |
Screw clamp terminals, <= 1.25 mm² with cable end conforming to EN/IEC 60947-1
Screw clamp terminals, <= 1.25 mm² without cable end conforming to EN/IEC 60947-1 |
|
| device presentation |
Complete product
|
| height |
42 mm
|
|
|---|---|---|
| width |
42 mm
|
|
| depth |
79.5 mm
|
|
| terminals description ISO n°1 |
(13-14)NO
(21-22)NC (11-12)NC |
|
| net weight |
0.0905 kg
|
|
| contacts usage |
Monitoring contact
|
|
| positive opening |
With conforming to EN/IEC 60947-5-1 appendix K
|
|
| mechanical durability |
100000 cycles
|
|
| tightening torque |
0.8…1.5 N.m conforming to EN/IEC 60947-1
|
|
| shape of screw head |
Slotted compatible with flat Ø 5.5 mm screwdriver
Cross compatible with JIS No 2 screwdriver Cross compatible with Philips No 2 screwdriver |
|
| contacts material |
Silver alloy - gold plated (Ag/Cu)
|
|
| short-circuit protection |
10 A cartridge fuse type gG conforming to EN/IEC 60947-5
|
|
| [Ith] conventional free air thermal current |
5 A conforming to EN/IEC 60947-5-1
|
|
| [Ui] rated insulation voltage |
250 V (pollution degree 2) conforming to IEC 61140
|
|
| [Uimp] rated impulse withstand voltage |
2.5 kV EN/IEC 60947-1
|
|
| [Ie] rated operational current |
1.5 A at 240 V, AC-15, B300 conforming to EN/IEC 60947-5-1
3 A at 120 V, AC-15, B300 conforming to EN/IEC 60947-5-1 0.1 A at 250 V, DC-13, R300 conforming to EN/IEC 60947-5-1 0.22 A at 125 V, DC-13, R300 conforming to EN/IEC 60947-5-1 |
|
| electrical durability |
100000 cycles, AC-15, 1.5 A at 240 V, operating rate <1800 cyc/h, load factor: 0.4 conforming to EN/IEC 60947-5-1 appendix C
100000 cycles, AC-15, 3 A at 120 V, operating rate <1800 cyc/h, load factor: 0.4 conforming to EN/IEC 60947-5-1 appendix C 100000 cycles, DC-13, 0.1 A at 250 V, operating rate <1800 cyc/h, load factor: 0.4 conforming to EN/IEC 60947-5-1 appendix C 100000 cycles, DC-13, 0.22 A at 125 V, operating rate <1800 cyc/h, load factor: 0.4 conforming to EN/IEC 60947-5-1 appendix C |
| ambient air temperature for storage |
-40…80 °C
|
|
|---|---|---|
| ambient air temperature for operation |
-20…60 °C
|
|
| overvoltage category |
Class II conforming to IEC 61140
|
|
| IP degree of protection |
IP65 (front face) conforming to IEC 60529
IP2x (back face) |
|
| standards |
EN/IEC 60947-5-1
CSA C22.2 No 14 UL 508 JIS C8201-5-1 EN/IEC 60947-5-5 EN/IEC 60204-1 EN/IEC 60947-1 EN/ISO 13850 JIS C8201-1 |
|
| product certifications |
CSA
UL listed |
|
| vibration resistance |
50 m/s² (f= 10…500 Hz) conforming to IEC 60068-2-6
|
|
| shock resistance |
150 m/s² (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
|
| Package 1 Weight |
0.120 kg
|
|---|
-
Harmony XB5 XB5AS84449
