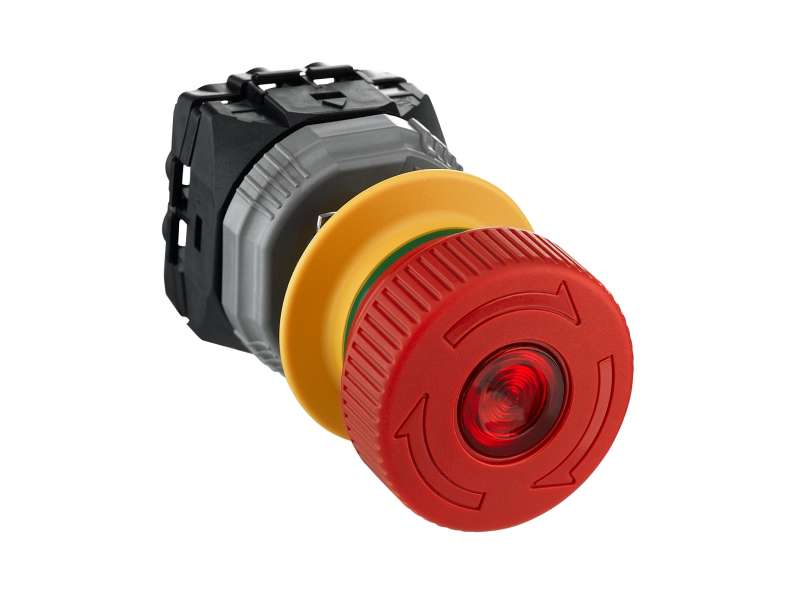

Schneider Electric Crveni Ø40 svetleći taster nužnog isklj. otpušt. zakret. 2NC 1NO nadzor kontakta;XB5AS86449B4
Illuminated emergency stop, plastic, red mushroom Ø40, Ø22, trigger latching turn to release, 24 V DC, 1 NO + 2 NC,...
VAT-exclusive price: 12.675,00 |
VAT-inclusive price: 15.210,00 |
Illuminated emergency stop, plastic, red mushroom Ø40, Ø22, trigger latching turn to release, 24 V DC, 1 NO + 2 NC,
| range of product |
Harmony XB5
|
|
|---|---|---|
| product or component type |
Illuminated emergency stop push-button
|
|
| device short name |
XB5
|
|
| bezel material |
Plastic
|
|
| fixing collar material |
Plastic
|
|
| head type |
Standard
|
|
| mounting diameter |
22 mm
|
|
| sale per indivisible quantity |
1
|
|
| local signalling |
1 red LED 24 V DC, current consumption: 7.5 mA
|
|
| light source |
LED
|
|
| [Us] rated supply voltage |
21.6...26.4 V
|
|
| light source colour |
Red
|
|
| service life in hours |
30000 h at 25 °C
|
|
| shape of signaling unit head |
Round
|
|
| type of operator |
trigger action and mechanical latching with mechanical state indicator
|
|
| reset |
Turn to release
|
|
| operator profile |
Red mushroom Ø 40 mm, unmarked
|
|
| contacts type and composition |
1 NO + 2 NC
|
|
| contact operation |
Slow-break
|
|
| connections - terminals |
Screw clamp terminals, <= 1.25 mm² with cable end conforming to EN/IEC 60947-1
Screw clamp terminals, <= 1.25 mm² without cable end conforming to EN/IEC 60947-1 |
|
| device presentation |
Complete product
|
| [Us] rated supply voltage |
24 V DC at 50 Hz
|
|
|---|---|---|
| supply voltage limits |
21.6…26.4 V DC
|
|
| height |
42 mm
|
|
| width |
42 mm
|
|
| depth |
79.5 mm
|
|
| terminals description ISO n°1 |
(21-22)NC
(11-12)NC (13-14)NO |
|
| net weight |
0.094 kg
|
|
| contacts usage |
Monitoring contact
|
|
| positive opening |
With conforming to EN/IEC 60947-5-1 appendix K
|
|
| mechanical durability |
100000 cycles
|
|
| tightening torque |
0.8…1.5 N.m conforming to EN/IEC 60947-1
|
|
| shape of screw head |
Slotted compatible with flat Ø 5.5 mm screwdriver
Cross compatible with JIS No 2 screwdriver Cross compatible with Philips No 2 screwdriver |
|
| contacts material |
Silver alloy - gold plated (Ag/Cu)
|
|
| short-circuit protection |
10 A cartridge fuse type gG conforming to EN/IEC 60947-5
|
|
| [Ith] conventional free air thermal current |
5 A conforming to EN/IEC 60947-5-1
|
|
| [Ui] rated insulation voltage |
250 V (pollution degree 2) conforming to IEC 61140
|
|
| [Uimp] rated impulse withstand voltage |
EN/IEC 60947-1 2.5 kV
|
|
| [Ie] rated operational current |
1.5 A at 240 V, AC-15, B300 conforming to EN/IEC 60947-5-1
3 A at 120 V, AC-15, B300 conforming to EN/IEC 60947-5-1 0.1 A at 250 V, DC-13, R300 conforming to EN/IEC 60947-5-1 0.22 A at 125 V, DC-13, R300 conforming to EN/IEC 60947-5-1 |
|
| electrical durability |
100000 cycles, AC-15, 1.5 A at 240 V, operating rate <1800 cyc/h, load factor: 0.4 conforming to EN/IEC 60947-5-1 appendix C
100000 cycles, AC-15, 3 A at 120 V, operating rate <1800 cyc/h, load factor: 0.4 conforming to EN/IEC 60947-5-1 appendix C 100000 cycles, DC-13, 0.1 A at 250 V, operating rate <1800 cyc/h, load factor: 0.4 conforming to EN/IEC 60947-5-1 appendix C 100000 cycles, DC-13, 0.22 A at 125 V, operating rate <1800 cyc/h, load factor: 0.4 conforming to EN/IEC 60947-5-1 appendix C |
| ambient air temperature for storage |
-40…80 °C
|
|
|---|---|---|
| ambient air temperature for operation |
-20…50 °C
|
|
| overvoltage category |
Class II conforming to IEC 61140
|
|
-
Harmony XB5 XB5AS86449B4
