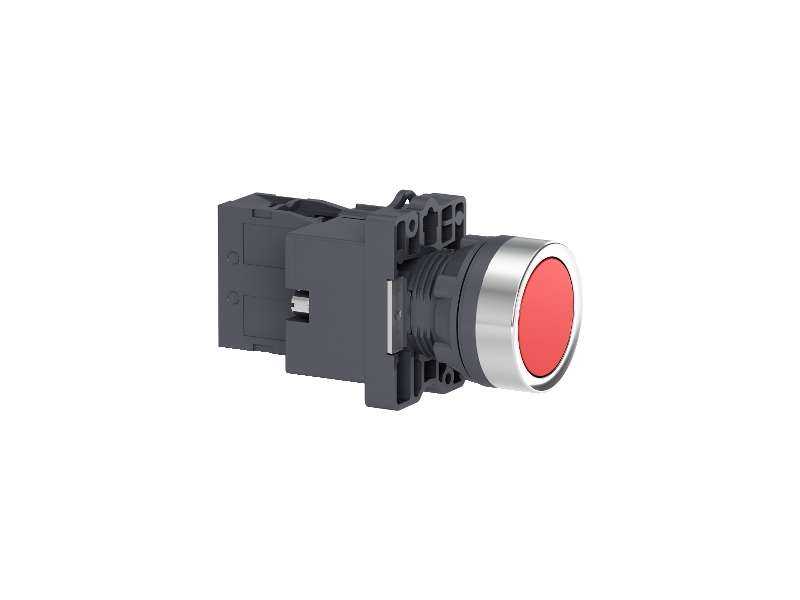

Schneider Electric Crveni kompletni svetleći taster - Ø22 - udubljeni - 24V AC/DC - 1NO;XA2EW34B1

Complete illuminated push button, Easy Harmony XA2, plastic, flush, red, 22mm, spring return, 24V AC/DC, 1NO...

Brand: Schneider Electric
Product Code: XA2EW34B1
Availability: Check availability

VAT-exclusive price: 639,00

VAT-inclusive price: 766,80

Qnt:

Description
Specification

Complete illuminated push button, Easy Harmony XA2, plastic, flush, red, 22mm, spring return, 24V AC/DC, 1NO

Main
range of product	Easy Harmony XA2
product or component type	Complete illuminated push-button
device short name	XA2
bezel material	Plastic
mounting diameter	22 mm

Complementary
sale per indivisible quantity	1
protective treatment	TC
operating position	Any position
fixing center	>= 30 x 40 mm (panel) - thickness: 1…5 mm
fixing mode	Fixing nut recommended torque: 2.2 N.m (Us +/- 10 %)
shape of signaling unit head	Round
type of operator	Spring return
operator profile	Red flush
contacts type and composition	1 NO
contact operation	Slow-break
mechanical durability	1500000 cycles
connections - terminals	Screw clamp terminals, clamping capacity: 2 x 1.5 mm² Screw clamp terminals, clamping capacity: 1 x 2.5 mm² Faston terminals, connection size: 6.3 mm Screw clamp terminals, clamping capacity: 1 x 0.5 mm²
tightening torque	0.8 N.m
short-circuit protection	10 A gL fuse conforming to IEC 60269-1
[Ith] conventional free air thermal current	10 A
[Ui] rated insulation voltage	600 V conforming to IEC 60947-4-1
[Uimp] rated impulse withstand voltage	6 kV conforming to IEC 60947-1
[Ie] rated operational current	0.27 A at 250 V, DC-13, Q600 3 A at 240 V, AC-15, A600
electrical durability	500000 cycles, DC-13, 0.2 A at 110 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-4 500000 cycles, DC-13, 3 A at 230 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-4
signalling type	Steady
light source	LED
bulb base	BA 9s
[Us] rated supply voltage	24 V AC/DC 50/60 Hz
supply voltage limits	19…26 V AC/DC
current consumption	< 20 mA
service life	10000 h
width	30 mm
height	42 mm
depth	74.5 mm
net weight	0.056 kg

Environment
ambient air temperature for storage	-40…70 °C
ambient air temperature for operation	-25…55 °C
overvoltage category	Class I conforming to IEC 536
IP degree of protection	IP65
IK degree of protection	IK03 conforming to IEC 60529
standards	GB 14048.1 IEC 60947-5-1 IEC 60947-1 GB 14048.5
product certifications	CCC CE
vibration resistance	10 gn (f= 40…500 Hz) conforming to IEC 60068-2-6
shock resistance	70 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Weight	60 g
Package 1 Height	4 cm
Package 1 width	11 cm
Package 1 Length	16 cm
Unit Type of Package 2	BB1
Number of Units in Package 2	10
Package 2 Weight	600 g
Package 2 Height	40 cm
Package 2 width	160 cm
Package 2 Length	110 cm
Unit Type of Package 3	BB2
Number of Units in Package 3	10
Package 3 Weight	600 g
Package 3 Height	4 cm
Package 3 width	16 cm
Package 3 Length	11 cm
