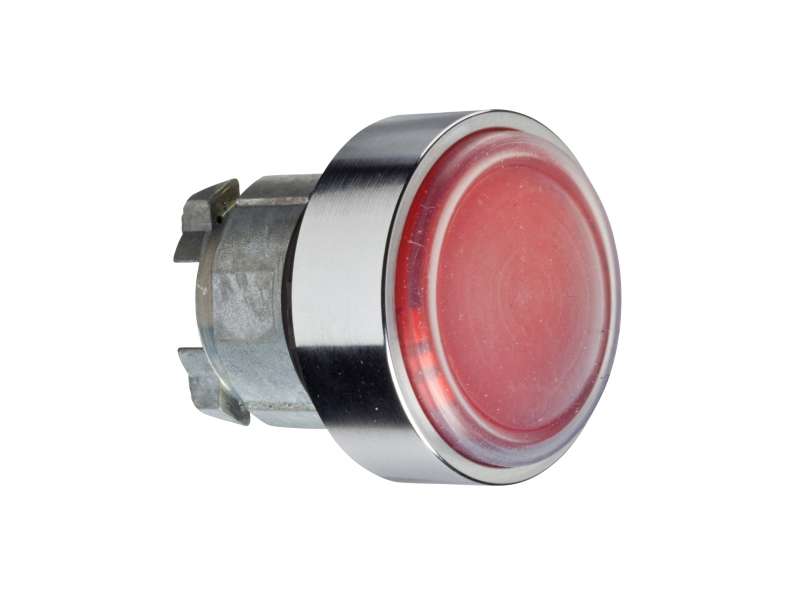

Schneider Electric Crvena udubljena glava tastera Ø22 sa povratkom, neobeleženo;ZB4BP483
Red flush pushbutton head Ø22 spring return unmarked...
VAT-exclusive price: 871,00 |
VAT-inclusive price: 1.045,20 |
Red flush pushbutton head Ø22 spring return unmarked
| range of product |
Harmony XB4
|
|
|---|---|---|
| product or component type |
Head for non-illuminated push-button
|
|
| device short name |
ZB4
|
|
| product compatibility |
legend holder
|
|
| bezel material |
Chromium plated metal
|
|
| mounting diameter |
22 mm
|
|
| sale per indivisible quantity |
1
|
|
| head type |
Standard
|
|
| shape of signaling unit head |
Round
|
|
| type of operator |
spring return
|
|
| operator profile |
Red flush, unmarked
|
|
| operator additional information |
Clear membrane for insertion of protected legend within head
|
| CAD overall width |
30 mm
|
|
|---|---|---|
| CAD overall height |
30 mm
|
|
| CAD overall depth |
32 mm
|
|
| mechanical durability |
10000000 cycles
|
|
| electrical composition code |
C3 for <6 contacts using single blocks in front mounting
C4 for <6 contacts using single and double blocks in front mounting C14 for <2 contacts using single blocks in front mounting |
|
| device presentation |
Basic element
|
| protective treatment |
TH
|
|
|---|---|---|
| ambient air temperature for storage |
-40…70 °C
|
|
| ambient air temperature for operation |
-40…70 °C
|
|
| overvoltage category |
Class I conforming to IEC 60536
|
|
| IP degree of protection |
IP66 conforming to IEC 60529
IP67 IP69 IP69K |
|
| NEMA degree of protection |
NEMA 13
NEMA 4X |
|
| IK degree of protection |
IK06 conforming to IEC 50102
|
|
| standards |
EN/IEC 60947-1
UL 508 JIS C8201-5-1 EN/IEC 60947-5-1 CSA C22.2 No 14 EN/IEC 60947-5-5 EN/IEC 60947-5-4 JIS C8201-1 |
|
| product certifications |
RINA
CSA BV LROS (Lloyds register of shipping) DNV UL listed GL |
|
| vibration resistance |
5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
|
|
| shock resistance |
30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
36 g
|
|
| Package 1 Height |
5.2 cm
|
|
| Package 1 width |
5.4 cm
|
|
| Package 1 Length |
8.7 cm
|
|
| Unit Type of Package 2 |
BB1
|
|
| Number of Units in Package 2 |
5
|
|
| Package 2 Weight |
183 g
|
|
| Package 2 Height |
3.3 cm
|
|
| Package 2 width |
8.7 cm
|
|
| Package 2 Length |
26 cm
|
|
| Unit Type of Package 3 |
S02
|
|
| Number of Units in Package 3 |
50
|
-
Harmony XB4 ZB4BP483
