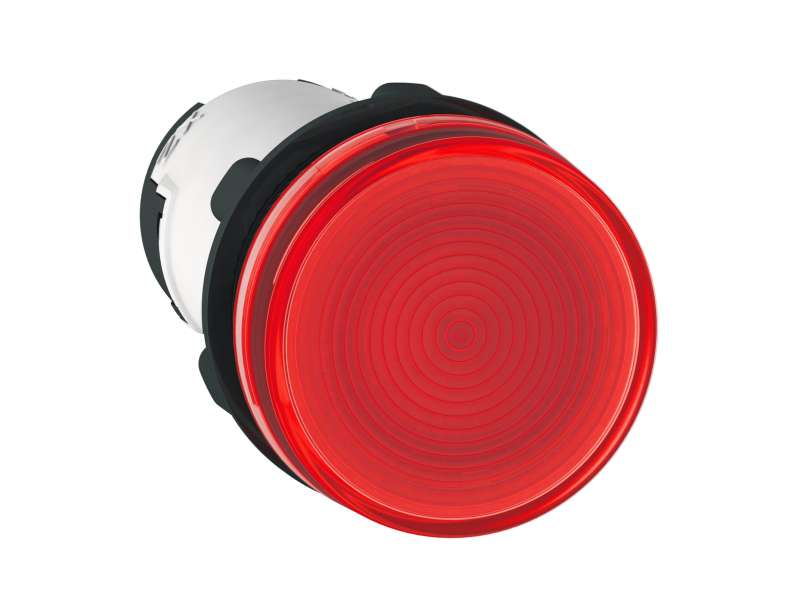

Schneider Electric Crvena signalna lampica 250 V;XB7EV64P
DIRECT SUPPLY RED PILOT LIGHT...
VAT-exclusive price: 469,00 |
VAT-inclusive price: 562,80 |
DIRECT SUPPLY RED PILOT LIGHT
| range of product |
Harmony XB7
|
|
|---|---|---|
| product or component type |
Pilot light
|
|
| device short name |
XB7
|
|
| mounting diameter |
22 mm
|
|
| sale per indivisible quantity |
10
|
|
| operator additional information |
With plain lens
|
|
| light source |
Incandescent (bulb not included)
|
|
| device presentation |
Monolithic product
|
| height |
29 mm
|
|
|---|---|---|
| width |
29 mm
|
|
| depth |
54 mm
|
|
| terminals description ISO n°1 |
(X1-X2)PL
|
|
| net weight |
0.018 kg
|
|
| overvoltage category |
Class II conforming to IEC 60536
|
|
| device mounting |
Fixing hole - diameter: 22.5 mm 22.3 +0.4/0 conforming to EN/IEC 60947-5-1
|
|
| fixing center |
>= 30 x 40 mm (support panel) metal - thickness: 1…6 mm
>= 30 x 40 mm (support panel) plastic - thickness: 2…6 mm |
|
| fixing mode |
Fixing nut beneath head: 2…2.4 N.m
|
|
| shape of signaling unit head |
Round
|
|
| cap/operator or lens colour |
Red
|
|
| connections - terminals |
Faston connectors, connection size: 6.35 x 0.8 mm conforming to EN/IEC 60947-1
Forked type tag connectors, connection size: 6.5 mm conforming to EN/IEC 60947-1 Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1 Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to EN/IEC 60947-1 |
|
| tightening torque |
0.8…1.2 N.m conforming to EN 60947-1
|
|
| shape of screw head |
Cross compatible with JIS No 1 screwdriver
Cross compatible with Philips no 1 screwdriver Cross compatible with pozidriv No 1 screwdriver Slotted compatible with flat Ø 4 mm screwdriver Slotted compatible with flat Ø 5.5 mm screwdriver |
|
| [Ui] rated insulation voltage |
250 V (pollution degree 3) conforming to EN/IEC 60947-1
|
|
| [Uimp] rated impulse withstand voltage |
6 kV EN/IEC 60947-1
|
|
| signalling type |
Steady
|
|
| bulb base |
BA 9s
|
|
| light block supply |
Direct
|
|
| [Us] rated supply voltage |
<= 250 V
|
|
| compatibility code |
XB7
|
| protective treatment |
TH
|
|
|---|---|---|
| ambient air temperature for storage |
-40…70 °C
|
|
| ambient air temperature for operation |
-25…55 °C
|
|
| IP degree of protection |
IP20 (rear face) conforming to IEC 60529
IP54 (front face) conforming to IEC 60529 |
|
| NEMA degree of protection |
NEMA 12
|
|
| standards |
EN/IEC 60947-5-1
EN/IEC 60947-1 JIS C8201-5-1 CSA C22.2 No 14 UL 508 JIS C8201-1 |
|
| vibration resistance |
5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
|
|
| shock resistance |
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
|
|
| electromagnetic compatibility |
Disturbing field emission class B conforming to EN 55011
|
| Package 1 Weight |
0.018 kg
|
|
|---|---|---|
| Package 1 Height |
0.700 dm
|
|
| Package 1 width |
1.700 dm
|
|
| Package 1 Length |
1.300 dm
|
| Sustainable offer status |
Green Premium product
|
|
|---|---|---|
| REACh free of SVHC |
Yes
|
|
| EU RoHS Directive |
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration |
|
| Toxic heavy metal free |
Yes
|
|
| Mercury free |
Yes
|
|
| RoHS exemption information | ||
| China RoHS Regulation | ||
| Environmental Disclosure | ||
| Circularity Profile | ||
| WEEE |
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
|
| Warranty |
18 months
|
|---|
-
