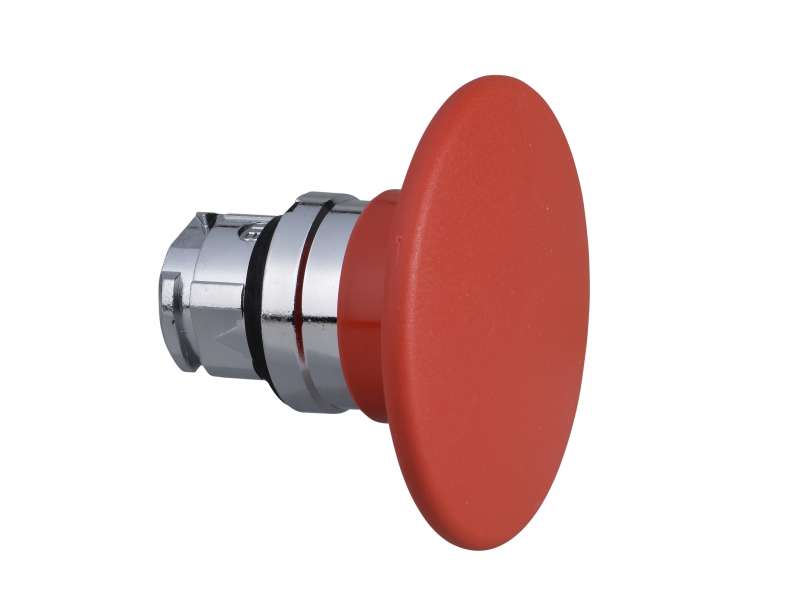

Schneider Electric Crvena Ø60 pečurkasta glava tastera Ø22 sa povratkom;ZB4BR4
Mushroom push button head Ø60, metal, red, Ø22, spring return...
VAT-exclusive price: 1.876,00 |
VAT-inclusive price: 2.251,20 |
Mushroom push button head Ø60, metal, red, Ø22, spring return
| range of product |
Harmony XB4
|
|
|---|---|---|
| product or component type |
Head for non-illuminated push-button
|
|
| device short name |
ZB4
|
|
| bezel material |
Chromium plated metal
|
|
| mounting diameter |
22 mm
|
|
| sale per indivisible quantity |
1
|
|
| head type |
Standard
|
|
| shape of signaling unit head |
Round
|
|
| type of operator |
spring return
|
|
| operator profile |
Red mushroom Ø 60 mm, unmarked
|
| CAD overall width |
60 mm
|
|
|---|---|---|
| CAD overall height |
60 mm
|
|
| CAD overall depth |
52 mm
|
|
| mechanical durability |
5000000 cycles
|
|
| electrical composition code |
C1 for <9 contacts using single blocks in front mounting
C2 for <9 contacts using single and double blocks in front mounting C11 for <3 contacts using single blocks in front mounting C15 for <1 contacts using single blocks in front mounting |
|
| device presentation |
Basic element
|
| protective treatment |
TH
|
|
|---|---|---|
| ambient air temperature for storage |
-40…70 °C
|
|
| ambient air temperature for operation |
-40…70 °C
|
|
| overvoltage category |
Class I conforming to IEC 60536
|
|
| IP degree of protection |
IP66 conforming to IEC 60529
IP67 IP69 IP69K |
|
| NEMA degree of protection |
NEMA 13
NEMA 4X |
|
| IK degree of protection |
IK03 conforming to IEC 50102
|
|
| standards |
CSA C22.2 No 14
EN/IEC 60947-5-1 EN/IEC 60947-1 EN/IEC 60947-5-5 UL 508 JIS C8201-5-1 EN/IEC 60947-5-4 JIS C8201-1 |
|
| product certifications |
CSA
RINA BV DNV GL LROS (Lloyds register of shipping) UL listed |
|
| vibration resistance |
5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
|
|
| shock resistance |
30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
88 g
|
|
| Package 1 Height |
7 cm
|
|
| Package 1 width |
7 cm
|
|
| Package 1 Length |
9 cm
|
|
| Unit Type of Package 2 |
S02
|
|
| Number of Units in Package 2 |
20
|
|
| Package 2 Weight |
2.135 kg
|
|
| Package 2 Height |
15 cm
|
|
| Package 2 width |
30 cm
|
|
| Package 2 Length |
40 cm
|
| Sustainable offer status |
Green Premium product
|
|
|---|---|---|
| REACh Regulation | ||
| REACh free of SVHC |
Yes
|
-
Harmony XB4 ZB4BR4
