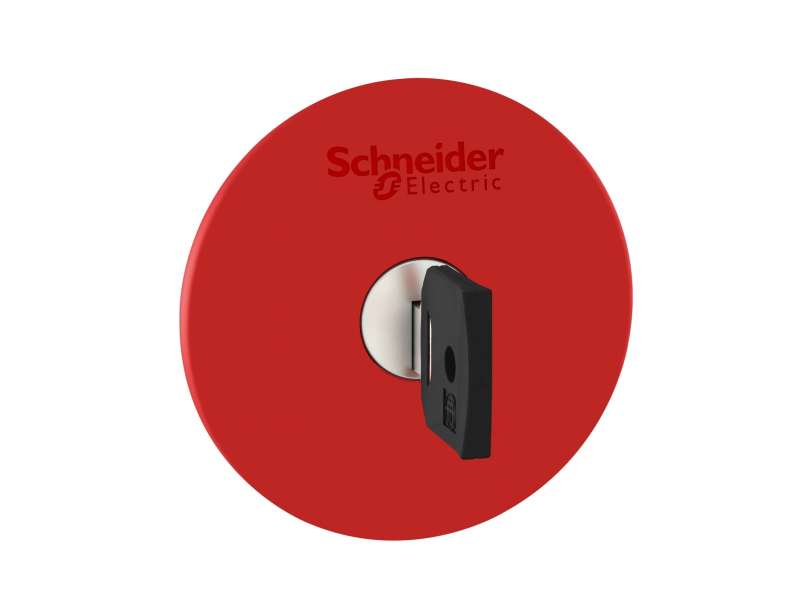

Schneider Electric Crvena Ø60 glava tastera za nužno isklj. Ø22 okidanje i zadrš.otpuštanje zakret.;ZB4BS964
Emergency stop head switching off, metal, red mushroom Ø60, Ø22, trigger latching key release...
VAT-exclusive price: 5.264,00 |
VAT-inclusive price: 6.316,80 |
Emergency stop head switching off, metal, red mushroom Ø60, Ø22, trigger latching key release
| range of product |
Harmony XB4
|
|
|---|---|---|
| product or component type |
Head for emergency switching off push-button
|
|
| device short name |
ZB4
|
|
| bezel material |
Chromium plated metal
|
|
| mounting diameter |
22 mm
|
|
| sale per indivisible quantity |
1
|
|
| shape of signaling unit head |
Round
|
|
| type of operator |
trigger action and mechanical latching
|
|
| reset |
Key release
|
|
| operator profile |
Red mushroom Ø 60 mm, unmarked
|
|
| type of keylock |
Ronis 455
|
|
| key withdrawal position |
Center
|
|
| head type |
Standard
|
| CAD overall width |
60 mm
|
|
|---|---|---|
| CAD overall height |
60 mm
|
|
| CAD overall depth |
79 mm
|
|
| net weight |
0.118 kg
|
|
| resistance to high pressure washer |
7000000 Pa at 55 °C, distance : 0.1 m
|
|
| mechanical durability |
300000 cycles
|
|
| electrical composition code |
C7 for <4 contacts using single blocks in front mounting
C8 for <4 contacts using single and double blocks in front mounting C11 for <3 contacts using single blocks in front mounting C15 for <1 contacts using single blocks in front mounting C10 for <4 contacts using single and double blocks in front mounting |
|
| device presentation |
Basic element
|
| protective treatment |
TH
|
|
|---|---|---|
| ambient air temperature for storage |
-40…70 °C
|
|
| ambient air temperature for operation |
-40…70 °C
|
|
| electrical shock protection class |
Class I conforming to IEC 61140
|
|
| IP degree of protection |
IP66 conforming to IEC 60529
IP67 IP69 IP69K |
|
| NEMA degree of protection |
NEMA 13
NEMA 4X NEMA 4 NEMA 12 |
|
| IK degree of protection |
IK03 conforming to IEC 50102
|
|
| standards |
GB 14048.5
EN/IEC 60947-5-5 EN/IEC 60947-5-4 CSA C22.2 No 14 JIS C8201-5-1 EN/IEC 60204-1 IEC 60364-5-53 UL 508 EN/ISO 13850 EN/IEC 60947-1 EN/IEC 60947-5-1 JIS C8201-1 |
|
| product certifications |
CSA
GL BV LROS (Lloyds register of shipping) UL listed DNV RINA |
|
| vibration resistance |
5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
|
|
| shock resistance |
30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
114 g
|
|
| Package 1 Height |
7 cm
|
|
| Package 1 width |
7 cm
|
|
| Package 1 Length |
9 cm
|
|
| Unit Type of Package 2 |
S03
|
|
| Number of Units in Package 2 |
40
|
|
| Package 2 Weight |
5.045 kg
|
|
| Package 2 Height |
30 cm
|
|
| Package 2 width |
30 cm
|
-
Harmony XB4 ZB4BS964
