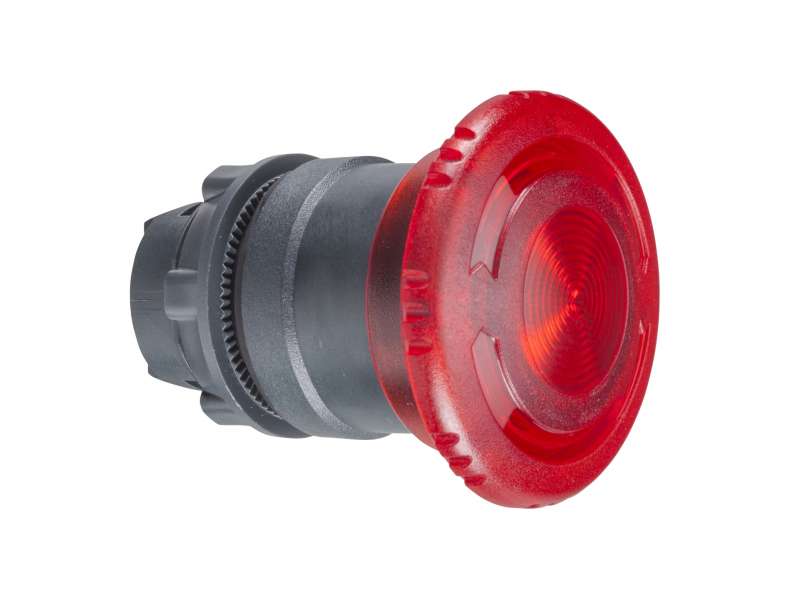

Schneider Electric Crvena Ø40 svetleća pečurkasta glava tastera Ø22 zadrška za integrisan LED;ZB5AW743
Illuminated emergency stop switching off head, plastic, red mushroom Ø40, Ø22, trigger latching turn to release...
VAT-exclusive price: 2.184,00 |
VAT-inclusive price: 2.620,80 |
Illuminated emergency stop switching off head, plastic, red mushroom Ø40, Ø22, trigger latching turn to release
| range of product |
Harmony XB5
|
|
|---|---|---|
| product or component type |
Head for illuminated emergency switching off push-button
|
|
| device short name |
ZB5
|
|
| product compatibility |
Integral LED
|
|
| bezel material |
Dark grey plastic
|
|
| mounting diameter |
22 mm
|
|
| sale per indivisible quantity |
1
|
|
| head type |
Standard
|
|
| shape of signaling unit head |
Round
|
|
| type of operator |
latching
|
|
| reset |
Turn to release
|
|
| operator profile |
Red mushroom Ø 40 mm, unmarked
|
| CAD overall width |
40 mm
|
|
|---|---|---|
| CAD overall height |
40 mm
|
|
| CAD overall depth |
50 mm
|
|
| net weight |
0.022 kg
|
|
| resistance to high pressure washer |
7000000 Pa at 55 °C, distance : 0.1 m
|
|
| mechanical durability |
300000 cycles
|
|
| main group |
Switching off
|
|
| group of product |
Emer swi off illum turn to rel
|
|
| station name |
XALD 1 cut-out
XALK 1 cut-out |
|
| cap/operator or lens colour |
Red
|
|
| marking |
Unmarked
|
|
| electrical composition code |
M6 for <2 contacts using single blocks in front mounting with integral LED and transformer
M10 for <2 contacts using single blocks in front mounting with integral LED MF1 for <2 contacts using single blocks in front mounting with integral LED MR1 for <2 contacts using single blocks in rear mounting with integral LED |
|
| device presentation |
Basic sub-assemblies
|
| protective treatment |
TC
|
|
|---|---|---|
| ambient air temperature for storage |
-40…70 °C
|
|
| ambient air temperature for operation |
-40…70 °C
|
|
| overvoltage category |
Class II conforming to IEC 60536
|
|
| IP degree of protection |
IP66 conforming to IEC 60529
IP69 IP69K |
|
| NEMA degree of protection |
NEMA 13
NEMA 4X |
|
| IK degree of protection |
IK05 conforming to EN 50102
|
|
| standards |
EN/IEC 60947-5-4
EN/IEC 60947-1 GB 14048.5 EN/IEC 60947-5-1 CSA C22.2 No 14 JIS C8201-5-1 UL 508 JIS C8201-1 |
|
| product certifications |
UL listed
LROS (Lloyds register of shipping) BV RINA GL CSA DNV |
|
| vibration resistance |
5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
|
|
| shock resistance |
30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
36 g
|
|
| Package 1 Height |
8.6 cm
|
|
| Package 1 width |
4.2 cm
|
|
| Package 1 Length |
5.4 cm
|
|
| Unit Type of Package 2 |
S03
|
-
Harmony XB5 ZB5AW743
