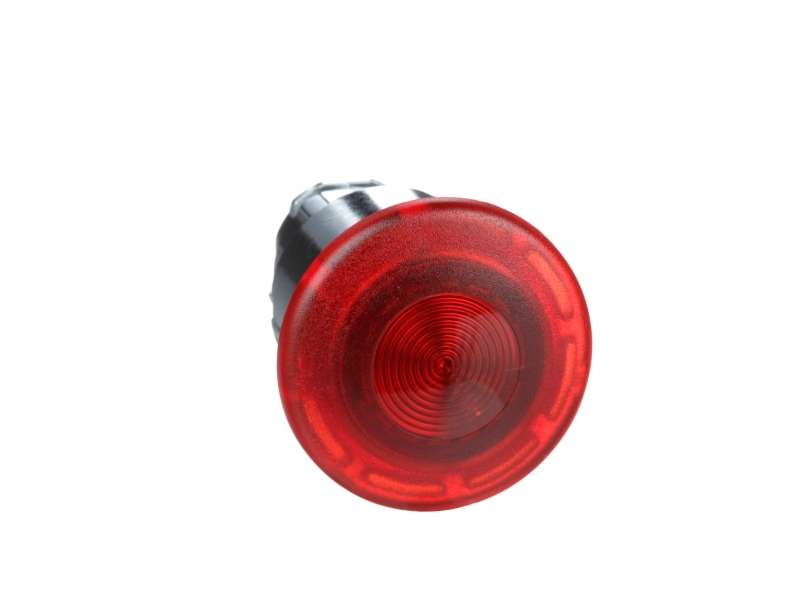

Schneider Electric Crvena Ø40 glava tastera za nužno isklj. Ø22 zadrš.otpuštanje povlač.za int. LED ; ZB4BW643
Harmony XB4, Illuminated mushroom push button head Ø40, metal, red, Ø22, latching push-pull, integral LED...
VAT-exclusive price: 5.048,00 |
VAT-inclusive price: 6.057,60 |
Harmony XB4, Illuminated mushroom push button head Ø40, metal, red, Ø22, latching push-pull, integral LED
| CAD overall width |
40 mm
|
|
|---|---|---|
| CAD overall height |
40 mm
|
|
| CAD overall depth |
53 mm
|
|
| net weight |
0.051 kg
|
|
| resistance to high pressure washer |
7000000 Pa at 55 °C, distance : 0.1 m
|
|
| mechanical durability |
500000 cycles
|
|
| electrical composition code |
M6 for <2 contacts using single blocks in front mounting with integral LED and transformer
M10 for <2 contacts using single blocks in front mounting with integral LED M3 for <4 contacts using single blocks in front mounting with integral LED M4 for <4 contacts using single and double blocks in front mounting with integral LED |
|
| device presentation |
Basic sub-assemblies
|
| protective treatment |
TH
|
|
|---|---|---|
| ambient air temperature for storage |
-40…70 °C
|
|
| ambient air temperature for operation |
-40…70 °C
|
|
| overvoltage category |
Class I conforming to IEC 60536
|
|
| IP degree of protection |
IP66 conforming to IEC 60529
IP69 IP69K |
|
| NEMA degree of protection |
NEMA 13
NEMA 4X |
|
| IK degree of protection |
IK05 conforming to EN 50102
|
|
| standards |
JIS C8201-5-1
IEC 60364-5-53 EN/IEC 60947-5-5 EN/IEC 60947-5-1 EN/IEC 60947-5-4 EN/IEC 60947-1 CSA C22.2 No 14 UL 508 JIS C8201-1 |
|
| product certifications |
CSA
GL UL listed BV LROS (Lloyds register of shipping) DNV |
|
| vibration resistance |
5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
|
|
| shock resistance |
30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
53 g
|
|
| Package 1 Height |
4.3 cm
|
|
| Package 1 width |
5.2 cm
|
|
| Package 1 Length |
5.6 cm
|
|
| Unit Type of Package 2 |
BB1
|
|
| Number of Units in Package 2 |
5
|
|
| Package 2 Weight |
267 g
|
|
| Package 2 Height |
4.3 cm
|
|
| Package 2 width |
5.6 cm
|
|
| Package 2 Length |
26.5 cm
|
|
| Unit Type of Package 3 |
S02
|
|
| Number of Units in Package 3 |
80
|
|
| Package 3 Weight |
4.578 kg
|
|
| Package 3 Height |
15 cm
|
|
| Package 3 width |
30 cm
|
|
| Package 3 Length |
40 cm
|
| Sustainable offer status |
Green Premium product
|
|
|---|---|---|
| REACh free of SVHC |
Yes
|
|
| EU RoHS Directive |
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration |
|
| Mercury free |
Yes
|
|
| RoHS exemption information | ||
| China RoHS Regulation | ||
| Environmental Disclosure | ||
| Circularity Profile | ||
| California proposition 65 |
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
|
18 months
| Warranty |
|---|
| ange of product |
Harmony XB4
|
|
|---|---|---|
| product or component type |
Head for illuminated emergency switching off push-button
|
|
| device short name |
ZB4
|
|
| product compatibility |
Integral LED
|
|
| bezel material |
Chromium plated metal
|
|
| head type |
Standard
|
|
| mounting diameter |
22 mm
|
|
| sale per indivisible quantity |
1
|
|
| shape of signaling unit head |
Round
|
|
| type of operator |
mechanical latching
|
|
| reset |
Push-pull
|
|
| operator profile |
Red mushroom Ø 40 mm, unmarked
|
-
Harmony XB4 ZB4BW643 (1)
