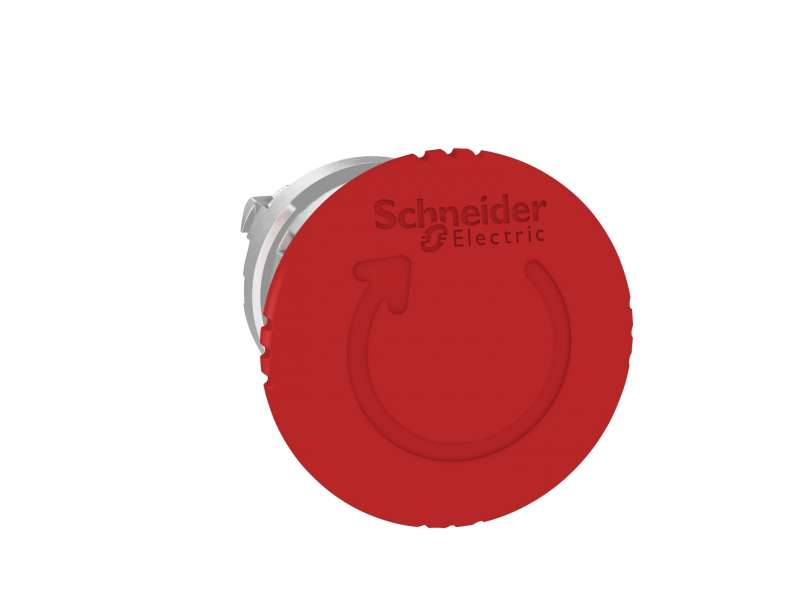

Schneider Electric Crvena Ø40 glava tastera za nužno isklj. Ø22 okidanje i zadrš.otpuštanje zakret.;ZB4BS844
Emergency stop head, switching off, metal, red mushroom Ø40, Ø22, trigger latching turn to release...
VAT-exclusive price: 2.985,00 |
VAT-inclusive price: 3.582,00 |
Emergency stop head, switching off, metal, red mushroom Ø40, Ø22, trigger latching turn to release
| range of product |
Harmony XB4
|
|
|---|---|---|
| product or component type |
Head for emergency switching off push-button
|
|
| device short name |
ZB4
|
|
| bezel material |
Chromium plated metal
|
|
| mounting diameter |
22 mm
|
|
| sale per indivisible quantity |
1
|
|
| shape of signaling unit head |
Round
|
|
| type of operator |
trigger action and mechanical latching
|
|
| reset |
Turn to release
|
|
| operator profile |
Red mushroom Ø 40 mm, unmarked
|
|
| head type |
Standard
|
| CAD overall width |
40 mm
|
|
|---|---|---|
| CAD overall height |
40 mm
|
|
| CAD overall depth |
57 mm
|
|
| net weight |
0.073 kg
|
|
| mechanical durability |
300000 cycles
|
|
| electrical composition code |
C7 for <4 contacts using single blocks in front mounting
C8 for <4 contacts using single and double blocks in front mounting C11 for <3 contacts using single blocks in front mounting C15 for <1 contacts using single blocks in front mounting C10 for <4 contacts using single and double blocks in front mounting |
|
| device presentation |
Basic element
|
| protective treatment |
TH
|
|
|---|---|---|
| ambient air temperature for storage |
-40…70 °C
|
|
| ambient air temperature for operation |
-40…70 °C
|
|
| electrical shock protection class |
Class I conforming to IEC 61140
|
|
| IP degree of protection |
IP66 conforming to IEC 60529
IP69 IP69K |
|
| NEMA degree of protection |
NEMA 13
NEMA 4X NEMA 4 NEMA 12 |
|
| IK degree of protection |
IK06 conforming to IEC 50102
|
|
| standards |
UL 508
EN/IEC 60947-5-5 CSA C22.2 No 14 EN/IEC 60947-5-4 JIS C8201-5-1 EN/IEC 60947-1 EN/IEC 60947-5-1 EN/IEC 60204-1 IEC 60364-5-53 GB 14048.5 EN/ISO 13850 JIS C8201-1 |
|
| product certifications |
RINA
DNV BV CSA LROS (Lloyds register of shipping) UL listed GL |
|
| vibration resistance |
5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
|
|
| shock resistance |
30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
76 g
|
|
| Package 1 Height |
5.4 cm
|
|
| Package 1 width |
4.4 cm
|
|
| Package 1 Length |
8.8 cm
|
|
| Unit Type of Package 2 |
S03
|
|
| Number of Units in Package 2 |
100
|
|
| Package 2 Weight |
8.097 kg
|
|
| Package 2 Height |
30 cm
|
|
| Package 2 width |
30 cm
|
|
| Package 2 Length |
40 cm
|
|
| Unit Type of Package 3 |
P06
|
|
| Number of Units in Package 3 |
800
|
-
Harmony XB4 ZB4BS844
