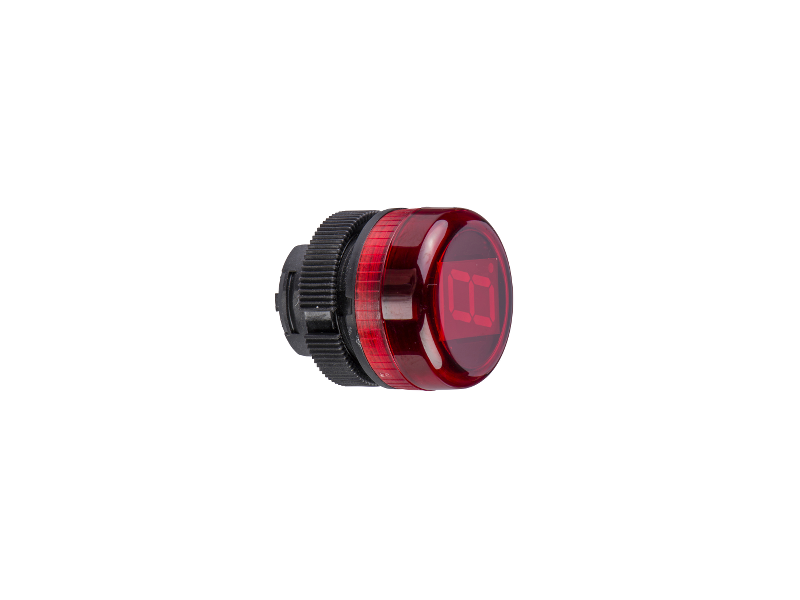

Schneider Electric Crvena glava digitalnog displeja Ø22;ZA2VA04
Digital display head, red, Ø22, 24 V DC...
VAT-exclusive price: 6.057,00 |
VAT-inclusive price: 7.268,40 |
Digital display head, red, Ø22, 24 V DC
| range of product |
Harmony
|
|
|---|---|---|
| product or component type |
Digital display head
|
|
| mounting diameter |
22 mm
|
|
| cap/operator or lens colour |
Red
|
|
| [Us] rated supply voltage |
24 V DC
|
| display type |
7 segments LED + decimal point
|
|
|---|---|---|
| supply voltage limits |
13…30 V
|
|
| net weight |
0.02 kg
|
| product certifications |
UL
CSA |
|
|---|---|---|
| ambient air temperature for operation |
-25…70 °C
|
|
| ambient air temperature for storage |
-40…85 °C
|
|
| vibration resistance |
10 gn (f= 10…500 Hz) conforming to IEC 60068-2-6
|
|
| shock resistance |
180 gn conforming to IEC 60068-2-27
|
|
| electrical shock protection class |
Class II conforming to NF C 20-030
|
|
| IP degree of protection |
IP65 conforming to IEC 60529
IP65 conforming to NF C 20-010 |
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
21 g
|
|
| Package 1 Height |
3.2 cm
|
|
| Package 1 width |
4.2 cm
|
|
| Package 1 Length |
4.2 cm
|
|
| Unit Type of Package 2 |
S01
|
|
| Number of Units in Package 2 |
60
|
|
| Package 2 Weight |
1.41 kg
|
|
| Package 2 Height |
15 cm
|
|
| Package 2 width |
15 cm
|
|
| Package 2 Length |
40 cm
|
| Sustainable offer status |
Green Premium product
|
|
|---|---|---|
| REACh Regulation | ||
| REACh free of SVHC |
Yes
|
|
| EU RoHS Directive |
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration |
|
| Toxic heavy metal free |
Yes
|
|
| Mercury free |
Yes
|
|
| RoHS exemption information | ||
| China RoHS Regulation | ||
| Environmental Disclosure | ||
| WEEE |
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
|
| Warranty |
18 months
|
|---|
-
Harmony XB5 ZA2VA04
