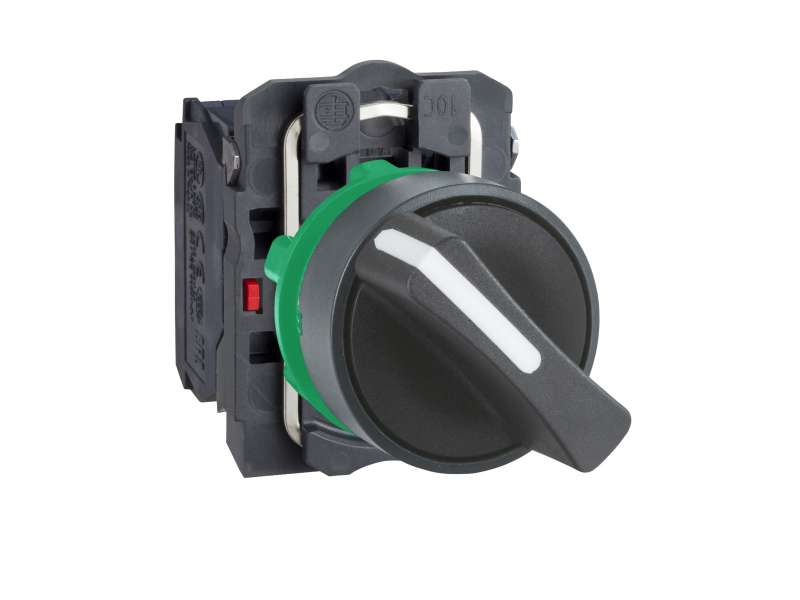

Name: Schneider Electric Crni kompletni izborni prekidač Ø22 2-pozicije bez povratka 1NO+1NC;XB5AD25
Brand: Schneider Electric
SKU: XB5AD25
Price: 2118.00 RSD
Availability: OutOfStock

Schneider Electric Crni kompletni izborni prekidač Ø22 2-pozicije bez povratka 1NO+1NC;XB5AD25

Selector switch, plastic, black, Ø22, 2 positions, stay put, 1 NO + 1 NC...

Brand: Schneider Electric
Product Code: XB5AD25
Availability: Check availability

VAT-exclusive price: 1.765,00

VAT-inclusive price: 2.118,00

Qnt:

Selector switch, plastic, black, Ø22, 2 positions, stay put, 1 NO + 1 NC

Main
range of product	Harmony XB5
product or component type	Selector switch
device short name	XB5
bezel material	Dark grey plastic
head type	Standard
mounting diameter	22 mm
sale per indivisible quantity	1
shape of signaling unit head	Round
type of operator	stay put
operator profile	Black standard handle
operator position information	2 positions 90°
contacts type and composition	1 NO + 1 NC
contact operation	Slow-break
connections - terminals	Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1 Screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to EN/IEC 60947-1

Complementary
height	42 mm
width	30 mm
depth	70 mm
terminals description ISO n°1	(13-14)NO
net weight	0.043 kg
resistance to high pressure washer	7000000 Pa at 55 °C, distance : 0.1 m
contacts usage	Standard contacts
positive opening	With conforming to EN/IEC 60947-5-1 appendix K
torque value	0.14 N.m NO changing electrical state
mechanical durability	1000000 cycles
tightening torque	0.8…1.2 N.m conforming to EN 60947-1
shape of screw head	Cross compatible with Philips no 1 screwdriver Cross compatible with pozidriv No 1 screwdriver Slotted compatible with flat Ø 4 mm screwdriver Slotted compatible with flat Ø 5.5 mm screwdriver
contacts material	Silver alloy (Ag/Ni)
short-circuit protection	10 A cartridge fuse type gG conforming to EN/IEC 60947-5-1
[Ith] conventional free air thermal current	10 A conforming to EN/IEC 60947-5-1
[Ui] rated insulation voltage	600 V (pollution degree 3) conforming to EN 60947-1
[Uimp] rated impulse withstand voltage	EN 60947-1 6 kV
[Ie] rated operational current	3 A at 240 V, AC-15, A600 conforming to EN/IEC 60947-5-1 6 A at 120 V, AC-15, A600 conforming to EN/IEC 60947-5-1 0.1 A at 600 V, DC-13, Q600 conforming to EN/IEC 60947-5-1 0.27 A at 250 V, DC-13, Q600 conforming to EN/IEC 60947-5-1 0.55 A at 125 V, DC-13, Q600 conforming to EN/IEC 60947-5-1 1.2 A at 600 V, AC-15, A600 conforming to EN/IEC 60947-5-1
electrical durability	1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C 1000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C 1000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C
electrical reliability	Λ < 10exp(-6) at 5 V, 1 mA in clean environment conforming to EN/IEC 60947-5-4 Λ < 10exp(-8) at 17 V, 5 mA in clean environment conforming to EN/IEC 60947-5-4
device presentation	Complete product

Environment
protective treatment	TH
ambient air temperature for storage	-40…70 °C
ambient air temperature for operation	-40…70 °C
electrical shock protection class	Class II conforming to IEC 60536
IP degree of protection	IP67 conforming to IEC 60529 IP69 IP69K
NEMA degree of protection	NEMA 13 NEMA 4X
IK degree of protection	IK06 conforming to IEC 50102
standards	CSA C22.2 No 14 EN/IEC 60947-5-1 UL 508 EN/IEC 60947-5-4 EN/IEC 60947-1
