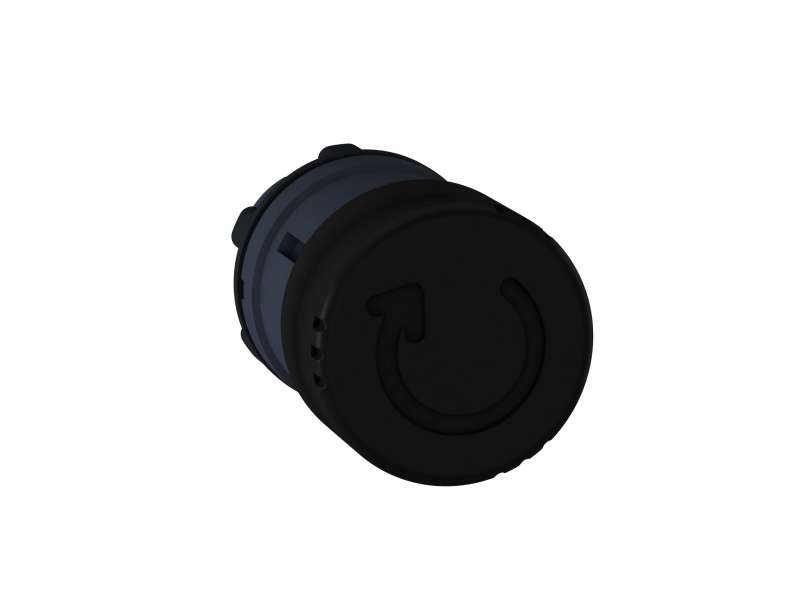

Schneider Electric Crna Ø30 pečurkasta glava tastera Ø22 zadrška, otpuštanje zakretanjem;ZB5AS42
Mushroom push button head Ø30, plastic, black, Ø22, latching turn realease...
VAT-exclusive price: 1.961,00 |
VAT-inclusive price: 2.353,20 |
Mushroom push button head Ø30, plastic, black, Ø22, latching turn realease
| range of product |
Harmony XB5
|
|
|---|---|---|
| product or component type |
Head for non-illuminated push-button
|
|
| device short name |
ZB5
|
|
| bezel material |
Dark grey plastic
|
|
| head type |
Standard
|
|
| mounting diameter |
22 mm
|
|
| sale per indivisible quantity |
1
|
|
| shape of signaling unit head |
Round
|
|
| type of operator |
latching
|
|
| reset |
Turn to release
|
|
| operator profile |
Black mushroom Ø 30 mm, unmarked
|
|
| device presentation |
Basic element
|
| CAD overall width |
30 mm
|
|
|---|---|---|
| CAD overall height |
30 mm
|
|
| CAD overall depth |
57 mm
|
|
| net weight |
0.04 kg
|
|
| mechanical durability |
500000 cycles
|
|
| station name |
XALD 1...5 cut-outs
XALK 2...5 cut-outs |
|
| electrical composition code |
C11 for <3 contacts using single blocks in front mounting
C15 for <1 contacts using single blocks in front mounting SF1 for <3 contacts using single blocks in front mounting SR1 for <3 contacts using single blocks in rear mounting C7 for <4 contacts using single blocks in front mounting C8 for <4 contacts using single and double blocks in front mounting C10 for <4 contacts using single and double blocks in front mounting |
|
| compatibility code |
ZB5
|
| protective treatment |
TH
|
|
|---|---|---|
| ambient air temperature for storage |
-40…70 °C
|
|
| ambient air temperature for operation |
-40…70 °C
|
|
| overvoltage category |
Class II conforming to IEC 60536
|
|
| IP degree of protection |
IP66 conforming to IEC 60529
IP67 IP69 IP69K |
|
| NEMA degree of protection |
NEMA 13
NEMA 4X |
|
| resistance to high pressure washer |
7000000 Pa at 55 °C, distance : 0.1 m
|
|
| IK degree of protection |
IK03 conforming to IEC 50102
|
|
| standards |
UL 508
JIS C8201-5-1 EN/IEC 60947-5-4 EN/IEC 60947-1 EN/IEC 60947-5-1 CSA C22.2 No 14 JIS C8201-1 |
|
| product certifications |
DNV
BV RINA LROS (Lloyds register of shipping) GL CSA UL listed |
|
| vibration resistance |
5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
|
|
| shock resistance |
30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Package 1 Weight |
0.040 kg
|
|
|---|---|---|
| Package 1 Height |
0.880 dm
|
|
| Package 1 width |
0.340 dm
|
|
| Package 1 Length |
0.540 dm
|
| Sustainable offer status |
Green Premium product
|
|
|---|---|---|
| REACh Regulation | ||
| REACh free of SVHC |
Yes
|
|
| EU RoHS Directive |
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration |
|
| Toxic heavy metal free |
Yes
|
|
-
Harmony XB5 ZB5AS42
