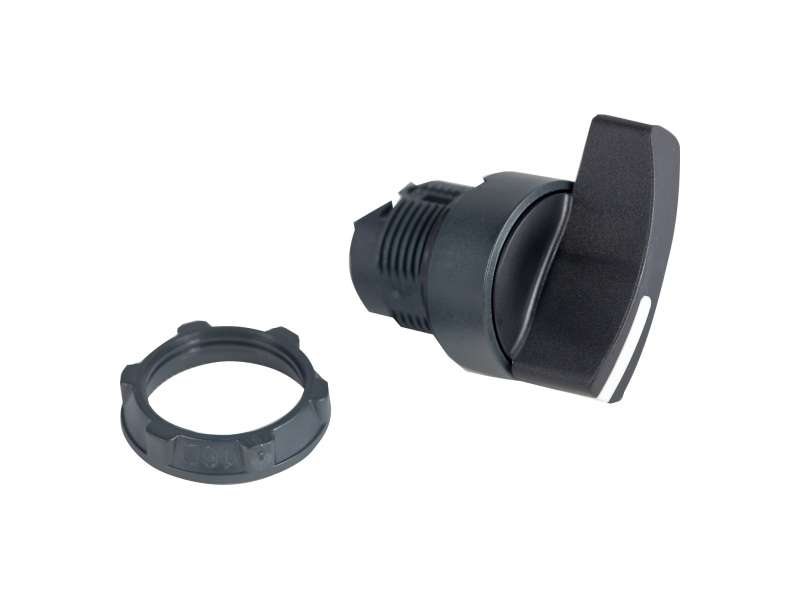

Schneider Electric Crna glava izbornog prekidača Ø22 2-pozicije bez povratka;ZB5AJ2
Selector switch head, plastic, black, Ø22, long handle, 2 positions, stay put...
VAT-exclusive price: 1.073,00 |
VAT-inclusive price: 1.287,60 |
Selector switch head, plastic, black, Ø22, long handle, 2 positions, stay put
| range of product |
Harmony XB5
|
|
|---|---|---|
| product or component type |
Head for selector switch
|
|
| device short name |
ZB5
|
|
| bezel material |
Dark grey plastic
|
|
| mounting diameter |
22 mm
|
|
| head type |
Standard
|
|
| sale per indivisible quantity |
1
|
|
| shape of signaling unit head |
Round
|
|
| type of operator |
stay put
|
|
| operator profile |
Black long handle
|
|
| operator additional information |
Non padlockable
|
|
| operator position information |
2 positions 90°
|
| CAD overall width |
29 mm
|
|
|---|---|---|
| CAD overall height |
38 mm
|
|
| CAD overall depth |
46 mm
|
|
| net weight |
0.017 kg
|
|
| mechanical durability |
1000000 cycles
|
|
| station name |
XALD 1...5 cut-outs
XALK 2...5 cut-outs |
|
| electrical composition code |
C3 for <6 contacts using single blocks in front mounting
C4 for <6 contacts using single and double blocks in front mounting C5 for <5 contacts using single blocks in front mounting C6 for <5 contacts using single and double blocks in front mounting C7 for <4 contacts using single blocks in front mounting C8 for <4 contacts using single and double blocks in front mounting C11 for <3 contacts using single blocks in front mounting C15 for <1 contacts using single blocks in front mounting SF1 for <3 contacts using single blocks in front mounting SR1 for <3 contacts using single blocks in rear mounting |
|
| device presentation |
Basic element
|
| protective treatment |
TH
|
|
|---|---|---|
| ambient air temperature for storage |
-40…70 °C
|
|
| ambient air temperature for operation |
-40…70 °C
|
|
| overvoltage category |
Class II conforming to IEC 60536
|
|
| IP degree of protection |
IP67 conforming to IEC 60529
IP69 conforming to IEC 60529 IP69K |
|
| NEMA degree of protection |
NEMA 13
NEMA 4X |
|
| resistance to high pressure washer |
7000000 Pa at 55 °C, distance : 0.1 m
|
|
| IK degree of protection |
IK06 conforming to IEC 50102
|
|
| standards |
EN/IEC 60947-5-1
EN/IEC 60947-1 EN/IEC 60947-5-4 CSA C22.2 No 14 JIS C8201-5-1 UL 508 JIS C8201-1 |
|
| product certifications |
LROS (Lloyds register of shipping)
GL CSA BV RINA DNV UL listed |
|
| vibration resistance |
5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
|
|
| shock resistance |
30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
24 g
|
|
| Package 1 Height |
3.5 cm
|
|
| Package 1 width |
5 cm
|
|
| Package 1 Length |
5.4 cm
|
|
| Unit Type of Package 2 |
S02
|
|
| Number of Units in Package 2 |
100
|
|
| Package 2 Weight |
2.818 kg
|
|
| Package 2 Height |
15 cm
|
|
| Package 2 width |
-
Harmony XB5 ZB5AJ2
