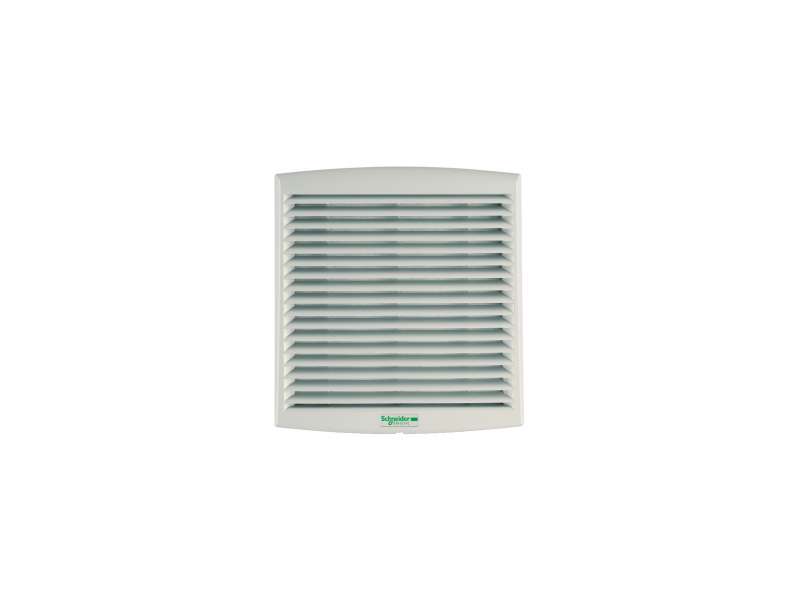

Schneider Electric ClimaSys ventilator IP54, 560m3/h, 230V, sa izlaznom rešetkom i filterom G2; NSYCVF560M230PF
ClimaSys forced vent. IP54, 560m3/h, 230V, with outlet grille and filter G2...
VAT-exclusive price: 23.656,00 |
VAT-inclusive price: 28.387,20 |
ClimaSys forced vent. IP54, 560m3/h, 230V, with outlet grille and filter G2
| Lead time |
Usually Ships within 4 Weeks
|
|---|
| range |
ClimaSys
|
|
|---|---|---|
| product name |
ClimaSys CV
|
|
| product or component type |
Fan
|
|
| range compatibility |
P
G |
|
| Type of filter |
Standard
|
|
| Flow rate |
Free flow rate with standard filter: 562 m3/h at 50 Hz
Free flow rate with standard filter: 586 m3/h at 60 Hz |
|
| [Us] rated supply voltage |
207...244 V
|
|
| input voltage |
230 V 50/60 Hz
|
| Absorbed power |
68 W 50 Hz
85 W 60 Hz |
|
|---|---|---|
| [In] rated current |
0.52 A 50 Hz
0.37 A 60 Hz |
|
| Noise level < at |
59 dB
|
|
| bearing type |
Ball
|
|
| height |
336 mm external:
|
|
| width |
316 mm external:
|
|
| depth |
161 mm external:
|
|
| cut-out dimensions |
291 x 291 mm
|
|
| net weight |
3.2 kg
|
|
| material |
Outlet grille: injected thermoplastic (ASA PC)
|
|
| colour |
Outlet grille: grey (RAL 7035)
|
|
| ambient air temperature for operation |
-15…60 °C
|
|
| ambient air temperature for storage |
-40…70 °C
|
|
| maximum pressure |
140 Pa flow rate 0 m³/h
|
|
| connections - terminals |
Terminal block
|
|
| IP degree of protection |
IP54
|
|
| device composition |
1 axial motor
2 protective grille: on the front and rear surfaces 1 filter: front of axial motor 1 outlet grille: front 1 cut-out template |
|
| condition of use |
Filter must be cleaned and replaced regularly
Surrounding environment must be relatively clean Outside temperature must be 5 °C lower than inside temperature Overfrequent filter replacement should be avoided Flow rates depends on the work point, see ProClima software |
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
3.713 kg
|
|
| Package 1 Height |
23 cm
|
|
| Package 1 width |
34.2 cm
|
|
| Package 1 Length |
32.2 cm
|
|
| Unit Type of Package 2 |
S04
|
|
| Number of Units in Package 2 |
1
|
|
| Package 2 Weight |
4.35 kg
|
|
| Package 2 Height |
30 cm
|
|
| Package 2 width |
40 cm
|
|
| Package 2 Length |
60 cm
|
| REACh Regulation | ||
|---|---|---|
| REACh free of SVHC |
Yes
|
|
| EU RoHS Directive |
Compliant
EU RoHS Declaration |
|
| Mercury free |
Yes
|
|
| RoHS exemption information | ||
| China RoHS Regulation |
China RoHS declaration
Product out of China RoHS scope. Substance declaration for your information |
| Warranty |
18 months
|
|---|
-
ClimaSys CV NSYCVF560M230PF
