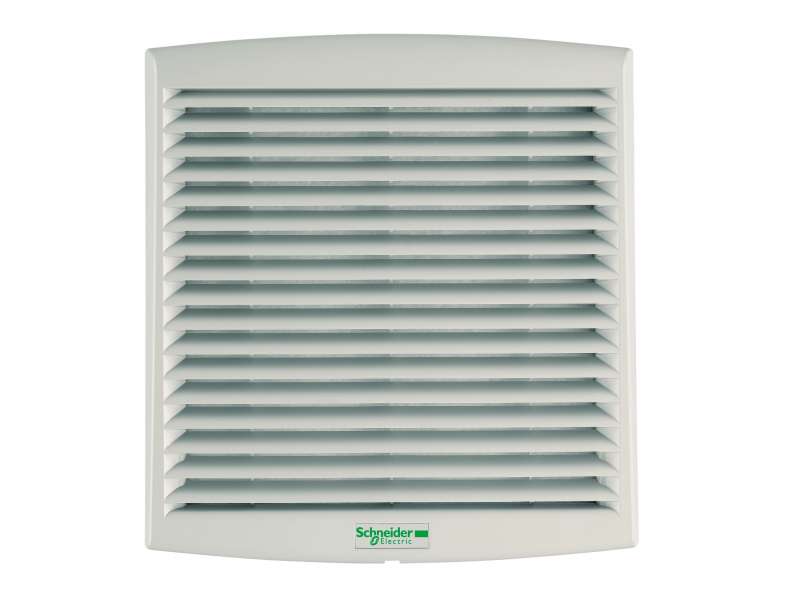

Schneider Electric ClimaSys ventilator IP54, 38m3/h, 115V, sa izlaznom rešetkom i filterom G2;NSYCVF38M115PF
ClimaSys forced vent. IP54, 38m3/h, 115V, with outlet grille and filter G2...
VAT-exclusive price: 9.457,00 |
VAT-inclusive price: 11.348,40 |
ClimaSys forced vent. IP54, 38m3/h, 115V, with outlet grille and filter G2
| range |
ClimaSys
|
|
|---|---|---|
| product name |
ClimaSys CV
|
|
| product or component type |
Fan
|
|
| Type of filter |
Standard
|
|
| Flow rate |
Free flow rate with standard filter: 38 m3/h at 50 Hz
Free flow rate with standard filter: 39 m3/h at 60 Hz |
|
| [Us] rated supply voltage |
75...125 V
|
|
| input voltage |
115 V 50/60 Hz
|
| Absorbed power |
3.3 W 50 Hz
3.5 W 60 Hz |
|
|---|---|---|
| [In] rated current |
0.16 A 50 Hz
0.16 A 60 Hz |
|
| Noise level < at |
40…41 dB
|
|
| bearing type |
Ball
|
|
| height |
137 mm external:
|
|
| width |
117 mm external:
|
|
| depth |
49 mm external:
|
|
| cut-out dimensions |
92 x 92 mm
|
|
| net weight |
0.22 kg
|
|
| material |
Outlet grille: injected thermoplastic (ASA PC)
|
|
| colour |
Outlet grille: grey (RAL 7035)
|
|
| ambient air temperature for operation |
-10…70 °C
|
|
| ambient air temperature for storage |
-40…70 °C
|
|
| maximum pressure |
29 Pa flow rate 0 m³/h
|
|
| connections - terminals |
Cable
|
|
| IP degree of protection |
IP54
|
|
| device composition |
1 axial motor
2 protective grille: on the front and rear surfaces 1 filter: front of axial motor 1 outlet grille: front 1 cut-out template |
|
| condition of use |
Outside temperature must be 5 °C lower than inside temperature
Flow rates depends on the work point, see ProClima software Overfrequent filter replacement should be avoided Surrounding environment must be relatively clean Filter must be cleaned and replaced regularly |
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
300 g
|
|
| Package 1 Height |
7.5 cm
|
|
| Package 1 width |
12.5 cm
|
|
| Package 1 Length |
14.5 cm
|
| REACh free of SVHC |
Yes
|
|
|---|---|---|
| EU RoHS Directive |
Not compliant
|
|
| Mercury free |
Yes
|
|
| China RoHS Regulation |
China RoHS declaration
Product out of China RoHS scope. Substance declaration for your information |
| Warranty |
18 months
|
|---|
-
ClimaSys CV NSYCVF38M115PF
