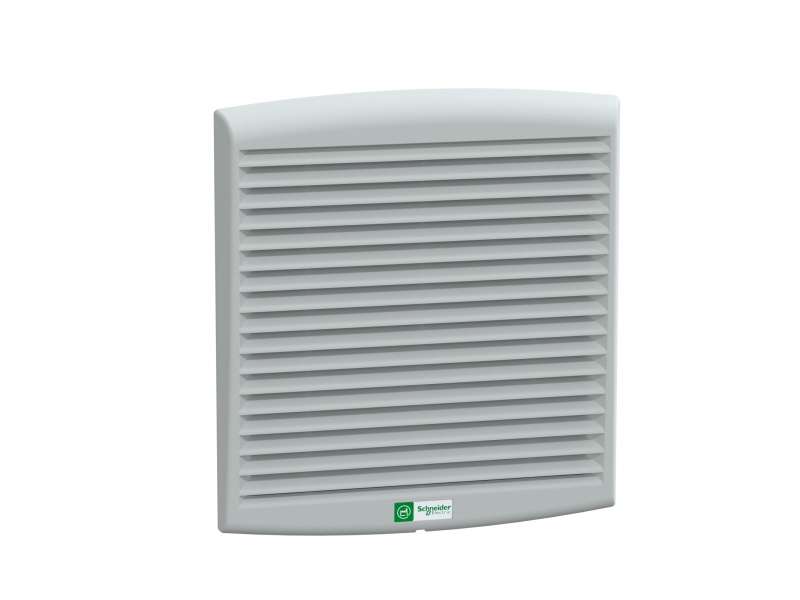

Schneider Electric ClimaSys ventilator IP54, 300m3/h, 24V DC, sa izlaznom rešetkom i filterom G2; NSYCVF300M24DPF
ClimaSys forced vent. IP54, 300m3/h, 24V DC, with outlet grille and filter G2...
Price on request
ClimaSys forced vent. IP54, 300m3/h, 24V DC, with outlet grille and filter G2
| range |
ClimaSys
|
|
|---|---|---|
| product name |
ClimaSys CV
|
|
| product or component type |
Fan
|
|
| Type of filter |
Standard
|
|
| Flow rate |
Free flow rate with standard filter: 262 m3/h at 50 Hz
|
|
| [Us] rated supply voltage |
12...30 V
|
|
| input voltage |
24 V DC
|
| Absorbed power |
13 W 50 Hz
|
|
|---|---|---|
| [In] rated current |
0.53 A 50 Hz
|
|
| Noise level < at |
55…56 dB
|
|
| bearing type |
Ball
|
|
| height |
268 mm external:
|
|
| width |
248 mm external:
|
|
| depth |
103.4 mm external:
|
|
| cut-out dimensions |
223 x 223 mm
|
|
| net weight |
1.1 kg
|
|
| material |
Outlet grille: injected thermoplastic (ASA PC)
|
|
| colour |
Outlet grille: grey (RAL 7035)
|
|
| ambient air temperature for operation |
-10…70 °C
|
|
| ambient air temperature for storage |
-40…70 °C
|
|
| maximum pressure |
158 Pa flow rate 0 m³/h
|
|
| connections - terminals |
Faston connector
|
|
| IP degree of protection |
IP54
|
|
| device composition |
1 axial motor
2 protective grille: on the front and rear surfaces 1 filter: front of axial motor 1 outlet grille: front 1 cut-out template 1 power cord |
|
| condition of use |
Overfrequent filter replacement should be avoided
Outside temperature must be 5 °C lower than inside temperature Flow rates depends on the work point, see ProClima software Filter must be cleaned and replaced regularly Surrounding environment must be relatively clean |
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
1.31 kg
|
|
| Package 1 Height |
18.5 cm
|
|
| Package 1 width |
25 cm
|
|
| Package 1 Length |
27.5 cm
|
| REACh free of SVHC |
Yes
|
|
|---|---|---|
| EU RoHS Directive |
Not compliant
|
|
| Mercury free |
Yes
|
|
| China RoHS Regulation |
China RoHS declaration
Product out of China RoHS scope. Substance declaration for your information |
| Warranty |
18 months
|
|---|
-
ClimaSys CV NSYCVF300M24DPF
