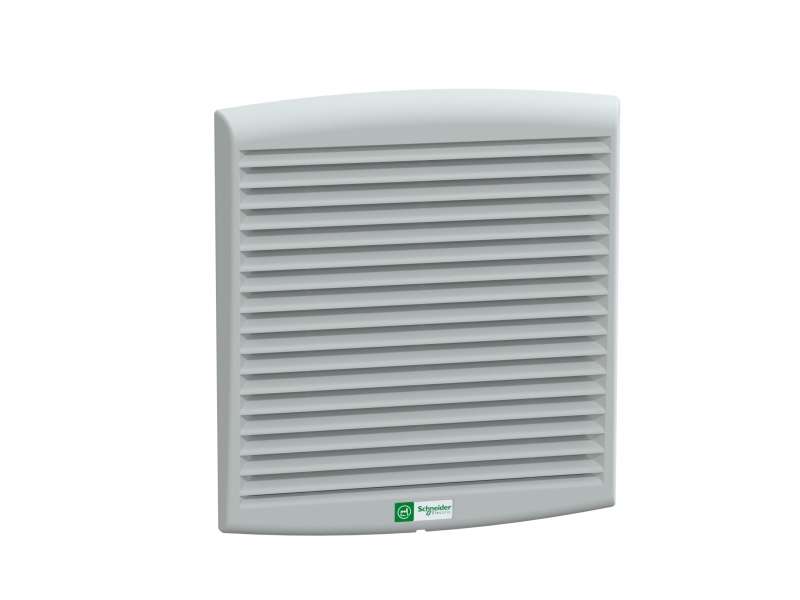

Schneider Electric ClimaSys ventilator IP54, 165m3/h, 24V DC, sa izlaznom rešetkom i filterom G2; NSYCVF165M24DPF
ClimaSys forced vent. IP54, 165m3/h, 24V DC, with outlet grille and filter G2...
VAT-exclusive price: 20.641,00 |
VAT-inclusive price: 24.769,20 |
ClimaSys forced vent. IP54, 165m3/h, 24V DC, with outlet grille and filter G2
| range |
ClimaSys
|
|
|---|---|---|
| product name |
ClimaSys CV
|
|
| product or component type |
Fan
|
|
| Type of filter |
Standard
|
|
| Flow rate |
Free flow rate with standard filter: 190 m3/h at 50 Hz
|
|
| [Us] rated supply voltage |
10...27.6 V
|
|
| input voltage |
24 V DC
|
| Absorbed power |
8 W 50 Hz
|
|
|---|---|---|
| [In] rated current |
0.3 A 50 Hz
|
|
| Noise level < at |
50…51 dB
|
|
| bearing type |
Ball
|
|
| height |
268 mm external:
|
|
| width |
248 mm external:
|
|
| depth |
104 mm external:
|
|
| cut-out dimensions |
223 x 223 mm
|
|
| net weight |
0.81 kg
|
|
| material |
Outlet grille: injected thermoplastic (ASA PC)
|
|
| colour |
Outlet grille: grey (RAL 7035)
|
|
| ambient air temperature for operation |
-10…70 °C
|
|
| ambient air temperature for storage |
-40…70 °C
|
|
| maximum pressure |
50 Pa flow rate 0 m³/h
|
|
| connections - terminals |
Faston connector
|
|
| IP degree of protection |
IP54
|
|
| device composition |
1 axial motor
2 protective grille: on the front and rear surfaces 1 filter: front of axial motor 1 outlet grille: front 1 cut-out template 1 power cord |
|
| condition of use |
Surrounding environment must be relatively clean
Flow rates depends on the work point, see ProClima software Overfrequent filter replacement should be avoided Filter must be cleaned and replaced regularly Outside temperature must be 5 °C lower than inside temperature |
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
1.06 kg
|
|
| Package 1 Height |
18.5 cm
|
|
| Package 1 width |
25 cm
|
|
| Package 1 Length |
27.5 cm
|
| REACh Regulation | ||
|---|---|---|
| REACh free of SVHC |
Yes
|
|
| EU RoHS Directive |
Compliant
EU RoHS Declaration |
|
| Mercury free |
Yes
|
|
| RoHS exemption information | ||
| China RoHS Regulation |
China RoHS declaration
Product out of China RoHS scope. Substance declaration for your information |
| Warranty |
18 months
|
|---|
-
ClimaSys CV NSYCVF165M24DPF
