Schneider Electric Climasys ventilator 65 m3/h, 230V, sa izlaznom plastičnom rešetkom i filterom; NSYCVF65M230PF
Climasys forced vent. 65 m3/hour, 230V, with outlet grille plastic and filter...
VAT-exclusive price: 8.523,00 |
VAT-inclusive price: 10.227,60 |
Climasys forced vent. 65 m3/hour, 230V, with outlet grille plastic and filter
| range |
ClimaSys
|
|
|---|---|---|
| product name |
ClimaSys CV
|
|
| product or component type |
Fan
|
|
| Type of filter |
Standard
|
|
| Flow rate |
Free flow rate without filter or grille: 170 m3/h
Free flow rate with standard filter: 65 m3/h at 50 Hz |
|
| input voltage |
230 V 50/60 Hz
|
| height |
124 mm external:
|
|
|---|---|---|
| width |
124 mm external:
|
|
| depth |
55 mm external:
|
|
| cut-out dimensions |
Ø 108 mm
|
|
| material |
Outlet grille: ABS (acrylonitrile butadiene-styrene)

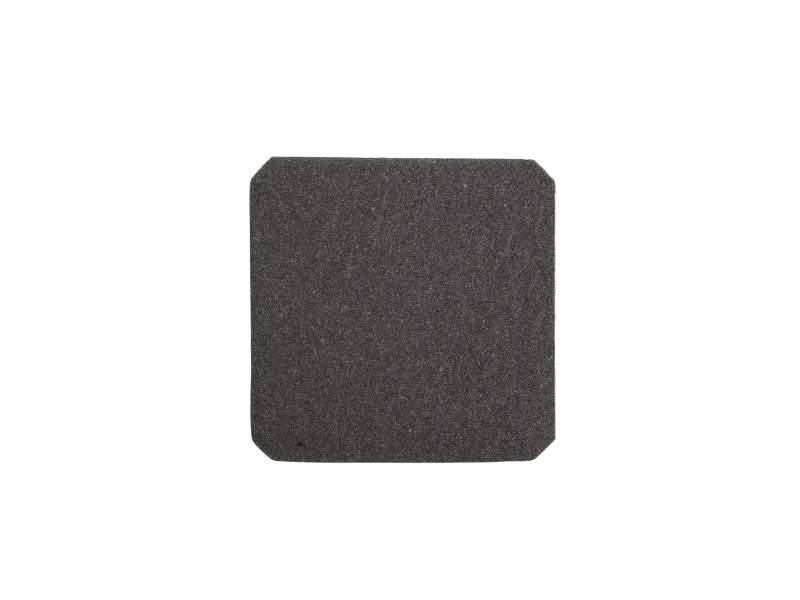

Filter: polyurethane foam |
|
| colour |
Outlet grille: black
Filter: black |
|
| IP degree of protection |
IP20
|
|
| device composition |
1 axial motor
2 protective grille: on the front and rear surfaces 1 filter: front of axial motor 1 outlet grille: front |
| Package 1 Weight |
0.760 kg
|
|
|---|---|---|
| Package 1 Height |
65.000 mm
|
|
| Package 1 width |
150.000 mm
|
|
| Package 1 Length |
165.000 mm
|
| REACh free of SVHC |
Yes
|
|
|---|---|---|
| EU RoHS Directive |
Not compliant
|
|
| Mercury free |
Yes
|
|
| China RoHS Regulation |
China RoHS declaration
Product out of China RoHS scope. Substance declaration for your information |
| Warranty |
18 months
|
|---|
-
ClimaSys CV NSYCVF65M230PF
