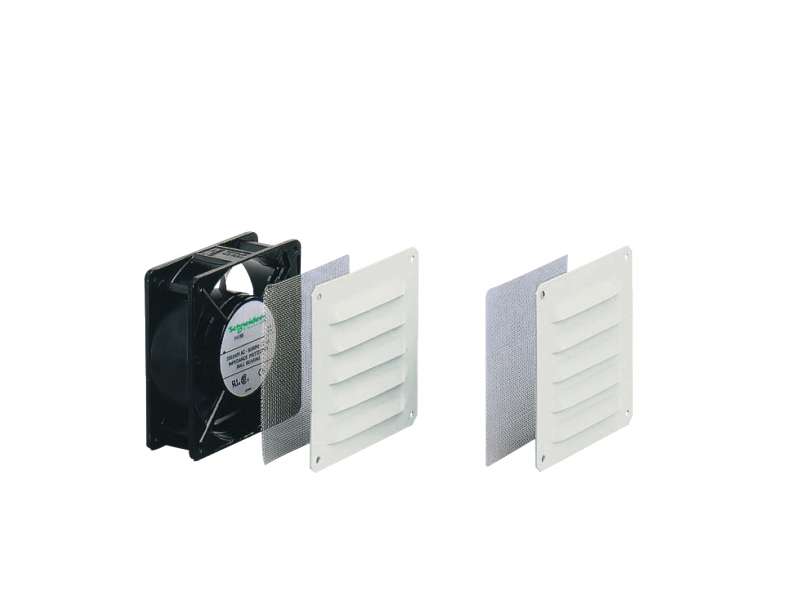

Schneider Electric Climasys ventilator 54 m3/h, 230V, 2 metalne rešetke i 2 filtera za insekte; NSYCVF54M230MM2
Climasys forced vent. 54 m3/h, 230V, 2 metal grilles and 2 anti-insect filters...
VAT-exclusive price: 11.780,00 |
VAT-inclusive price: 14.136,00 |
Climasys forced vent. 54 m3/h, 230V, 2 metal grilles and 2 anti-insect filters
| range |
ClimaSys
|
|
|---|---|---|
| product name |
ClimaSys CV
|
|
| product or component type |
Fan
|
|
| Type of filter |
Anti-insect
|
|
| Flow rate |
Free flow rate without filter or grille: 170 m3/h
Overall flow rate: 54 m3/h at 50 Hz |
|
| input voltage |
230 V 50/60 Hz
|
| height |
120 mm external:
|
|
|---|---|---|
| width |
120 mm external:
|
|
| depth |
38 mm external:
|
|
| cut-out dimensions |
96 x 96 mm
|
|
| material |
Outlet grille: steel
Filter: stainless steel 304L |
|
| colour |
Outlet grille: grey (RAL 7035)
|
|
| IP degree of protection |
IP33
|
|
| device composition |
1 axial motor
1 power cord 2 anti-insect filter 2 metal louvre |
| Package 1 Weight |
0.967 kg
|
|
|---|---|---|
| Package 1 Height |
170.000 mm
|
|
| Package 1 width |
150.000 mm
|
|
| Package 1 Length |
70.000 mm
|
| REACh Regulation | ||
|---|---|---|
| REACh free of SVHC |
Yes
|
|
| EU RoHS Directive |
Compliant
EU RoHS Declaration |
|
| Mercury free |
Yes
|
|
| RoHS exemption information | ||
| China RoHS Regulation |
China RoHS declaration
Product out of China RoHS scope. Substance declaration for your information |
| Warranty |
18 months
|
|---|
-
ClimaSys CV NSYCVF54M230MM2
