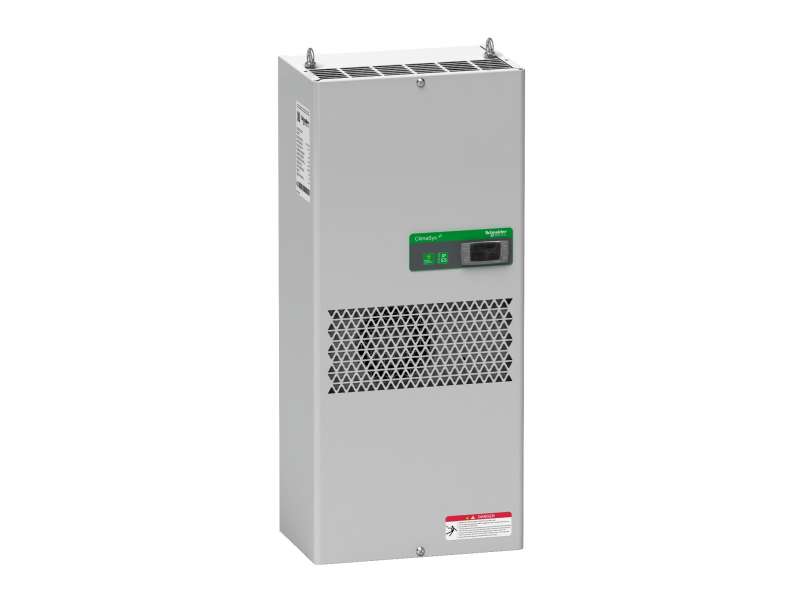

Schneider Electric ClimaSys standardna bočna rashladna jedinica - 1000W na 230 V; NSYCU1K
ClimaSys standard cooling unit side of enclosure - 1000W at 230 V...
VAT-exclusive price: 257.387,00 |
VAT-inclusive price: 308.864,40 |
ClimaSys standard cooling unit side of enclosure - 1000W at 230 V
| Lead time |
Usually Ships within 4 Weeks
|
|---|
| range |
ClimaSys
|
|
|---|---|---|
| product name |
CU
|
|
| product or component type |
Cooling unit
|
|
| mounting type |
Side
|
|
| type of installation |
Indoor
|
|
| product destination |
For enclosure
|
|
| mounting mode |
By screws
|
|
| input voltage |
230 V 50/60 Hz
|
|
| network number of phases |
1 phase
|
|
| cooling power |
1000 W 50/60 Hz L35-L35
790 W 50/60 Hz L35-L50 |
| height |
783 mm
|
|
|---|---|---|
| width |
348 mm
|
|
| depth |
215 mm
|
|
| [In] rated current |
3 A
|
|
| inrush current |
10.5 A
|
|
| power consumption in W |
570 W at 50/60 Hz, L35-L35
650 W at 50/60 Hz, L35-L50 |
|
| energy efficiency ratio |
1.8
|
|
| control type |
Electronic controller
|
|
| temperature setting range |
20…55 °C at 50 Hz
20…50 °C at 60 Hz |
|
| ambient air temperature for operation |
20…46 °C inside the enclosure:
55 °C maximum: 20…55 °C at 50 Hz outside the enclosure: 20…50 °C at 60 Hz outside the enclosure: |
|
| Noise level |
65 dB conforming to EN/ISO 3746
|
|
| pressure |
25 bar
|
|
| Flow rate |
Internal circuit: 330 m3/h at 50/60 Hz
External circuit: 570 m3/h at 50/60 Hz |
|
| net weight |
28 kg
|
|
| cooling gas type |
R134a (0.23 kg)
|
|
| Type of filter |
Optional external circuit filter
|
|
| protection type |
Thermal protection: T 6 A
Short-circuit protection (magnetic): |
|
| material |
Steel
|
|
| colour |
Grey (RAL 7035)
|
| product certifications |
CE
|
|
|---|---|---|
| directives |
2004/108/EC - electromagnetic compatibility
2006/42/EC - machinery 2006/95/EC - low voltage directive |
|
| standards |
EN 60335-2-40
EN 60335-1 EN 378 EN/ISO 12100 EN 60204-1 |
|
| IP degree of protection |
IP34 conforming to IEC 60529 (on the internal circuit)
IP55 conforming to IEC 60529 (on the external circuit) |
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
28 kg
|
|
| Package 1 Height |
78.3 cm
|
|
| Package 1 width |
21.5 cm
|
|
| Package 1 Length |
34.8 cm
|
| REACh free of SVHC |
Yes
|
|
|---|---|---|
| EU RoHS Directive |
Compliant
EU RoHS Declaration |
|
| Mercury free |
Yes
|
|
| RoHS exemption information | ||
| China RoHS Regulation |
China RoHS declaration
Product out of China RoHS scope. Substance declaration for your information |
|
| WEEE |
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
|
-
ClimaSys CU NSYCU1K
