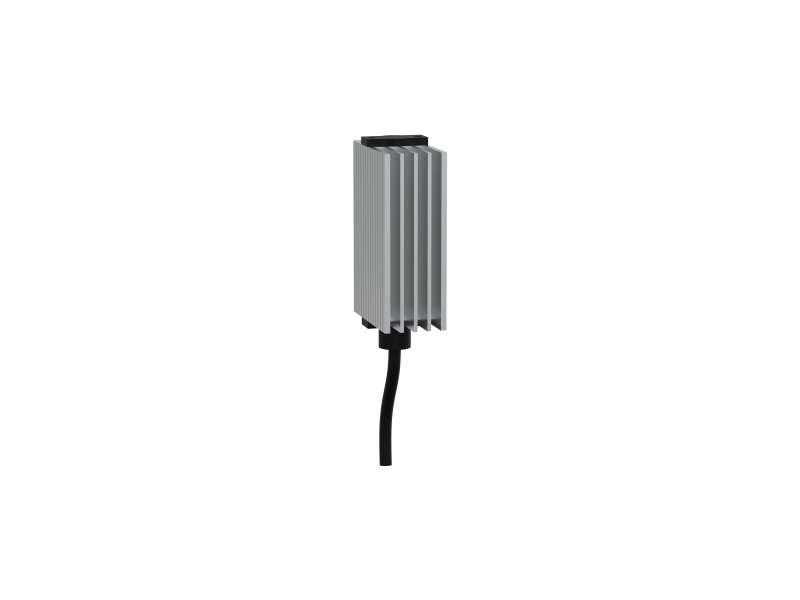

Schneider Electric ClimaSys PTC heating resistance 10W, 12-24V;

ClimaSys PTC heating resistance 10W, 12-24V...

Brand: Schneider Electric
Product Code: NSYCR10WU1
Availability: Check availability

VAT-exclusive price: 7.110,00

VAT-inclusive price: 8.532,00

Qnt:

Description
Specification

ClimaSys PTC heating resistance 10W, 12-24V

Main
range	ClimaSys
product name	ClimaSys CR
product or component type	Resistance heater
power range	10 W
input voltage	12...24 V DC
electrical connection	Cable 2 x 0.75 mm² length: 300 mm

Complementary
operating position	Vertical
ambient air temperature for operation	-40…70 °C
IP degree of protection	IP20
product certifications	UL VDE
material	Body: extruded aluminium
height	85 mm external:
width	25 mm external:
depth	57 mm external:
condition of use	Electrical protection is needed Air sealed enclosure Heaters must be installed with a thermal controller
fixing mode	By clips
mounting support	35 mm DIN rail

Packing Units
Unit Type of Package 1	PCE
Package 1 Length	13 cm
Number of Units in Package 1	1
Package 2 Width	40.5 cm
Package 2 Height	21 cm
Package 2 Weight	7 kg
Package 1 Width	8 cm
Package 1 Height	6.5 cm
Package 1 Weight	120 g
Number of Units in Package 2	50
Unit Type of Package 2	PAL
Package 2 Length	30 cm
