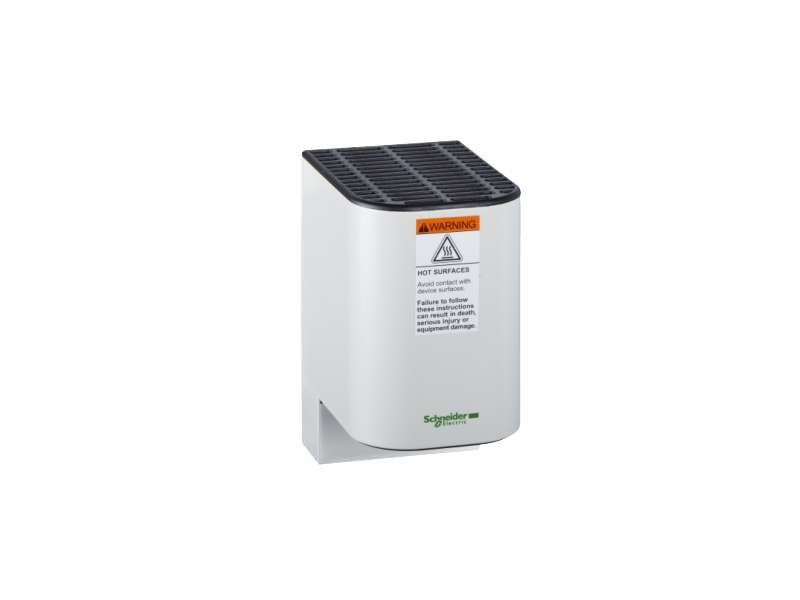

Schneider Electric ClimaSys PTC grejač 50W, 12-24V izolovan;NSYCR50WU1C

ClimaSys PTC heating resistance 50W, 12-24V insulate...

Brand: Schneider Electric
Product Code: NSYCR50WU1C
Availability: Check availability

VAT-exclusive price: 12.495,00

VAT-inclusive price: 14.994,00

Qnt:

Description
Specification

ClimaSys PTC heating resistance 50W, 12-24V insulate

Main
range	ClimaSys
product name	ClimaSys CR
product or component type	Resistance heater
power range	50 W
input voltage	12...24 V DC
electrical connection	4 screw terminals 2.5 mm²

Complementary
operating position	Vertical
ambient air temperature for operation	-40…70 °C
IP degree of protection	IP20
electrical insulation class	Class II
product certifications	UL VDE
material	Body: extruded aluminium Cover: plastic
height	98 mm external:
width	38 mm external:
depth	75 mm external:
condition of use	Air sealed enclosure Heaters must be installed with a thermal controller Electrical protection is needed
fixing mode	By clips
mounting support	35 mm DIN rail

Packing Units
Unit Type of Package 1	PCE
Package 1 Length	13 cm
Number of Units in Package 1	1
Package 2 Width	9 cm
Package 2 Height	6 cm
Package 2 Weight	360 g
Package 1 Width	10 cm
Package 1 Height	7 cm
Package 1 Weight	360 g
Number of Units in Package 2	1
Unit Type of Package 2	CAR
Package 2 Length	11 cm
