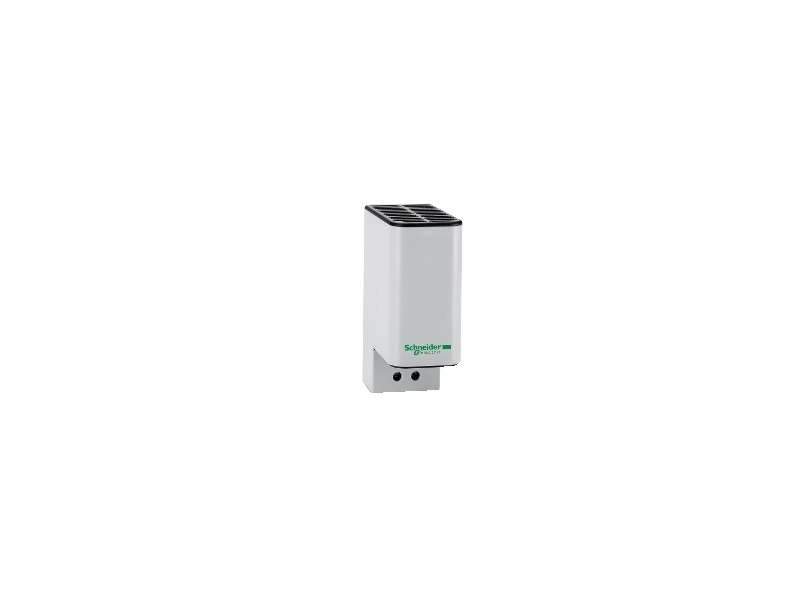

Schneider Electric ClimaSys PTC grejač 20W,110-250V izolovan;NSYCR20WU2C
ClimaSys PTC heating resistance 20W,110-250V insulate...
VAT-exclusive price: 7.532,00 |
VAT-inclusive price: 9.038,40 |
ClimaSys PTC heating resistance 20W,110-250V insulate
| range | ClimaSys |
|---|---|
| product name | ClimaSys CR |
| product or component type | Resistance heater |
| power range | 20 W |
| input voltage | 110...250 V AC 50/60 Hz |
| electrical connection | 4 screw terminals 2.5 mm² |
| operating position | Vertical |
|---|---|
| ambient air temperature for operation | -40…70 °C |
| IP degree of protection | IP20 |
| electrical insulation class | Class II |
| product certifications |
VDE UL |
| material |
Body: extruded aluminium Cover: plastic |
| height | 98 mm external: |
| width | 38 mm external: |
| depth | 75 mm external: |
| condition of use |
Heaters must be installed with a thermal controller Air sealed enclosure Electrical protection is needed |
| fixing mode | By clips |
| mounting support | 35 mm DIN rail |
| Unit Type of Package 1 | PCE |
|---|---|
| Package 1 Length | 11.0 cm |
| Number of Units in Package 1 | 1 |
| Package 1 Width | 8.0 cm |
| Package 1 Height | 4.5 cm |
| Package 1 Weight | 205.0 g |
| Warranty | 18 months |
|---|
