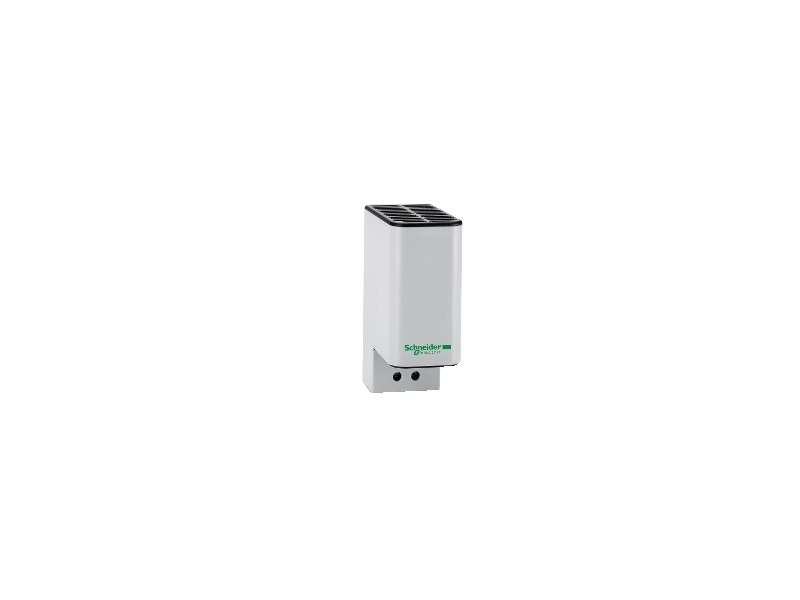

Schneider Electric ClimaSys PTC grejač 10W, 12-24V izolovan;NSYCR10WU1C

ClimaSys PTC heating resistance 10W, 12-24V insulate...

Brand: Schneider Electric
Product Code: NSYCR10WU1C
Availability: Check availability

VAT-exclusive price: 8.123,00

VAT-inclusive price: 9.747,60

Qnt:

Description
Specification

ClimaSys PTC heating resistance 10W, 12-24V insulate

Main
range	ClimaSys
product name	ClimaSys CR
product or component type	Resistance heater
power range	10 W
input voltage	12...24 V DC
electrical connection	2 screw terminals 2.5 mm²

Complementary
operating position	Vertical
ambient air temperature for operation	-40…70 °C
IP degree of protection	IP20
electrical insulation class	Class II
product certifications	VDE UL
material	Body: extruded aluminium Cover: plastic
height	98 mm external:
width	38 mm external:
depth	75 mm external:
condition of use	Air sealed enclosure Heaters must be installed with a thermal controller Electrical protection is needed
fixing mode	By clips
mounting support	35 mm DIN rail

Packing Units
Unit Type of Package 1	PCE
Package 1 Length	11.5 cm
Number of Units in Package 1	1
Package 2 Width	29 cm
Package 2 Height	16 cm
Package 2 Weight	14.08 kg
Package 1 Width	8 cm
Package 1 Height	4.5 cm
Package 1 Weight	176 g
Number of Units in Package 2	80
Unit Type of Package 2	PAL
Package 2 Length	37 cm
