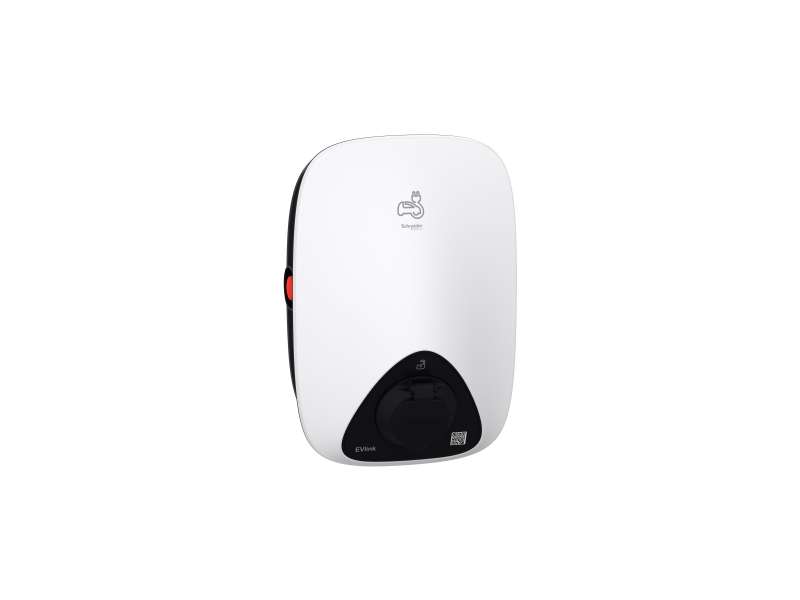

Schneider Electric Charging station, EVlink Home, 1P+N, 1xT2, 3.7kW, 16A, with RDC-DD; EVH4S03N2
Charging station, EVlink Home, 1P+N, 1xT2, 3.7kW, 16A, with RDC-DD...
VAT-exclusive price: 110.920,00 |
VAT-inclusive price: 133.104,00 |
Charging station, EVlink Home, 1P+N, 1xT2, 3.7kW, 16A, with RDC-DD
| Range | EVlink |
|---|---|
| Product name | EVlink Home |
| Product or component type | Charging station |
| poles description | 1P + N |
| Mounting mode | Wall-mounted |
| Offer type | Basic |
| Max power | 3.7 kW 16 A 230 V |
| Number of charge point | 1 |
| Connection to the vehicle | Socket-outlet T2 front face |
| Quantity per set | Set of 1 |
| rated supply voltage | 230 V AC 50 Hz +/- 10 % |
|---|---|
| earthing system |
TT TN-S |
| Number of inputs | 1 |
| input type | Auxiliary for dynamic energy management |
| control type | Red 1 emergency stop, function: 1 push-button |
| local signalling | Red, green and blue 1 LED, function: status indication |
| Protection type | Earth-leakage protection |
| Height | 409 mm |
| Width | 282 mm |
| Depth | 148 mm |
| Net weight | 4.5 kg |
| colour | White (RAL 9003) |
| Standards |
EN 61851 IEC 61851-1 EN 61000-6-1 EN 61000-6-3 |
| product certifications |
CE UKCA |
| Maximum supply current | 16 A |
| IP degree of protection | IP54 conforming to EN/IEC 60529 |
|---|---|
| IK degree of protection | IK10 conforming to IEC 62262 |
| ambient air temperature for operation | -30…50 °C |
| Ambient air temperature for storage | -40…85 °C |
| Relative humidity | 5…95 % |
| operating altitude | 0...2000 m |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 22.400 cm |
| Package 1 Width | 39.700 cm |
| Package 1 Length | 49.200 cm |
| Package 1 Weight | 5.173 kg |
| Unit Type of Package 2 | P12 |
| Number of Units in Package 2 | 16 |
| Package 2 Height | 101.000 cm |
| Package 2 Width | 80.000 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 100.000 kg |
