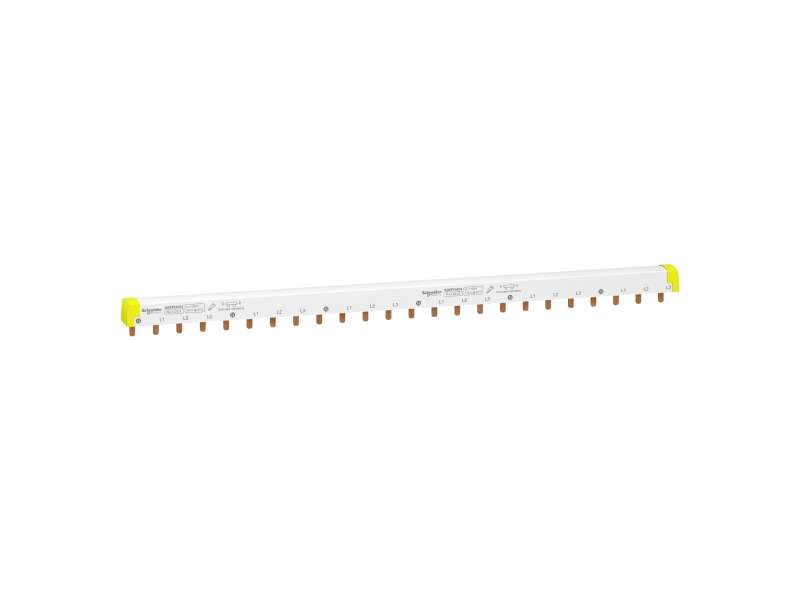

Schneider Electric Češljasta sabirnica - lako sečenje - Acti 9 4P 24 modula 100A
Acti9 - comb busbar - 3L+N - 18 mm pitch - 24 modules - 100 A...
VAT-exclusive price: 3.820,00 |
VAT-inclusive price: 4.584,00 |
Acti9 - comb busbar - 3L+N - 18 mm pitch - 24 modules - 100 A
| range | Acti 9 |
|---|---|
| product or component type | Comb busbar |
| accessory / separate part category | Connection accessory |
| lines description | 3L + N |
| Length in 18 mm modules | 24 |
| number of ways | 6 ways N + 3 L |
|---|---|
| poles configuration for 1 way |
1 x 3P + N 1 x 4P |
| connection pitch | 0.71 in (18 mm) |
| connector type | Tooth |
| distance between way | 2.83 in (72 mm) |
| marking | N L1 L2 L3 |
| insulation | Insulated |
| device presentation | Cuttable |
| [Ie] rated operational current | 100 A 104 °F (40 °C) |
| [Ue] rated operational voltage | 415 V AC |
| [Ui] rated insulation voltage | 500 V AC IEC 61439-2 |
| mounting mode | Horizontal |
| mounting location |
Top or bottom tunnel type terminals Top or bottom double terminal |
| 9 mm pitches | 48 |
| width | 16.93 in (430 mm) |
| color | White (RAL 9003) |
| range compatibility |
Acti 9 iC60 Acti 9 iK60 Acti 9 iID Acti 9 iID K Acti 9 iSW Acti 9 iSW-NA Multi 9 C60 |
| standards |
IEC 60947-7-1 IEC 61439-2 |
|---|---|
| fire resistance | 1760 °F (960 °C) 30 s ) IEC 60695-2-1 |
| pollution degree | 3 IEC 60947-7-1 |
| IP degree of protection | IP20 with end-pieces and tooth covers |
| Category | 00908 - C60N SUPPLEMENTARY PROTECTORS |
|---|---|
| Discount Schedule | DE2 |
| GTIN | 03606480485077 |
| Nbr. of units in pkg. | 1 |
| Package weight(Lbs) | 9.88 oz (280 g) |
| Returnability | No |
| Country of origin | DE |
| Unit Type of Package 1 | PCE |
|---|---|
| Package 1 Height | 2.20 in (5.6 cm) |
| Package 1 width | 3.31 in (8.4 cm) |
| Package 1 Length | 18.35 in (46.6 cm) |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 5 |
| Package 2 Weight | 3.55 lb(US) (1.61 kg) |
| Package 2 Height | 2.28 in (5.8 cm) |
| Package 2 width | 18.27 in (46.4 cm) |
| Package 2 Length | 3.54 in (9 cm) |
| Unit Type of Package 3 | S04 |
| Number of Units in Package 3 | 75 |
| Package 3 Weight | 54.29 lb(US) (24.624 kg) |
| Package 3 Height | 11.81 in (30 cm) |
| Package 3 width | 15.75 in (40 cm) |
| Package 3 Length | 23.62 in (60 cm) |
| Sustainable offer status | Green Premium product |
|---|---|
| REACh Regulation | REACh Declaration |
| REACh free of SVHC | Yes |
| EU RoHS Directive |
Compliant
EU RoHS Declaration |
| Toxic heavy metal free | Yes |
| Mercury free | Yes |
| RoHS exemption information | Yes |
| China RoHS Regulation |
China RoHS declaration
Pro-active China RoHS declaration (out of China RoHS legal scope)
|
| Environmental Disclosure | Product Environmental Profile |
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Warranty | 18 months |
|---|
-
Prisma G A9XPH424
