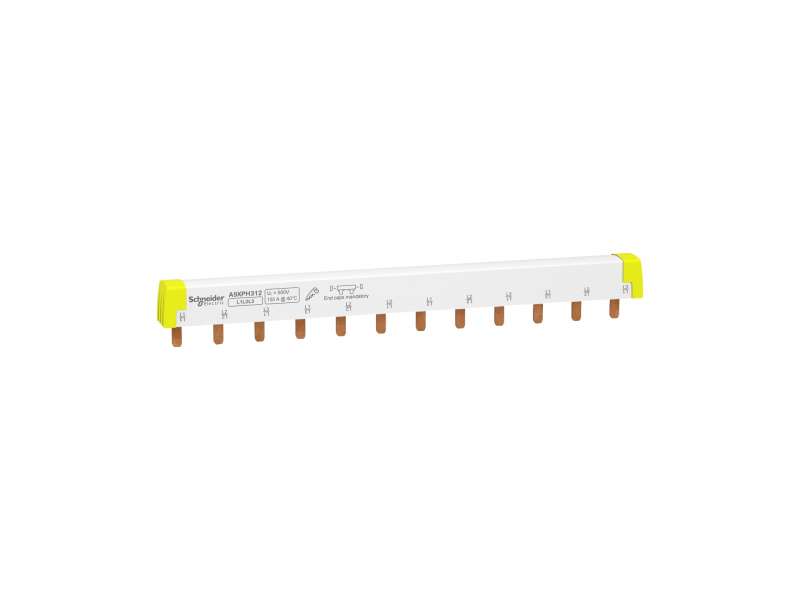

Schneider Electric Češljasta sabirnica - lako sečenje - Acti 9 3P 12 modula 100A
Acti9 - comb busbar - 3L - 18 mm pitch - 12 modules - 100A...
Price on request
Acti9 - comb busbar - 3L - 18 mm pitch - 12 modules - 100A
| range |
Acti 9
|
|
|---|---|---|
| product or component type |
Comb busbar
|
|
| accessory / separate part category |
Connection accessory
|
|
| lines description |
3L
|
|
| Length in 18 mm modules |
12
|
| number of ways |
4 ways 3 L
|
|
|---|---|---|
| poles configuration for 1 way |
1 x 3P
|
|
| connection pitch |
0.71 in (18 mm)
|
|
| connector type |
tooth
|
|
| distance between way |
2.13 in (54 mm)
|
|
| marking |
L1 L2 L3
|
|
| insulation |
Insulated
|
|
| device presentation |
Cuttable
|
|
| [Ie] rated operational current |
100 A 104 °F (40 °C)
|
|
| [Ue] rated operational voltage |
415 V AC
|
|
| [Ui] rated insulation voltage |
500 V AC IEC 61439-2
|
|
| mounting mode |
Horizontal
|
|
| mounting location |
Top or bottom on tunnel type terminals
Top or bottom on double terminal |
|
| 9 mm pitches |
24
|
|
| width |
8.66 in (220 mm)
|
|
| color |
White (RAL 9003)
|
|
| range compatibility |
Acti 9 iC60
Acti 9 iK60 Acti 9 iID Acti 9 iID K Acti 9 iSW Acti 9 iSW-NA Multi 9 C60 |
| standards |
IEC 60947-7-1
IEC 61439-2 |
|
|---|---|---|
| fire resistance |
1760 °F (960 °C) 30 s ) IEC 60695-2-1
|
|
| pollution degree |
3 conforming to IEC 60947-7-1
|
|
| IP degree of protection |
IP20 with end-pieces and tooth covers
|
| Category |
01078 - DE2 MISC
|
|
|---|---|---|
| Discount Schedule |
DE2
|
|
| GTIN |
00785901837442
|
|
| Nbr. of units in pkg. |
1
|
|
| Package weight(Lbs) |
0.23 lb(US) (0.10 kg)
|
|
| Returnability |
Yes
|
|
| Country of origin |
DE
|
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Package 1 Height |
1.18 in (3 cm)
|
|
| Package 1 width |
0.63 in (1.6 cm)
|
|
| Package 1 Length |
8.35 in (21.2 cm)
|
|
| Unit Type of Package 2 |
BB1
|
|
| Number of Units in Package 2 |
5
|
|
| Package 2 Weight |
21.41 oz (607 g)
|
|
| Package 2 Height |
2.36 in (6 cm)
|
|
| Package 2 width |
3.39 in (8.6 cm)
|
|
| Package 2 Length |
9.76 in (24.8 cm)
|
-
Prisma G A9XPH312
