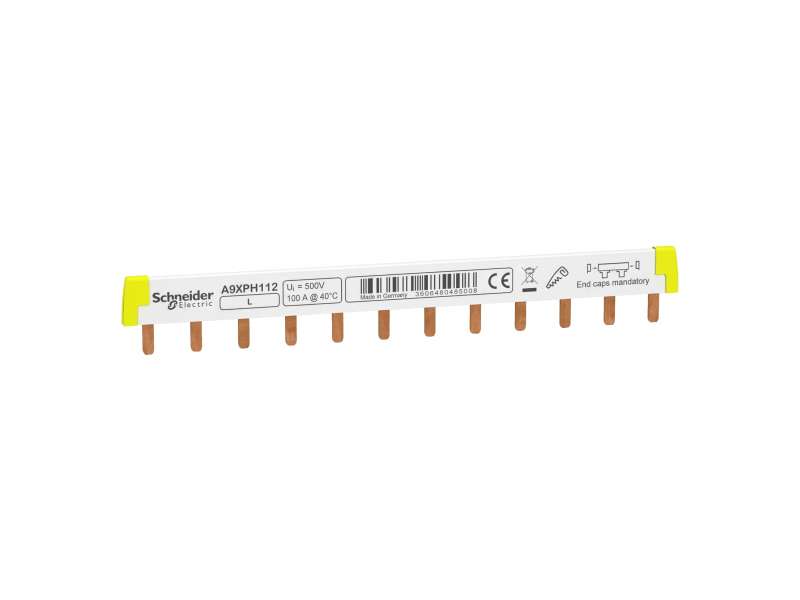

Schneider Electric Češljasta sabirnica - lako sečenje - Acti 9 1P 12 modula 100A

Acti9 - comb busbar - 1L - 18 mm pitch - 12 modules - 100A...

Brand: Schneider Electric
Product Code: A9XPH112
Availability: Check availability

VAT-exclusive price: 731,00

VAT-inclusive price: 877,20

Qnt:

Acti9 - comb busbar - 1L - 18 mm pitch - 12 modules - 100A

Main
range	Acti 9
product or component type	Comb busbar
accessory / separate part category	Connection accessory
lines description	1L
Length in 18 mm modules	12

Complementary
number of ways	12 ways 1 L
poles configuration for 1 way	1 x 1P
connection pitch	0.71 in (18 mm)
connector type	Tooth
distance between way	0.71 in (18 mm)
marking	L
insulation	Insulated
device presentation	Cuttable
[Ie] rated operational current	100 A 104 °F (40 °C)
[Ue] rated operational voltage	415 V AC
[Ui] rated insulation voltage	500 V AC IEC 61439-2
mounting mode	Horizontal
mounting location	Top or bottom tunnel type terminals Top or bottom double terminal
9 mm pitches	24
width	8.66 in (220 mm)
color	White (RAL 9003)
range compatibility	Acti 9 iC60 Acti 9 iK60 Acti 9 iID Acti 9 iID K Acti 9 iSW Acti 9 iSW-NA Multi 9 C60

Environment
standards	IEC 60947-7-1 IEC 61439-2
fire resistance	1760 °F (960 °C) 30 s ) IEC 60695-2-1
pollution degree	3 IEC 60947-7-1
IP degree of protection	IP20 with end-pieces and tooth covers

Ordering and shipping details
Category	00908 - C60N SUPPLEMENTARY PROTECTORS
Discount Schedule	DE2
GTIN	03606480485008
Nbr. of units in pkg.	1
Package weight(Lbs)	1.41 oz (40 g)
Returnability	Yes
Country of origin	DE

Packing Units
Unit Type of Package 1	PCE
Package 1 Height	2.36 in (6 cm)
Package 1 width	3.43 in (8.7 cm)
Package 1 Length	9.76 in (24.8 cm)

Offer Sustainability
Sustainable offer status	Green Premium product
REACh Regulation	REACh Declaration
REACh free of SVHC	Yes
EU RoHS Directive	Compliant EU RoHS Declaration
Toxic heavy metal free	Yes
Mercury free	Yes
RoHS exemption information	Yes
China RoHS Regulation	China RoHS declaration Pro-active China RoHS declaration (out of China RoHS legal scope)
Environmental Disclosure	Product Environmental Profile
WEEE	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
