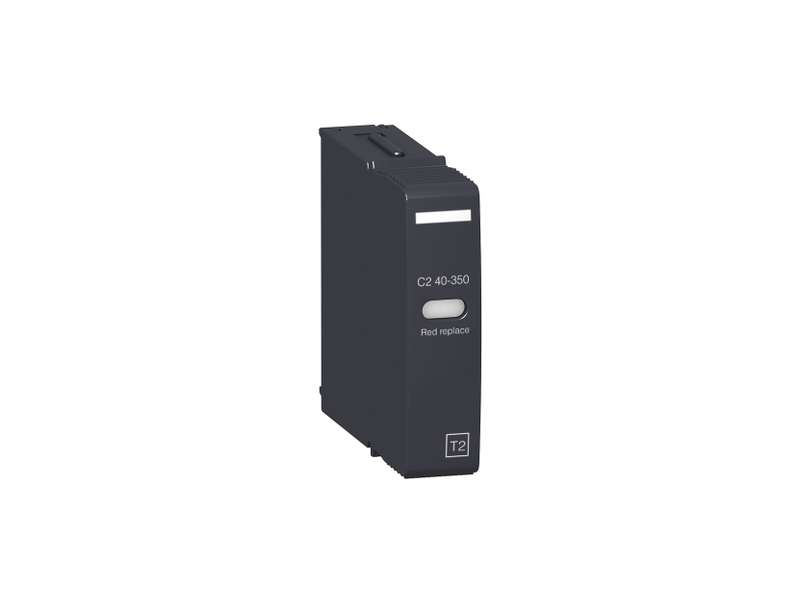

Schneider Electric Cartridge C2 40-350 for surge arrester PRD1;16316

cartridge C2 40-350 for surge arrester PRD1...

Brand: Schneider Electric
Product Code: 16316
Availability: Check availability

VAT-exclusive price: 29.973,00

VAT-inclusive price: 35.967,60

Qnt:

Description
Specification

cartridge C2 40-350 for surge arrester PRD1

Main
product or component type	Cartridge
device short name	C2 40-350
surge arrester type	Electrical distribution network

Complementary
surge arrester class type	Type 2
surge arrester technology	MOV
earthing system	TT TN
[Ue] rated operational voltage	230 V AC 50 Hz
nominal discharge current	20 kA
maximum discharge current	40 kA
[Uc] maximum continuous operating voltage	350 V
maximum [Up] voltage protection level	<1.4 kV type 2
local signalling	White/red flag
mounting mode	Plug-in
mounting support	Into SPD module
9 mm pitches	1.3
height	50 mm
width	12 mm
depth	57 mm
colour	Anthracite grey (RAL 7016)
material	PBT (polybutylene terephthalate)
response time	< 25 ns

Environment
standards	IEC 61643-1 EN 61643-11
product certifications	KEMA-KEUR
IP degree of protection	IP20 front face:
relative humidity	5…90 %
operating altitude	0...2000 m
ambient air temperature for operation	-25…60 °C
ambient air temperature for storage	-40…80 °C

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Weight	61.0 g
Package 1 Height	2.0 cm
Package 1 width	7.0 cm
Package 1 Length	9.5 cm
Unit Type of Package 2	S03
Number of Units in Package 2	108
Package 2 Weight	6.964 kg
Package 2 Height	30.0 cm
Package 2 width	30.0 cm
Package 2 Length	40.0 cm
