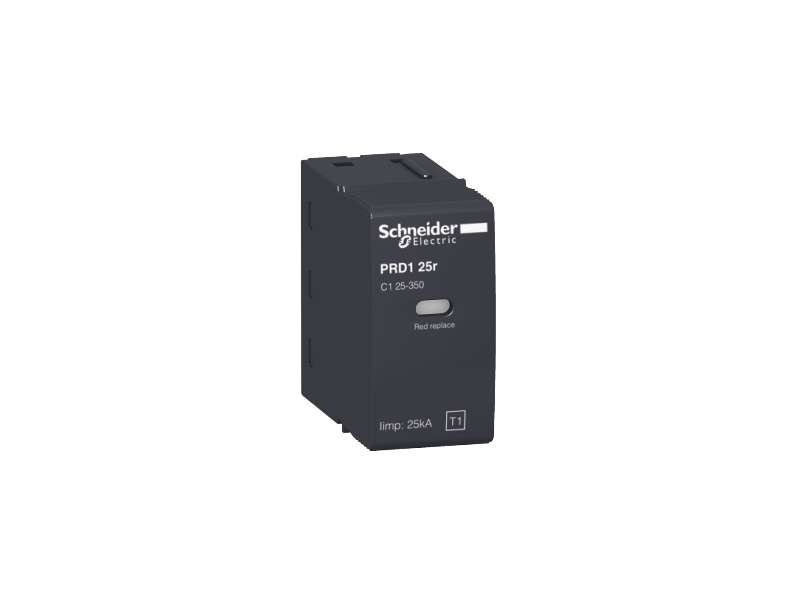

Schneider Electric Cartridge C1 25-350 for surge arrester PRD1;16315

cartridge C1 25-350 for surge arrester PRD1...

Brand: Schneider Electric
Product Code: 16315
Availability: Check availability

VAT-exclusive price: 30.572,00

VAT-inclusive price: 36.686,40

Qnt:

Description
Specification

cartridge C1 25-350 for surge arrester PRD1

Main
product or component type	Cartridge
device short name	C1 25-350
surge arrester type	Electrical distribution network

Complementary
surge arrester class type	Type 1
surge arrester technology	Spark gap
earthing system	TN TT
[Ue] rated operational voltage	230 V AC 50 Hz
nominal discharge current	25 kA
[Uc] maximum continuous operating voltage	350 V
maximum [Up] voltage protection level	<1.5 kV type 1
[If] follow current	25 kA
local signalling	White/red flag
mounting mode	Plug-in
mounting support	Into SPD module
9 mm pitches	2.5
height	50 mm
width	23 mm
depth	57 mm
colour	Anthracite grey (RAL 7016)
material	PBT (polybutylene terephthalate)
response time	< 100 ns

Environment
standards	IEC 61643-1 EN 61643-11
product certifications	KEMA-KEUR
IP degree of protection	IP20 front face:
relative humidity	5…90 %
operating altitude	0...2000 m
ambient air temperature for operation	-25…60 °C
ambient air temperature for storage	-40…80 °C
