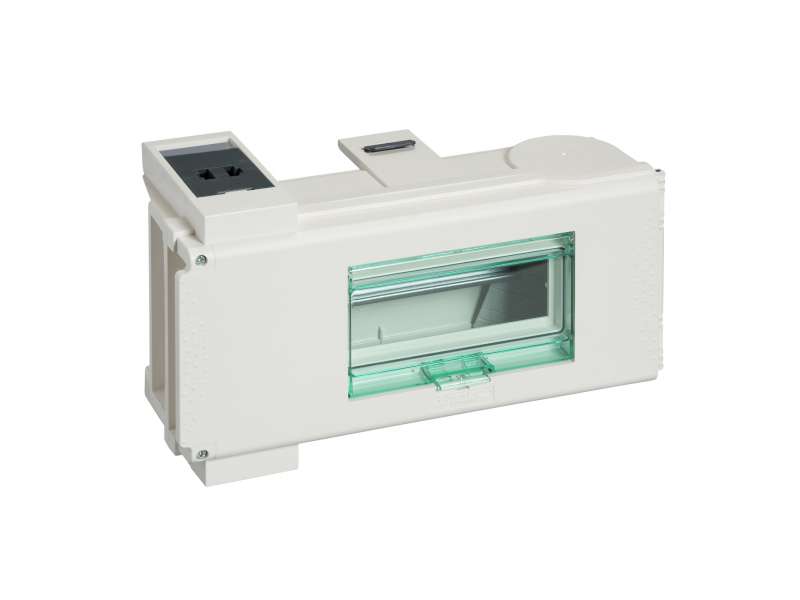

Schneider Electric Canalis - utična kutija za modularni uređaj- 63 A - 8 modula od 18 mm - 3L + PEN
TAP OFF UNIT 63A 8 MODULES...
VAT-exclusive price: 15.354,00 |
VAT-inclusive price: 18.424,80 |
TAP OFF UNIT 63A 8 MODULES
| range of product | Canalis |
|---|---|
| range compatibility |
KS busbar trunking KT busbar trunking |
| product or component type | Tap-off unit |
| busbar trunking compatibility |
Canalis KS busbar trunkingplug-in Canalis KT busbar trunking with KS type plug-in |
| [Ie] rated operational current | 63 A |
| protection type | Circuit breaker: miniature circuit breaker (MCB) |
| mounting mode | Plug-in with fixed polarity |
| tap-off unit polarity | 3L+PEN |
| colour | White (RAL 9001) |
| device application | Medium power distribution |
|---|---|
| provided equipment | Circuit-breaker to be ordered separately |
| [Ue] rated operational voltage | 230...690 V depending on protective device |
| [Uimp] rated impulse withstand voltage | 6.8 kV |
| [Ui] rated insulation voltage |
400 V depending on protective device 500 V depending on protective device 690 V depending on protective device |
| network frequency | 50/60 Hz |
| electrical connection |
Lugs - ISO63 16 mm² flexible Lugs - ISO63 16 mm² rigid |
| door/cover opening side | Right |
| tap-off unit disconnection mode | By opening the door |
| standards |
IEC 61439-6 IEC 61439-1 |
| body material | Plastic |
| 18 mm pitches | 8 |
| width | 444 mm |
| depth | 133 mm |
| depth (door open) | 432.5 mm |
| height | 220 mm |
| net weight | 2.4 kg |
| earthing system | TN-C |
|---|---|
| IP degree of protection | IP55 conforming to IEC 60529 |
| IK degree of protection | IK08 conforming to IEC 62262 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 1.997 kg |
| Package 1 Height | 16 cm |
| Package 1 width | 20.3 cm |
| Package 1 Length | 35.7 cm |
| Unit Type of Package 2 | P12 |
| Number of Units in Package 2 | 38 |
| Package 2 Weight | 100.34 kg |
| Package 2 Height | 120 cm |
| Package 2 width | 80 cm |
| Package 2 Length | 195 cm |
| Sustainable offer status | Green Premium product |
|---|---|
| REACh Regulation | REACh Declaration |
| REACh free of SVHC | Yes |
| EU RoHS Directive |
Compliant
EU RoHS Declaration |
| Mercury free | Yes |
| RoHS exemption information | Yes |
| China RoHS Regulation |
China RoHS declaration
Product out of China RoHS scope. Substance declaration for your information
|
| Environmental Disclosure | Product Environmental Profile |
| Halogen content performance | Halogen free product |
| Warranty | 18 months |
|---|
-
Canalis KS KSB63SM58
