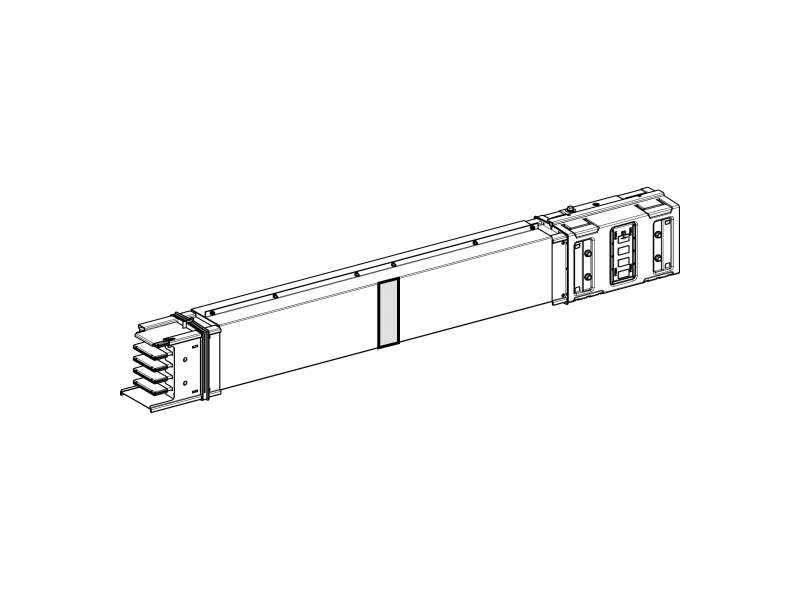

Schneider Electric CANALIS - RAVNI VODNI DEO - PO PORUDŽBINI SA POŽARNOM BARIJEROM - 630A
CANALIS - STRAIGHT LENGTH - MADE-TO-MESURE WITH FIRE BARRIER - 630A...
VAT-exclusive price: 276.558,00 |
VAT-inclusive price: 331.869,60 |
CANALIS - STRAIGHT LENGTH - MADE-TO-MESURE WITH FIRE BARRIER - 630A
range of product | Canalis |
---|---|
product name | KS |
offer type | Missing link |
product or component type | Busbar trunking |
busbar description |
Transport length Fire barrier |
BAR MATERIAL | Aluminium |
device application | Medium power distribution |
[Ie] rated operational current | 630 A at 35 °C |
number of tap-off outlets | 0 |
[Ue] rated operational voltage | 230...690 V |
---|---|
network frequency | 50/60 Hz |
[Uimp] rated impulse withstand voltage | 8 kV |
[Ui] rated insulation voltage | 690 V |
[Icw] rated short-time withstand current | 32.1 kA |
[Ipk] rated peak withstand current | 67.5 kA |
electrical connection | Lubricated sliding contact |
radiated magnetic field | 0.89 µT |
thermal stress limit | 1225 kA².s |
maximum voltage drop |
<0.011 V with power factor = 1 at 50 Hz with 1A for 100 m long <0.013 V with power factor = 0.9 at 50 Hz with 1A for 100 m long <0.013 V with power factor = 0.8 at 50 Hz with 1A for 100 m long <0.012 V with power factor = 0.7 at 50 Hz with 1A for 100 m long |
mounting mode | By screws |
mounting position | Horizontal |
neutral position | Up |
busbar trunking polarity | 3L + N + PE |
THDI |
0…15 % 630 A 15…33 % 500 A 33…100 % 400 A |
dimension type | Made to measure |
width | 146 mm |
depth | 113 mm |
length | 800…1900 mm |
colour | White (RAL 9001) |
net weight | 30 kg |
IP degree of protection | IP55 conforming to IEC 60529 |
---|---|
IK degree of protection | IK08 conforming to IEC 62262 |
standards |
IEC 61439-6 IEC 60439-2 |
Unit Type of Package 1 | PCE |
---|---|
Number of Units in Package 1 | 1 |
Package 1 Weight | 36.35 kg |
Package 1 Height | 12.2 cm |
Package 1 width | 17.3 cm |
Package 1 Length | 247.8 cm |
Sustainable offer status | Green Premium product |
---|---|
REACh Regulation | REACh Declaration |
REACh free of SVHC | Yes |
EU RoHS Directive |
Compliant
EU RoHS Declaration |
Toxic heavy metal free | Yes |
Mercury free | Yes |
RoHS exemption information | Yes |
China RoHS Regulation |
China RoHS declaration
Pro-active China RoHS declaration (out of China RoHS legal scope)
|
Environmental Disclosure | Product Environmental Profile |
WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
