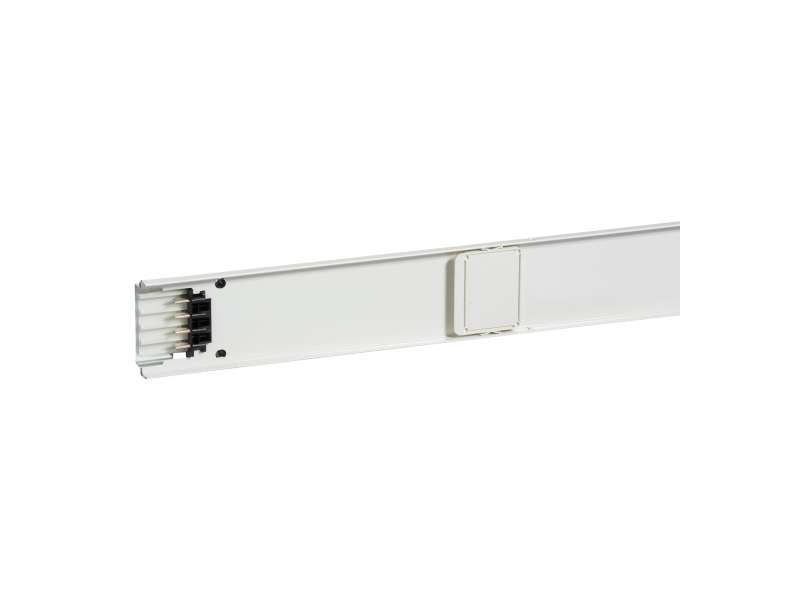

Schneider Electric Canalis-ravni vodni deo- 40A - 6 otcepnih utičnica - 3L+N+PE - 3m - komunikacija
STRAIGHT LENGTH 40 A...
VAT-exclusive price: 41.124,00 |
VAT-inclusive price: 49.348,80 |
STRAIGHT LENGTH 40 A
| range of product | Canalis |
|---|---|
| product name | KN |
| product or component type | Busbar trunking |
| busbar description | Distribution length |
| device application | Low power distribution |
| [Ie] rated operational current | 40 A at 35 °C |
| busbar trunking polarity |
3L + N + PE 3L + PEN |
| number of tap-off outlets | 6 |
| length | 3 m |
| [Ue] rated operational voltage | 230...500 V |
|---|---|
| network frequency | 50/60 Hz |
| [Uimp] rated impulse withstand voltage | 6 kV |
| [Ui] rated insulation voltage | 500 V |
| [Icw] rated short-time withstand current | 0.5 kA |
| [Ipk] rated peak withstand current | 6 kA |
| electrical connection | Lubricated sliding contact |
| radiated magnetic field | 0.039 µT |
| thermal stress limit | 290 kA².s |
| THDI |
0…15 % 40 A 15…33 % 32 A 33…100 % 28 A |
| maximum voltage drop |
<0.516 V with power factor = 1 at 50 Hz with 1A for 100 m long <0.474 V with power factor = 0.9 at 50 Hz with 1A for 100 m long <0.425 V with power factor = 0.8 at 50 Hz with 1A for 100 m long <0.376 V with power factor = 0.7 at 50 Hz with 1A for 100 m long |
| mounting mode | By screws |
| neutral position | Up |
| number of circuits | 1 |
| control type | Communicating |
| standards |
IEC 61439-6 IEC 60439-2 |
| width | 92 mm |
| depth | 27.5 mm |
| colour | White (RAL 9001) |
| net weight | 5.6 kg |
| IP degree of protection | IP55 conforming to IEC 60529 |
|---|---|
| IK degree of protection | IK08 conforming to IEC 62262 |
| ambient air temperature for operation |
0…35 °C (100 % of In) 35…40 °C (97 % of In) 40…45 °C (94 % of In) 45…50 °C (91 % of In) 50…55 °C (87 % of In) |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 5 kg |
| Package 1 Height | 3.5 cm |
| Package 1 width | 10 cm |
| Package 1 Length | 310 cm |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 4 |
| Package 2 Weight | 21 kg |
| Package 2 Height | 11 cm |
| Package 2 width | 16 cm |
| Package 2 Length | 314 cm |
| Unit Type of Package 3 | PAL |
| Number of Units in Package 3 | 48 |
| Package 3 Weight | 265 kg |
| Package 3 Height | 45 cm |
| Package 3 width | 64 cm |
| Package 3 Length | 320 cm |
| Sustainable offer status | Green Premium product |
|---|---|
| REACh Regulation | REACh Declaration |
| REACh free of SVHC | Yes |
| EU RoHS Directive |
Compliant
EU RoHS Declaration |
| Toxic heavy metal free | Yes |
| Mercury free | Yes |
| RoHS exemption information | Yes |
| China RoHS Regulation |
China RoHS declaration
Pro-active China RoHS declaration (out of China RoHS legal scope)
|
| Environmental Disclosure | Product Environmental Profile |
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
| Halogen content performance | Halogen free product |
| Warranty | 18 months |
|---|
-
Canalis KN KNT40ED4306
