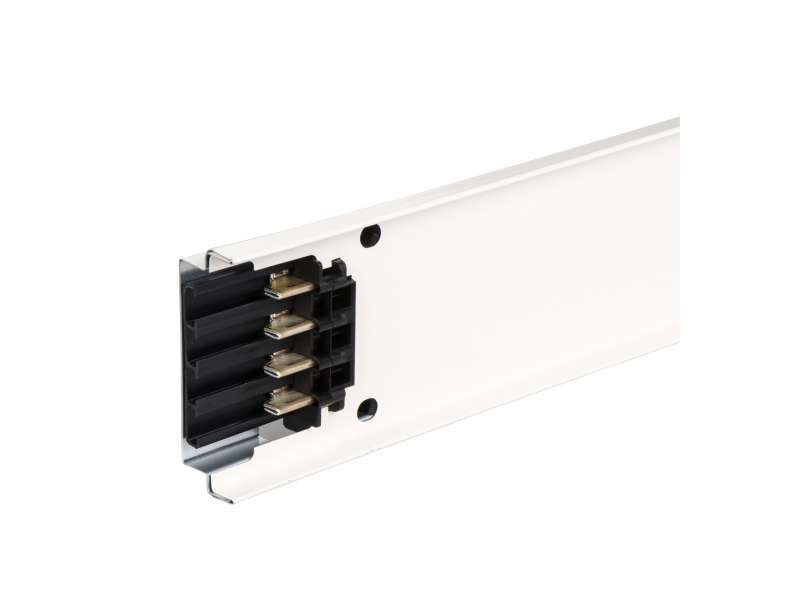

Schneider Electric Canalis - ravni vodni deo - 100 A - 3 otcepne utičnice - 3L+N+PE - 2m - beli
STRAIGHT LENGTH100 A...
VAT-exclusive price: 30.302,00 |
VAT-inclusive price: 36.362,40 |
STRAIGHT LENGTH100 A
| range of product | Canalis |
|---|---|
| product name | KN |
| product or component type | Busbar trunking |
| busbar description | Distribution length |
| device application | Low power distribution |
| [Ie] rated operational current | 100 A at 35 °C |
| busbar trunking polarity |
3L + PEN 3L + N + PE |
| number of tap-off outlets | 3 |
| length | 3 m |
| [Ue] rated operational voltage | 230...500 V |
|---|---|
| network frequency | 50/60 Hz |
| [Uimp] rated impulse withstand voltage | 6 kV |
| [Ui] rated insulation voltage | 500 V |
| [Icw] rated short-time withstand current | 2.8 kA |
| [Ipk] rated peak withstand current | 14 kA |
| electrical connection | Lubricated sliding contact |
| radiated magnetic field | 0.106 µT |
| thermal stress limit | 8000 kA².s |
| THDI |
0…15 % 100 A 15…33 % 80 A 33…100 % 63 A |
| maximum voltage drop |
<0.088 V with power factor = 1 at 50 Hz with 1A for 100 m long <0.089 V with power factor = 0.9 at 50 Hz with 1A for 100 m long <0.084 V with power factor = 0.8 at 50 Hz with 1A for 100 m long <0.077 V with power factor = 0.7 at 50 Hz with 1A for 100 m long |
| mounting mode | By screws |
| neutral position | Up |
| number of circuits | 1 |
| control type | Without |
| standards |
IEC 61439-6 IEC 60439-2 |
| width | 92 mm |
| depth | 27.5 mm |
| colour | White (RAL 9001) |
| net weight | 7.3 kg |
| IP degree of protection | IP55 conforming to IEC 60529 |
|---|---|
| IK degree of protection | IK08 conforming to IEC 62262 |
| ambient air temperature for operation |
0…35 °C (100 % of In) 35…40 °C (97 % of In) 40…45 °C (94 % of In) 45…50 °C (91 % of In) 50…55 °C (87 % of In) |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 5 kg |
| Package 1 Height | 4 cm |
| Package 1 width | 10.1 cm |
| Package 1 Length | 310 cm |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 4 |
| Package 2 Weight | 21 kg |
| Package 2 Height | 9.7 cm |
| Package 2 width | 15.5 cm |
| Package 2 Length | 314 cm |
| Unit Type of Package 3 | PAL |
| Number of Units in Package 3 | 48 |
| Package 3 Weight | 363 kg |
| Package 3 Height | 43.7 cm |
| Package 3 width | 68 cm |
| Package 3 Length | 320 cm |
| Sustainable offer status | Green Premium product |
|---|---|
| REACh Regulation | REACh Declaration |
| REACh free of SVHC | Yes |
| EU RoHS Directive |
Compliant
EU RoHS Declaration |
| Toxic heavy metal free | Yes |
| Mercury free | Yes |
| RoHS exemption information | Yes |
| China RoHS Regulation |
China RoHS declaration
Pro-active China RoHS declaration (out of China RoHS legal scope)
|
| Environmental Disclosure | Product Environmental Profile |
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
| Halogen content performance | Halogen free product |
| Warranty | 18 months |
|---|
-
Canalis KN KNA100ED4303
