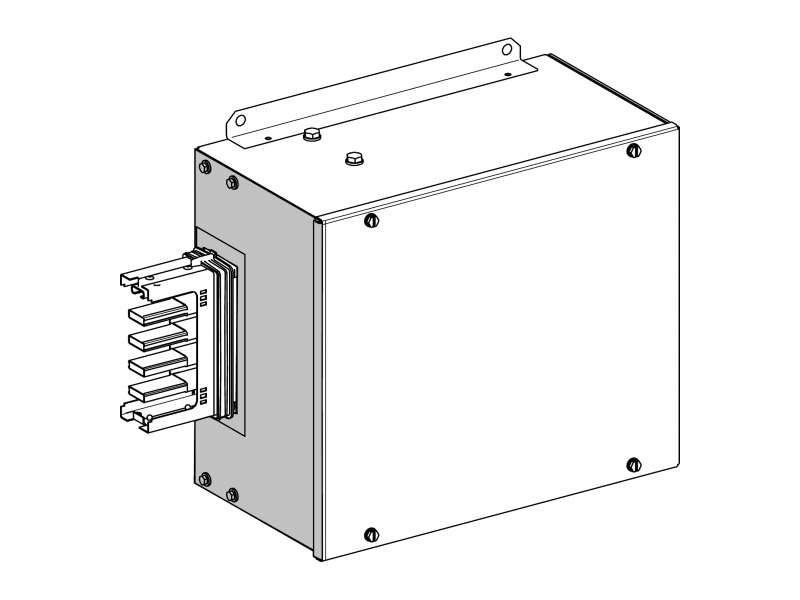

Schneider Electric Canalis - napojna jedinica za KSA - 250 A - montaža sleva ili zdesna
END FEED BOX 250 A...
VAT-exclusive price: 96.939,00 |
VAT-inclusive price: 116.326,80 |
END FEED BOX 250 A
| range of product | Canalis |
|---|---|
| product name | KS |
| product or component type | Feed unit |
| BAR MATERIAL | Aluminium |
| product compatibility | FL21 gland plate |
| [Ie] rated operational current |
100 A 160 A 250 A |
| mounting location |
Right Left |
| colour | White (RAL 9001) |
| protection type | Without protection |
|---|---|
| [Ue] rated operational voltage | 230...690 V |
| connections - terminals |
Lug for 240 mm² flexible Lug for 240 mm² rigid |
| control type | Without |
| number of circuits | 1 |
| provided equipment | End cover |
| mounting mode | By screws |
| mounting support | Busbar |
| standards |
IEC 60439-2 IEC 61439-6 |
| width | 501 mm |
| depth | 173.5 mm |
| height | 308 mm |
| body material | Metal |
| net weight | 7.2 kg |
| IP degree of protection | IP55 conforming to IEC 60529 |
|---|---|
| IK degree of protection | IK08 conforming to IEC 62262 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 9.9 kg |
| Package 1 Height | 18 cm |
| Package 1 width | 32 cm |
| Package 1 Length | 50.6 cm |
| Unit Type of Package 2 | P06 |
| Number of Units in Package 2 | 6 |
| Package 2 Weight | 67.9 kg |
| Package 2 Height | 60 cm |
| Package 2 width | 80 cm |
| Package 2 Length | 60 cm |
| Sustainable offer status | Green Premium product |
|---|---|
| REACh Regulation | REACh Declaration |
| REACh free of SVHC | Yes |
| EU RoHS Directive |
Compliant
EU RoHS Declaration |
| Toxic heavy metal free | Yes |
| Mercury free | Yes |
| RoHS exemption information | Yes |
| China RoHS Regulation |
China RoHS declaration
Pro-active China RoHS declaration (out of China RoHS legal scope)
|
| Environmental Disclosure | Product Environmental Profile |
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
| Halogen content performance | Halogen free product |
| Warranty | 18 months |
|---|
-
Canalis KS KSA250AB4
