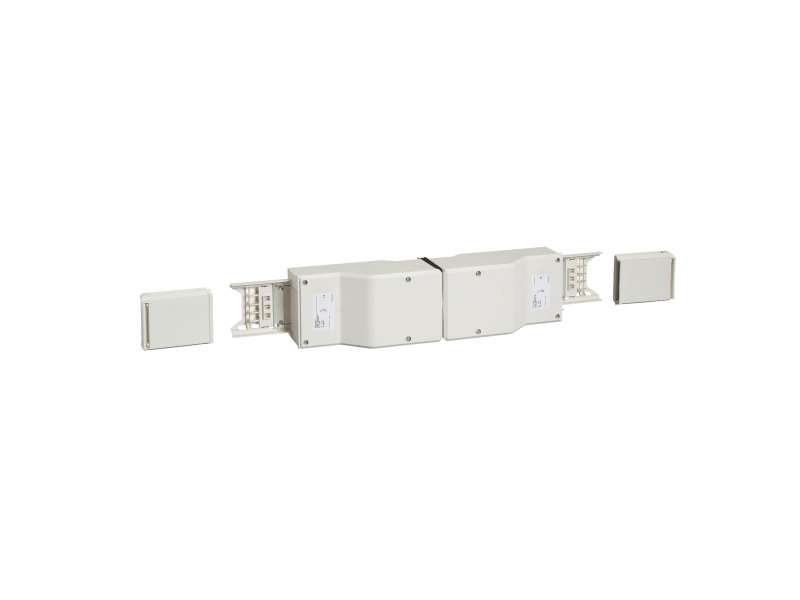

Schneider Electric Canalis - napojna jedinica za KNT - 100 A - centralna - komunikacija
CENTER FEED UNIT 100 A...
VAT-exclusive price: 75.497,00 |
VAT-inclusive price: 90.596,40 |
CENTER FEED UNIT 100 A
| range of product | Canalis |
|---|---|
| product name | KN |
| product or component type | Feed unit |
| BAR MATERIAL | Aluminium |
| product compatibility | KN |
| [Ie] rated operational current | 100 A |
| mounting location | Central |
| colour | White (RAL 9001) |
| protection type | Without protection |
|---|---|
| [Ue] rated operational voltage | 230...500 V |
| connections - terminals |
Lug for 35 mm² flexible Lug for 35 mm² rigid |
| control type | Communicating |
| number of circuits | 1 |
| provided equipment | End cover |
| mounting mode | By clips |
| mounting support | Busbar |
| standards |
IEC 61439-6 IEC 60439-2 |
| width | 685 mm |
| depth | 112 mm |
| height | 127 mm |
| net weight | 2.94 kg |
| IP degree of protection | IP55 conforming to IEC 60529 |
|---|---|
| IK degree of protection | IK08 conforming to IEC 62262 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 3.14 kg |
| Package 1 Height | 11.2 cm |
| Package 1 width | 12.7 cm |
| Package 1 Length | 68.5 cm |
| Sustainable offer status | Green Premium product |
|---|---|
| REACh Regulation | REACh Declaration |
| REACh free of SVHC | Yes |
| EU RoHS Directive |
Compliant
EU RoHS Declaration |
| Toxic heavy metal free | Yes |
| Mercury free | Yes |
| RoHS exemption information | Yes |
| China RoHS Regulation |
China RoHS declaration
Pro-active China RoHS declaration (out of China RoHS legal scope)
|
| Environmental Disclosure | Product Environmental Profile |
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
| Halogen content performance | Halogen free product |
| Warranty | 18 months |
|---|
-
Canalis KN KNT100ABT4
