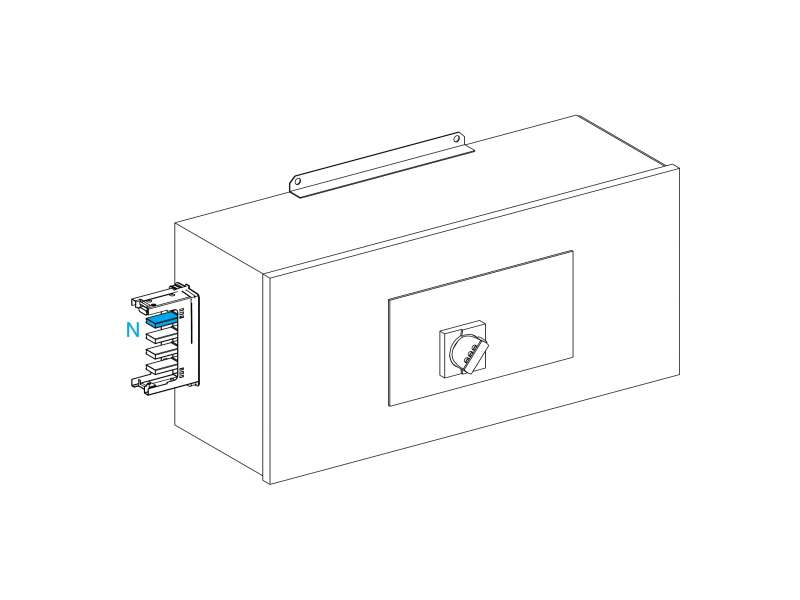

Schneider Electric Canalis - napojna jed.zaštićena sa NSX250 N H ili L kriva - 250 A -desna montaža
END FEED BOX 250A RIGHT SIDE CIRCUIT BREAKER PROTECTION...
VAT-exclusive price: 191.940,00 |
VAT-inclusive price: 230.328,00 |
END FEED BOX 250A RIGHT SIDE CIRCUIT BREAKER PROTECTION
| range of product | Canalis |
|---|---|
| product name | KS |
| product or component type | Feed unit |
| BAR MATERIAL | Aluminium |
| product compatibility |
KS NSX250 not included |
| [Ie] rated operational current | 250 A |
| busbar trunking polarity | 3L + PE |
| mounting location | Right |
| colour | White (RAL 9001) |
| protection type | Circuit breaker protection |
|---|---|
| [Ue] rated operational voltage | 230...690 V |
| connections - terminals | Lug |
| control type | Rotary handle |
| number of circuits | 1 |
| mounting support | Busbar |
| standards |
IEC 60439-2 IEC 61439-6 |
| width | 742 mm |
| depth | 276 mm |
| height | 353 mm |
| body material | Metal |
| net weight | 17 kg |
| IP degree of protection | IP55 conforming to IEC 60529 |
|---|---|
| IK degree of protection | IK08 conforming to IEC 62262 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 20.41 kg |
| Package 1 Height | 21.8 cm |
| Package 1 width | 35.3 cm |
| Package 1 Length | 74.7 cm |
| Sustainable offer status | Green Premium product |
|---|---|
| REACh Regulation | REACh Declaration |
| REACh free of SVHC | Yes |
| EU RoHS Directive |
Compliant
EU RoHS Declaration |
| Toxic heavy metal free | Yes |
| Mercury free | Yes |
| RoHS exemption information | Yes |
| China RoHS Regulation |
China RoHS declaration
Pro-active China RoHS declaration (out of China RoHS legal scope)
|
| Environmental Disclosure | Product Environmental Profile |
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
| Halogen content performance | Halogen free product |
| Warranty | 18 months |
|---|
-
Canalis KS KSA250ABDD5
