Schneider Electric C120H - automatski prekidač - 1P - 100A - B kriva; A9N18403
C120H - circuit breaker - 1P - 100A - B curve...
VAT-exclusive price: 3.484,00 |
VAT-inclusive price: 4.180,80 |

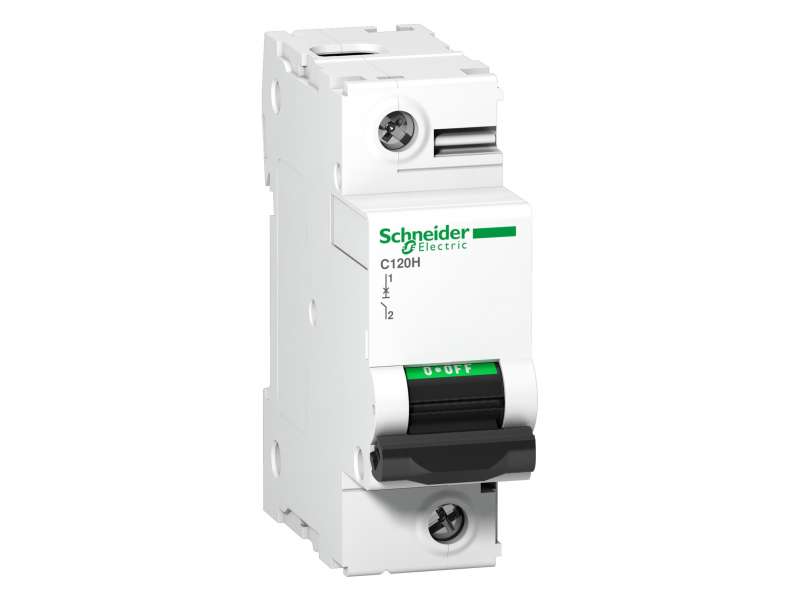

C120H - circuit breaker - 1P - 100A - B curve
| range of product |
C120
|
|
|---|---|---|
| range |
Acti 9
|
|
| product name |
C120
|
|
| product or component type |
Miniature circuit-breaker
|
|
| device short name |
C120H
|
|
| device application |
Distribution
|
|
| poles description |
1P
|
|
| number of protected poles |
1
|
|
| [In] rated current |
100 A at 30 °C
|
|
| network type |
AC
|
|
| trip unit technology |
Thermal-magnetic
|
|
| curve code |
B
|
|
| breaking capacity |
30 kA Icu at 130 V AC 50/60 Hz conforming to EN/IEC 60947-2
20 kA Icu at 12 V DC conforming to EN/IEC 60947-2 20 kA Icu at 125 V DC conforming to EN/IEC 60947-2 15 kA Icu at <= 144 V DC conforming to EN/IEC 60947-2 15 kA Icu at 220...240 V AC 50/60 Hz conforming to EN/IEC 60947-2 15000 A Icn at 230...400 V AC 50/60 Hz conforming to EN/IEC 60898-1 4.5 kA Icu at 380...415 V AC 50/60 Hz IT conforming to EN/IEC 60947-2 30 kA Icu at 12 V AC 50/60 Hz conforming to EN/IEC 60947-2 |
|
| suitability for isolation |
Yes conforming to IEC 60947-2
|
| network frequency |
50/60 Hz
|
|
|---|---|---|
| [Ue] rated operational voltage |
380...415 V AC 50/60 Hz
125 V DC <= 144 V DC 12 V DC 220...240 V AC 50/60 Hz 230...400 V AC 50/60 Hz 130 V AC 50/60 Hz 12 V AC 50/60 Hz |
|
| magnetic tripping limit |
3...5 x In
|
|
| [Ics] rated service breaking capacity |
15 kA 50 % conforming to EN/IEC 60947-2 - 130 V AC 50/60 Hz
7.5 kA 50 % conforming to EN/IEC 60947-2 - 220...240 V AC 50/60 Hz 2.25 kA 50 % conforming to EN/IEC 60947-2 - 380...415 V AC 50/60 Hz 7500 A 50 % conforming to EN/IEC 60898-1 - 230...400 V AC 50/60 Hz 20 kA 100 % conforming to EN/IEC 60947-2 - 12 V DC 15 kA 100 % conforming to EN/IEC 60947-2 - <= 144 V DC 20 kA 100 % conforming to EN/IEC 60947-2 - 125 V DC 15 kA 50 % conforming to EN/IEC 60947-2 - 12 V AC 50/60 Hz |
|
| limitation class |
3 conforming to EN/IEC 60947-2
|
|
| [Ui] rated insulation voltage |
500 V AC 50/60 Hz conforming to EN/IEC 60947-2
|
|
| [Uimp] rated impulse withstand voltage |
6 kV conforming to EN/IEC 60947-2
|
|
| contact position indicator |
Yes
|
|
| control type |
Toggle
|
|
| local signalling |
ON/OFF indication
|
|
| mounting mode |
Clip-on
|
|
| mounting support |
35 mm symmetrical DIN rail
|
|
| comb busbar and distribution block compatibility |
NO
|
|
| 9 mm pitches |
3
|
|
| height |
81 mm
|
|
| width |
27 mm
|
|
| depth |
73 mm
|
|
| net weight |
0.205 kg
|
|
| colour |
White
|
|
| mechanical durability |
20000 cycles
|
|
| electrical durability |
5000 cycles conforming to IEC 60947-2
|
|
| connections - terminals |
Tunnel type terminals1…50 mm² rigid
Tunnel type terminals1.5…35 mm² flexible |
|
| wire stripping length |
15 mm
|
|
| tightening torque |
3.5 N.m
|
|
| earth-leakage protection |
Without
|
| standards |
EN/IEC 60898-1
EN/IEC 60947-2 |
|
|---|---|---|
| product certifications |
EAC
|
|
| IP degree of protection |
IP20 conforming to IEC 60529
|
|
| pollution degree |
3 conforming to IEC 60947-2
|
|
| overvoltage category |
IV
|
|
| tropicalisation |
2 conforming to IEC 60068-1
|
|
| relative humidity |
95 % at 55 °C
|
|
| operating altitude |
2000 m
|
|
| ambient air temperature for operation |
-30…60 °C
|
|
| ambient air temperature for storage |
-40…70 °C
|
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
193 g
|
|
| Package 1 Height |
2.7 cm
|
|
| Package 1 width |
7.5 cm
|
|
| Package 1 Length |
8.5 cm
|
|
| Unit Type of Package 2 |
BB1
|
|
| Number of Units in Package 2 |
12
|
|
| Package 2 Weight |
2.384 kg
|
|
| Package 2 Height |
10 cm
|
|
| Package 2 width |
9 cm
|
|
| Package 2 Length |
33 cm
|
|
| Unit Type of Package 3 |
S03
|
|
| Number of Units in Package 3 |
72
|
|
| Package 3 Weight |
14.794 kg
|
|
| Package 3 Height |
30 cm
|
|
| Package 3 width |
30 cm
|
|
| Package 3 Length |
40 cm
|
| Sustainable offer status |
Green Premium product
|
|
|---|---|---|
| REACh free of SVHC |
Yes
|
|
| EU RoHS Directive |
Compliant
EU RoHS Declaration |
|
| Toxic heavy metal free |
Yes
|
|
| Mercury free |
Yes
|
|
| RoHS exemption information | ||
| China RoHS Regulation |
China RoHS declaration
Pro-active China RoHS declaration (out of China RoHS legal scope) |
|
| Environmental Disclosure | ||
| WEEE |
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
|
| Warranty |
18 months
|
|---|
-
