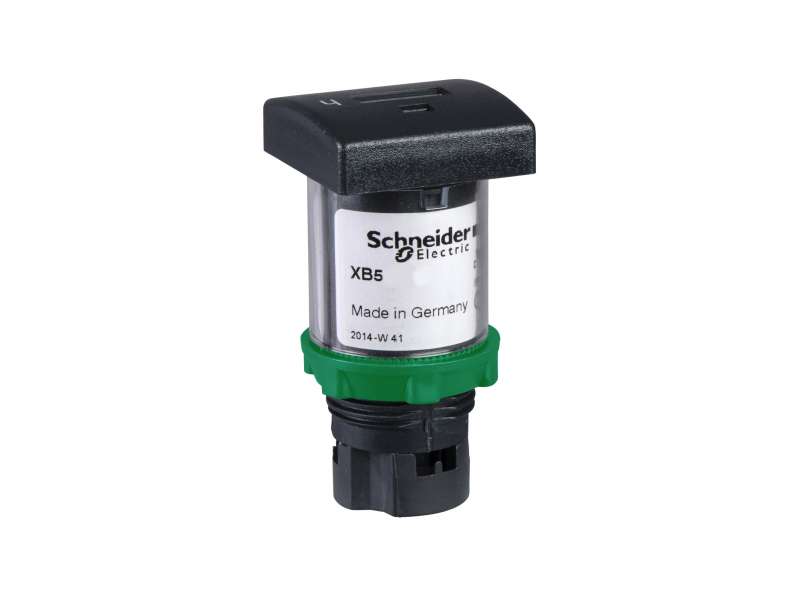

Schneider Electric Brojač radnih sati - mehanički 5 cifara - 230..240 V AC;XB5DSM
Hour counter, plastic, Ø22, mechanical 5 digit display, 230..240 V AC...
VAT-exclusive price: 18.973,00 |
VAT-inclusive price: 22.767,60 |
Hour counter, plastic, Ø22, mechanical 5 digit display, 230..240 V AC
| range of product |
Harmony XB5
|
|
|---|---|---|
| bezel material |
Dark grey plastic
|
|
| product or component type |
Hour counter
|
|
| mounting diameter |
22 mm
|
|
| reset |
Without
|
| [Us] rated supply voltage |
230...240 V +/- 10 %
|
|
|---|---|---|
| display digits |
5
|
|
| current consumption |
8 mA
|
|
| resistance to high pressure washer |
7000000 Pa at 55 °C, distance : 0.1 m
|
|
| mounting mode |
Flush-mounted
|
|
| mounting support |
Panel mounting
|
|
| height |
30 mm
|
|
| width |
30 mm
|
|
| depth |
60 mm
|
|
| device presentation |
Monolithic product
|
|
| net weight |
0.045 kg
|
| protective treatment |
TH
|
|
|---|---|---|
| ambient air temperature for storage |
-40…70 °C
|
|
| ambient air temperature for operation |
-25…70 °C
|
|
| electrical shock protection class |
Class II conforming to IEC 60536
|
|
| IP degree of protection |
IP66 conforming to IEC 60529
|
|
| NEMA degree of protection |
NEMA 4X
NEMA 13 |
|
| standards |
EN 60947-5-1
|
|
| product certifications |
CE
UL |
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
44 g
|
|
| Package 1 Height |
3.4 cm
|
|
| Package 1 width |
5.3 cm
|
|
| Package 1 Length |
8.8 cm
|
| Sustainable offer status |
Green Premium product
|
|
|---|---|---|
| REACh Regulation | ||
| REACh free of SVHC |
Yes
|
|
| EU RoHS Directive |
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration |
|
| Toxic heavy metal free |
Yes
|
|
| Mercury free |
Yes
|
|
| RoHS exemption information | ||
| China RoHS Regulation | ||
| Environmental Disclosure | ||
| WEEE |
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
|
| Warranty |
18 months
|
|---|
-
Harmony XB5 XB5DSM
